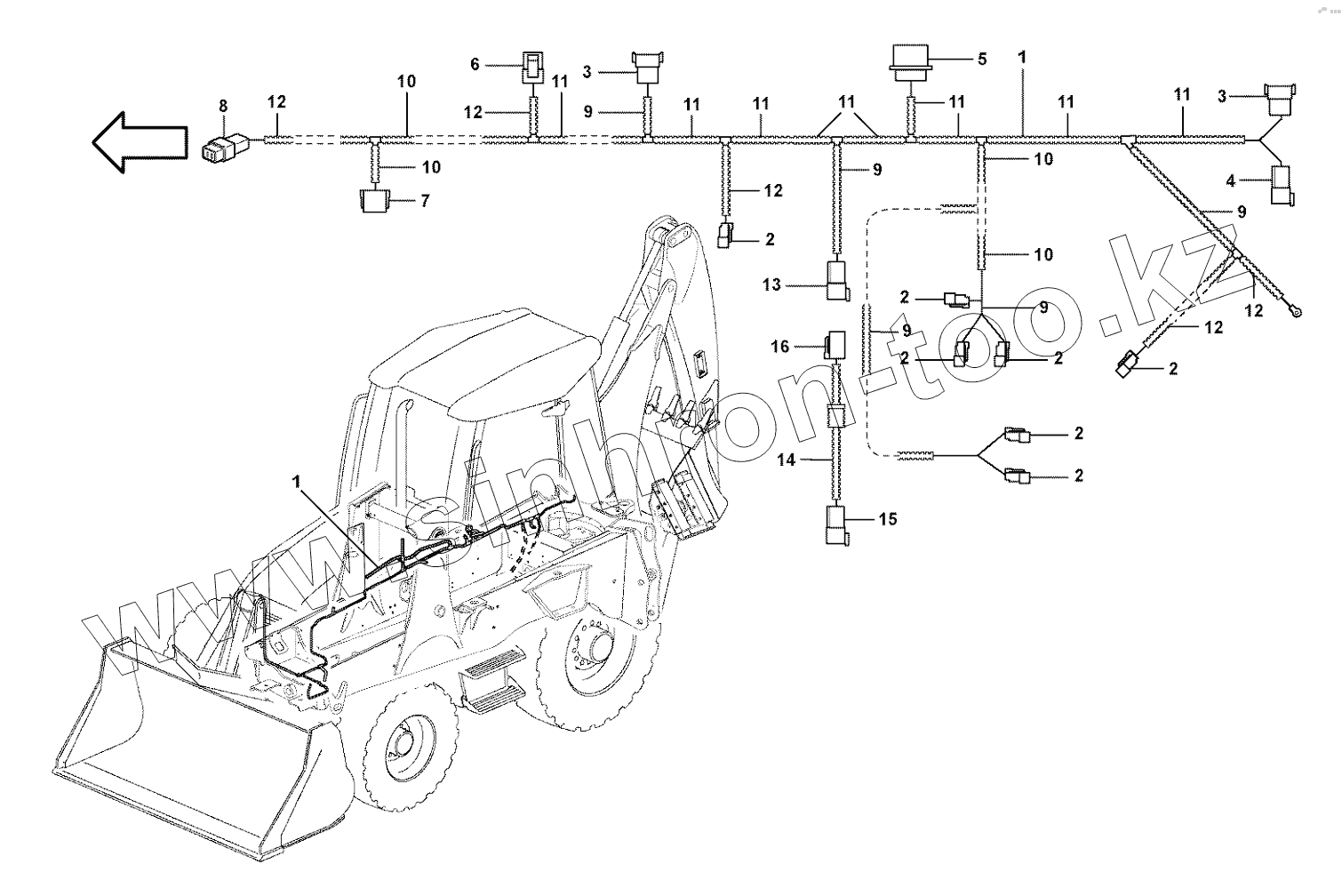

Каталог запасных частей к технике: Volvo BL61 Plus. Cable harness chassis
FloatPositionValve
FloatPositionValve
Valveblock
Valveblock
ValveHydrattachm
ValveHydrattachm
ValveHydrattachm
ValveHydrattachm
Handbrake
Handbrake
ValveBoomSuspen
ValveBoomSuspen
InstrumentpanelRi
InstrumentpanelRi
ValveAutomaticTilt
ValveAutomaticTilt
FuelGauge
FuelGauge
Cableharness,tran
Cableharness,tran
SwitchAutomaticTil
SwitchAutomaticTil
CableHarness,En
CableHarness,En
Horn
Horn
1
1
2
2
2
2
2
2
2
3
3
3
3
4
5
6
7
8
9
9
9
9
9
10
10
10
10
11
11
11
11
11
11
11
12
12
12
12
12
13
14
15
16
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| FloatPositionValve | FloatPositionValve | Float Position Valve | |
| Valveblock | Valveblock | Valve block | |
| ValveHydrattachm | ValveHydrattachm | Valve Hydr attachm | |
| ValveHydrattachm | ValveHydrattachm | Valve Hydr attachm | |
| Handbrake | Handbrake | Hand brake | |
| ValveBoomSuspen | ValveBoomSuspen | Valve Boom Suspen | |
| InstrumentpanelRi | InstrumentpanelRi | Instrument panel Ri | |
| ValveAutomaticTilt | ValveAutomaticTilt | Valve Automatic Tilt | |
| FuelGauge | FuelGauge | Fuel Gauge | |
| Cableharness,tran | Cableharness,tran | Cable harness,tran | |
| SwitchAutomaticTil | SwitchAutomaticTil | Switch Automatic Til | |
| CableHarness,En | CableHarness,En | Cable Harness, En | |
| Horn | Horn | Horn | |
| 1 | VOE11887382 | Wire harness | |
| 2 | VOE874955 | Insulator | |
| 3 | VOE14370889 | Spacer | |
| 3 | VOE874965 | Connector | |
| 4 | VOE874959 | Housing | |
| 4 | VOE14370885 | Spacer | |
| 5 | VOE11709788 | Connector | |
| 6 | VOE874654 | Rcpt Housing | |
| 7 | VOE11709766 | Connector | |
| 8 | Insulator | Insulator | |
| 9 | VOE4803748 | Hose | |
| 10 | VOE4803751 | Hose | |
| 11 | VOE4803752 | Hose | |
| 12 | VOE11170006 | Hose | |
| 13 | VOE874960 | Housing | |
| 14 | VOE11886560 | Cable | |
| 15 | VOE874959 | Housing | |
| 15 | VOE14370885 | Spacer | |
| 16 | VOE874955 | Insulator |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
