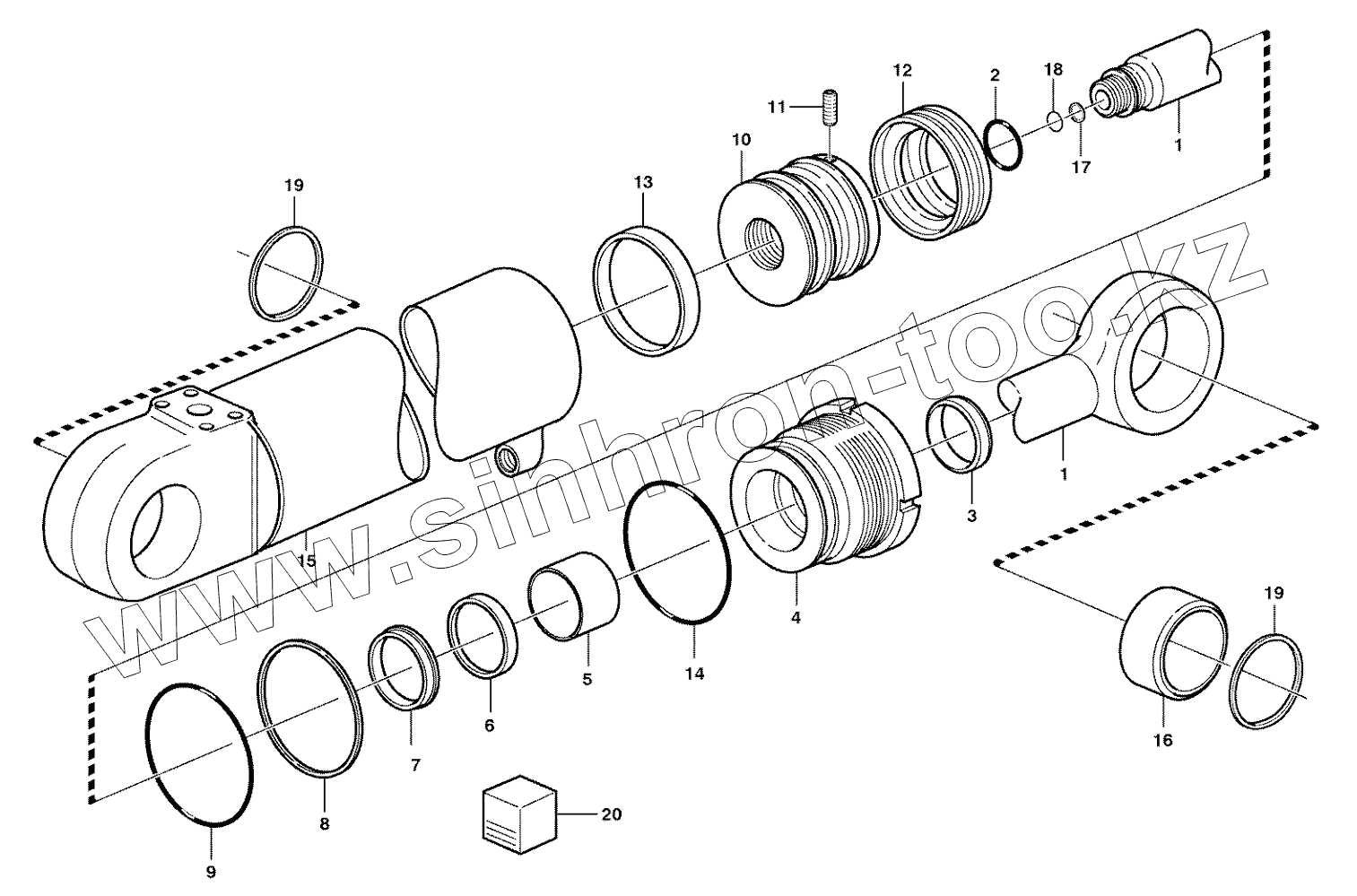

Boom cylinder
Dipper arm cylinder
Extendible dipper cylinder 11891273
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
Позиция на иллюстрации
Заводской номер детали
Название детали
VOE11881459
VOE11881459
Boom Cylinder
1
VOE11712451
Piston rod
2
O-ring
O-ring
3
Scraper
Scraper
4
VOE11709524
Pstn Rod Guide
5
GuideRing
Guide Ring
6
PistonRodSeal
Piston Rod Seal
7
LockRing
Lock Ring
8
Back-upring
Back-up ring
9
O-ring
O-ring
10
VOE11709525
Piston
11
Screw
Screw
12
Pistonseal
Piston seal
13
GuideRing
Guide Ring
14
O-ring
O-ring
15
Cylindertube
Cylinder tube
16
VOE11711135
Bushing
17
VOE11709526
Cushion Ring
18
VOE11709527
Lock Ring
19
VOE11890069
Seal
20
VOE11709528
Sealing Kit
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
