Каталог запасных частей к технике: Volvo BL61. Valve section

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано BL60 BL61 BL61 Plus BL70 BL71 BL71 Plus BL71B

Схема > Не выбрано Repair kits for engine Engine Cylinder head Cylinder block Crankcase ventilation Pistons Valve mechanism Timing gear casing and gears Crankshaft and related parts Flywheel housing Oil sump Engine mounting 11891076, 11891077 Engine mounting Lubricating oil system Oil filter Oil cooler Fuel pump Fuel tank, fuel pipes Fuel injection pump with fitting parts Regulator Fuel lines and injectors Inlet manifold and exhaust manifold Exhaust system, silencer Turbocharger with fitting parts Air filter with fitting parts Air filter Cooling system Cooling system incl. expansion tank Radiator with fitting parts Water pump and thermostat housing 11886395, 11887321 Fan and installation components Belt transmission Engine oil preheating Regulator control Hand throttle Shutdown device Battery box with fitting parts Alternator with assembling details Starter motor with assembling details Lighting Work lights Lighting, rear License plate lamp 11891001 Position pointer and anchorage, license plate 11298034 Inner lamp Horn Rotating beacon Windshield wiper, front 11298203, 11298204 Windshield wiper, rear 11298204 Windshield washer Battery cable and main swith Cable harness, engine Cable harness, transmission 11891076, 11891077 Cable Harness Lighting Cab Ext. 11298204, 11298208 Cable Harness cab int. roof Cable harness chassis Cable harness rear valve block Other cables Cable harness, tail light 11891000, 11891002, 11891050, 11891248, 11891249 S/N-10336 Cable harness, tail light 11891246, 11891247 SER NO -10020 Cable harness, tail light 11891246, 11891247 SER NO 10021- Cable harness, tail light 11891000, 11891002, 11891050, 11891248, 11891249 S/N 10337- Cable harness, panel SER NO -10020 Cable harness, panel Cable harness, control panel right SER NO -10020 Cable harness, control panel right SER NO 10021- Cable harness heater and air conditioning 11298204 Cable harness, hand tool hydraulic 11891333 Electrical distribut.unit and control unit Instrument panel Switch Anti-theft Kit 11891332 Foot switch and electric power outlet Torque converter with fitting parts Hydraulic transmission with fitting parts 11891077 Hydraulic transmission with fitting parts 11891076 Hydraulic transmission with fitting parts 11891077 S/N 10627- Oil filler and dipstick 11891077 S/N - 10626 Oil filler and dipstick 11891077 S/N 10627- Oil filler and dipstick 11891076 Oil pump 11891077 Oil pump 11891076 Oil pump 11891077 S/N 10627- Clutch shaft forward/reverse 11891077 Clutch shaft forward/reverse 11891077 S/N 10939 - Clutch shaft forward/reverse 11891076 Reverse and primary shaft 11891076, 11891077 Secondary shaft 11891077 S/N-10626 Secondary shaft 11891077 S/N 10627- Secondary shaft 11891076 Hydraulic clutch, 4wd 11891077 Shaft, four wheel drive 11891077 S/N 10627 - Gearshifting 11891077 Gearshifting 11891077 S/N 10627- Gearshifting 11891076 Range selector valve 11891076, 11891077 S/N - 10626 Range selector valve 11891076, 11891077 S/N 10627 - Solenoid valve 4wd 11891077 Gear selector, 4-wheel drive 11891077 Gear selector, 2-wheel drive 11891076 Gear box housing with fitting parts Propeller shaft, mounting Propeller shaft Planet axles with fitting parts Planet axles with fitting parts S/N 10627- Planetary axle, front 11891305 Planetary axle, front 11891531 Pinion 11891305 Pinion 11887361 Differential , front axle 11891305 Differential , front axle 11887361 Drive axle 11880004, 11891305 Wheel hub 11891305 Planetary gear 11891305 Front axle 11891306 Front axle 11891306, 11891496 Front axle 11880004 Wheel hub 11891306, 11891496 Planet shaft, rear 11891305, 11891306 Planet shaft, rear S/N 10627 - Pinion 11891305, 11891306 Pinion S/N 10627 - Differential. Rear 11891305, 11891306 Differential. Rear Wheel hub 11891305, 11891306 Hub reduction, rear axle S/N 10627 - Planetary gear 11891305, 11891306 Differential lock 11891305, 11891306 Differential lock S/N 10627- Differential lock 11880004 S/N 10627 - Oil cooler, transmission Brake operation rear 11891305, 11891306 Multi-disc brake, rear 11891305, 11891306 Multi-disc brake, rear S/N 10627 - Wheel brake, rear S/N - 10626 Wheel brake, rear S/N 10627 - Brake system 1298204, 11298208 Parking brake S/N 10627 - Parking brake Steering column with fitting parts Steering system 11891306, 11891496 Steering system 11880004 S/N 10627- Steering system 11891305 Control valve Frame Counterweight Wheel 11891531 Wheel 11891305, 11891306 Cab body: roof and floor panel Cab mounting block Engine hood Radiator casing Fenders 11298204, 11298208 Fender, front Splashguards, protective plates Step handle canop 11298208 Foot step Door with fitting parts 11298204 Rear view mirror Glass panes Windows 11298204 Interior components 11298233 Operator seat with fitting parts Operator's seat Heating system 11298204 Air ducts 11298233 Air ducts 11298204 Cab heater 11298204 Radiator and control Cab heater with connectors 11298204 Air conditioning 11298233 Evaporator, assembly 11298233 Assembly hoses: Evaparator, receiver drier, condenser. 11298233 Instrument panel Radio bracket Vandalism kit 11298032 Interior components Casing loader controls Toolbox Tool 11891152 Stop block holder 11891000, 11891050, 11891094 Sign plates and decals Decals WARNING Hydraulic oil tank Hydraulic system, suction line, filter 11891077 Hydraulic system, suction line, filter 11891076 Hydraulic system, return line S/N - 10626 Hydraulic system, return line S/N 10627- Hydraulic oil cooler S/N - 10626 Hydraulic oil cooler S/N 10627- Hydraulic system, feed line S/N - 10626 Hydraulic system, feed line S/N 10627 - Hydraulic system, hammer Pipes for hammer attachment 11891375 Hydraulic system, stabiliser legs Hydraulics loader (lift & tilt) Hydraulic system, excavator Hydraulic system loader Hydraulic system loader 11880004, S/N 10627 - Hydraulic system loader 11891414, S/N 10627 - Hydraulic system, boom 11891417, 11891418, S/N - 10626 Hydraulic system, boom 11880004, S/N 10627 - Hydraulic system dipper arm 11891417, 11891418, S/N - 10626 Hydraulic system dipper arm 11880004, S/N 10627 - Hydraulic system, bucket 11891417 Hydraulic system, bucket 11891418, S/N - 10626 Hydraulic system, bucket S/N 10627 - Hydraulic system extendible dipper arm 11891417 Hydraulic system, lock cylinder S/N - 10626 Hydraulic system, lock cylinder S/N 10627 - Hydraulic system, combi-bucket 11891414 Safety valve boom and dipper arm cylinder 11891150 Hydraulic system loader safety valves 11891151 Valve body Inlet valve Valve section Valve section Valve section Valve body Inlet valve Magnet valve 11891455 Valve section Valve section Exhaust valve Safety valve boom and dipper arm cylinder 11891150 Safety valve loader 11891151 Hydraulic pump 11891076, 11891077 Controls Loader controls Pedal 11891417 Hydraulic system, sideshift Optional hydraulic equipment 11891369, S/N - 10626 Optional hydraulic equipment 11891369, S/N 10627 - Boom suspension system 11891345 S/N - 10626 Boom suspension system 11891345 S/N 10627 - Attachment bracket, mechanical 11891299 Hydraulic attachment bracket digger 11891448, 11891449, 11891450, 11891451 Hydraulic attachment bracket digger (11891351, 11891362) Hydraulic attachment bracket digger Hydraulic attachment bracket 11891448, 11891450 Hydraulic cylinder, quick attachment 11891448, 11891450 Bucket, straight with teeth (BACKHOE) S/N - 10626 Bucket, straight with teeth (BACKHOE) S/N 10627 - Bucket, straight with teeth (BACKHOE) S/N - 10626 Bucket, straight with teeth (BACKHOE) S/N 10627 - Bucket, straight with teeth (LOADER) Bucket, straight lip without teeth Bucket, straight lip without teeth Multi-purpose bucket Multi-purpose bucket 11891541 Legal kit for Italy 11891002 Hydraulic cylinder 11891018 Transport bracket without front bucket 11891350 Fork arm Retainer for hammer Hammer 11891017 Lifting framework with assembly parts Pins for mounting bucket Lifting framework with assembly parts 11880004, S/N 10627 - Mechanical self levelling tilt mechanism 11891414, 11891415 Hydraulic cylinder, lifting 11891414, 11891415 Hydraulic cylinder 11891414, 11891415 Swing system Boom swing system Swing cylinder Lock cylinder Stabilisers Stabiliser cylinder Excavator boom, exendible dipper arm Boom and dipper arm Boom cylinder 11891417, 11891418 Dipper arm cylinder 11891417, 11891418 Bucket cylinder 11891417, 11891418 Extendible dipper cylinder 11891417

1

2

3

3

4

4

5

6

7

8

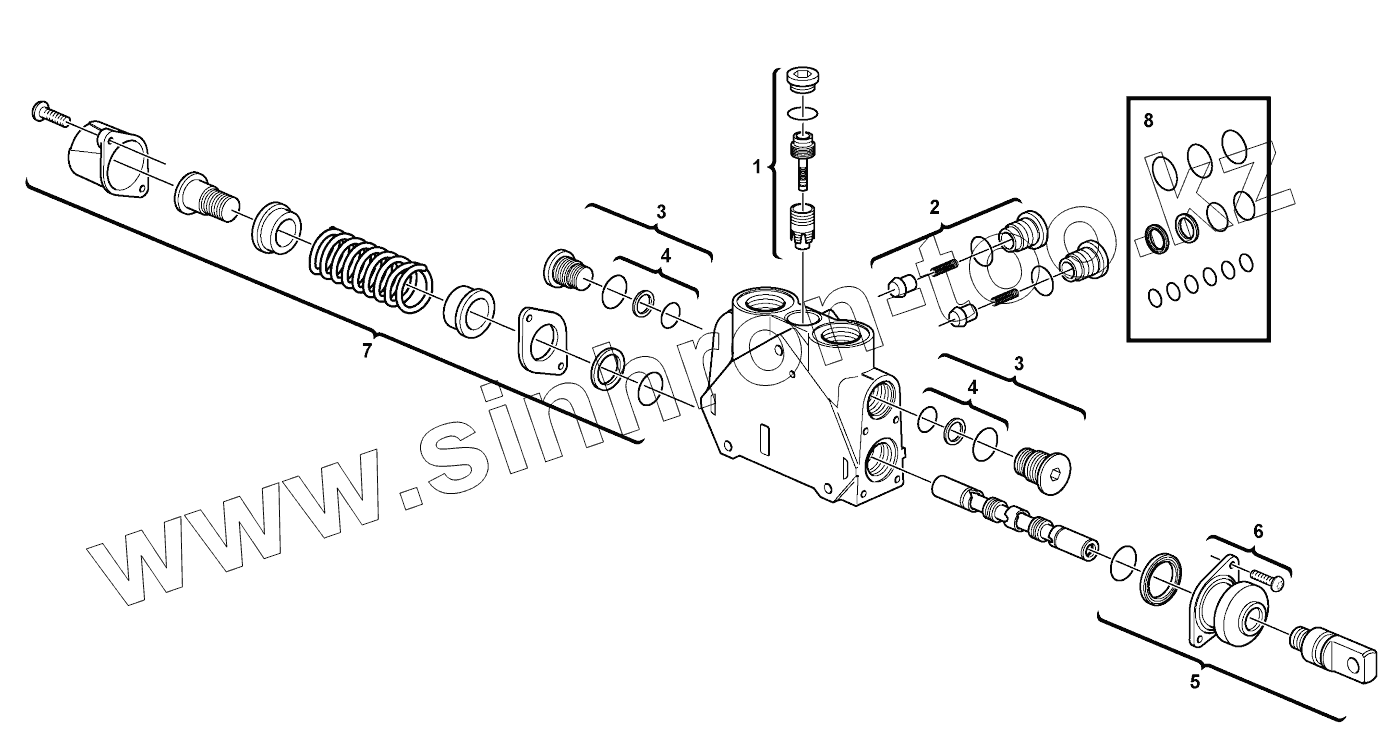

Позиция на иллюстрации	Заводской номер детали		Название детали
VOE11715274	VOE11715274		Direction Valve
Valve,Stabilisers	Valve,Stabilisers		Valve, Stabilisers
VOE11712885	VOE11712885		Direction Valve
Valve,Telescopecylinder	Valve,Telescopecylinder		Valve, Telescope cylinder
1	VOE11988526		Press Regulator
2	VOE11988527		Check valve
3	VOE11712886		Plug
4	VOE11988541		Sealing Kit
5	VOE11715275		Control
6	VOE11712580		Bellows Kit
7	VOE11715276		Control
7	VOE11988529		Control
8	VOE11715251		Sealing Kit
