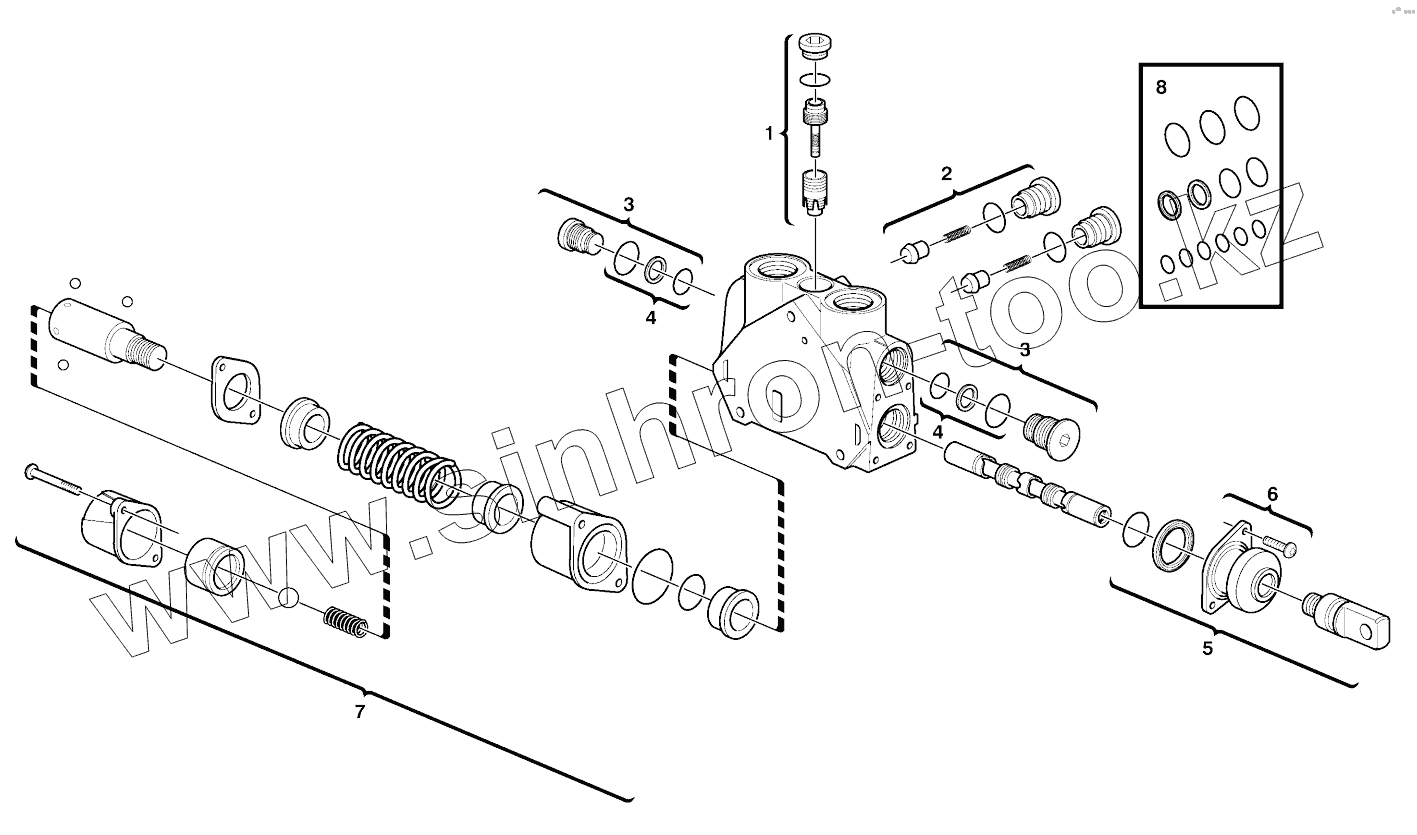

Позиция на иллюстрации	Заводской номер детали		Название детали
VOE11712894	VOE11712894		Direction Valve
Valve,Liftcylinder	Valve,Liftcylinder		Valve, Lift cylinder
1	VOE11988526		Press Regulator
2	VOE11988527		Check valve
3	VOE11712886		Plug
4	VOE11988541		Sealing Kit
5	VOE11715275		Control
6	VOE11712580		Bellows Kit
7	VOE11715296		Control
8	VOE11715251		Sealing Kit
