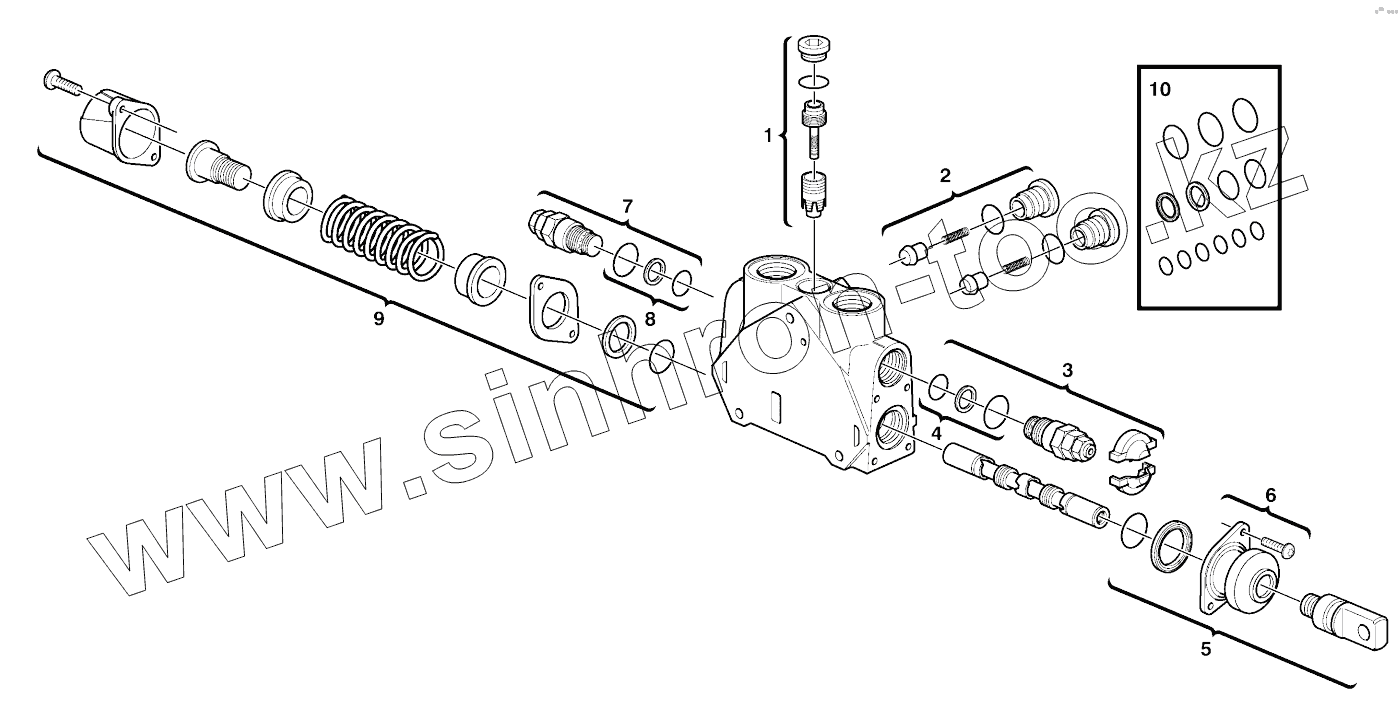

VOE11712896
1
2
3
4
5
6
7
8
9
10
Позиция на иллюстрации
Заводской номер детали
Название детали
VOE11712896
VOE11712896
Direction Valve
Valve,Bucketopening
Valve,Bucketopening
Valve, Bucket opening
1
VOE11988526
Press Regulator
2
VOE11988527
Check valve
3
VOE11988532
Relief valve
4
VOE11988541
Sealing Kit
5
VOE11715275
Control
6
VOE11712580
Bellows Kit
7
VOE11988533
Valve
8
VOE11988541
Sealing Kit
9
VOE11988529
Control
10
VOE11715251
Sealing Kit
