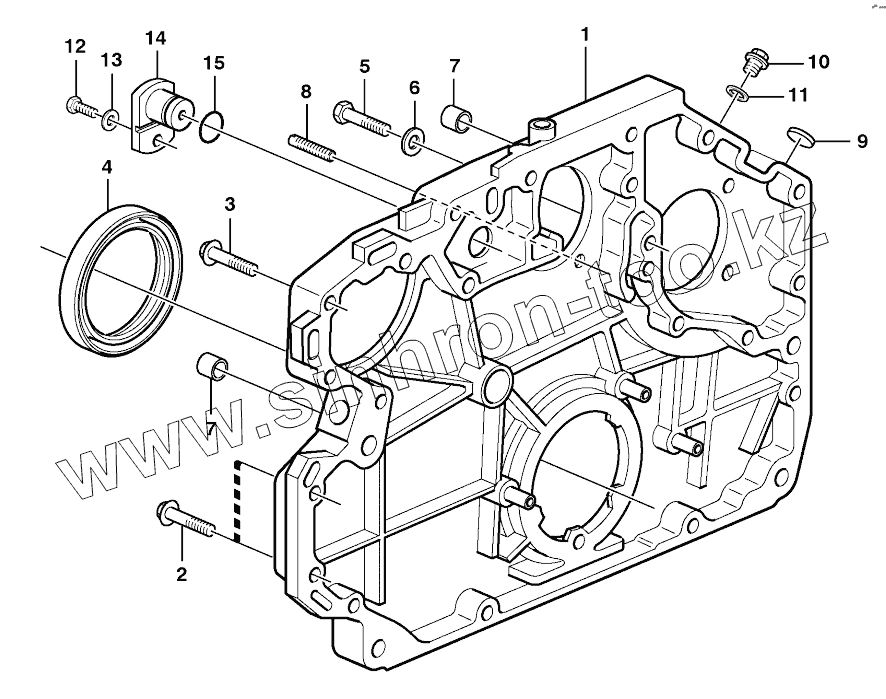

VOE20592820
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
Позиция на иллюстрации
Заводской номер детали
Название детали
VOE20592820
VOE20592820
Cover
1
VOE20555502
Tmg Gear Cover
2
VOE20412324
Screw
3
VOE20450801
Screw
4
VOE20459115
Crankshaft Seal
5
VOE20405653
Screw
6
VOE13955900
Washer
7
VOE20585971
Bushing
8
VOE20450795
Set Screw
9
VOE20405605
Cover
10
VOE20451012
Plug
11
VOE13947621
Plane Gasket
12
VOE20405706
Screw
13
VOE20459183
Washer
14
VOE20405553
Cover
15
VOE20459904
Sealing ring
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
