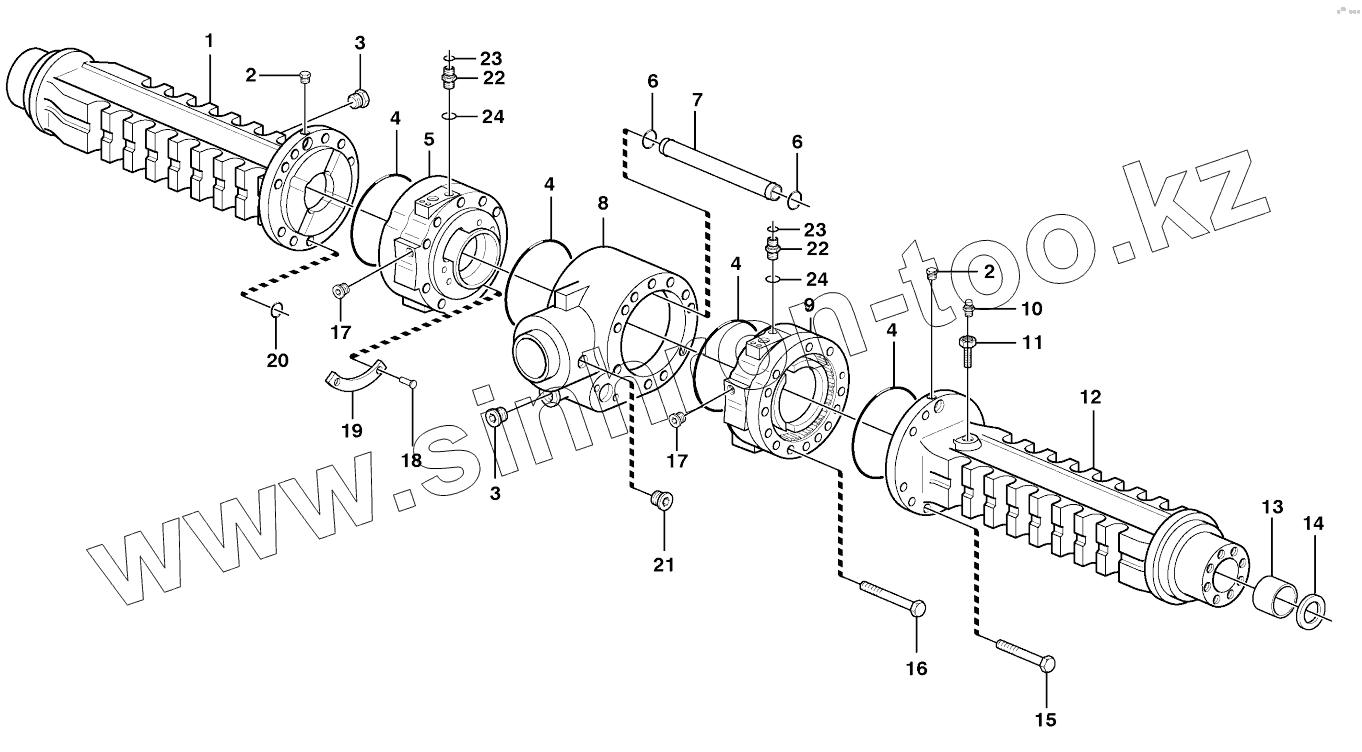

VOE11885677
1
2
2
3
3
4
4
4
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
22
23
23
24
24
Позиция на иллюстрации
Заводской номер детали
Название детали
VOE11885677
VOE11885677
Rear axle
1
VOE11712787
Axle Casing
2
VOE11709268
Plug
3
VOE11709057
Plug
4
VOE11709269
O-ring
5
VOE11709270
Brake Cylinder
6
VOE11709271
O-ring
7
VOE11709272
Pipe
8
VOE11709273
Axle Casing
9
VOE11709274
Brake Cylinder
10
VOE11709275
Breather Cap
11
VOE11709276
Breather Pipe
12
VOE11712788
Axle Casing
13
VOE11709278
Bushing
14
VOE11709279
Seal
15
VOE11709280
Screw
16
VOE11709281
Screw
17
VOE11709282
Plug
18
VOE11709283
Rivet
19
VOE11709284
Plate
20
VOE11709285
O-ring
21
VOE11709286
Plug
22
VOE935082
Nipple
23
VOE4881722
O-ring
24
VOE932037
O-ring
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
