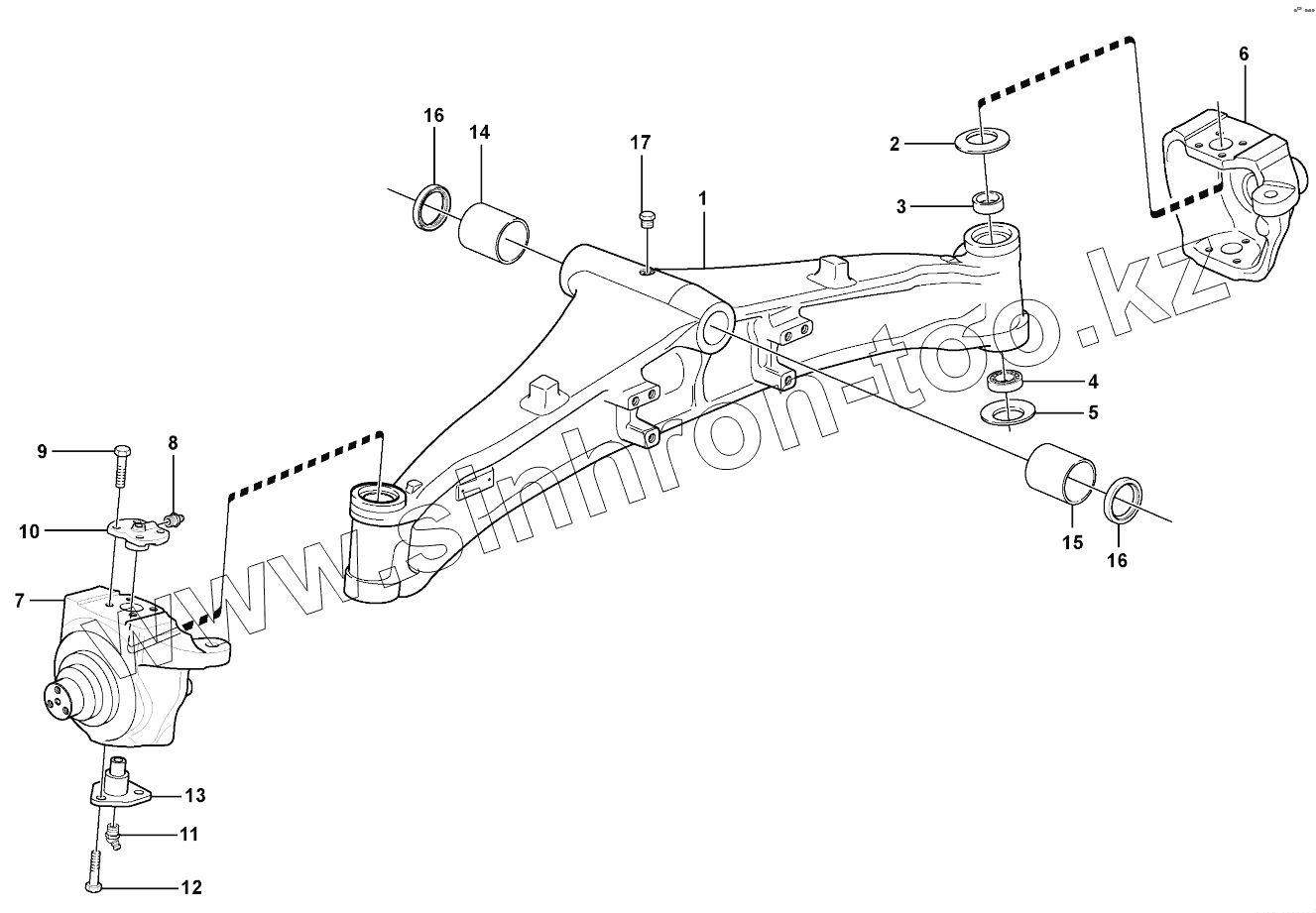

VOE11887359
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
Позиция на иллюстрации
Заводской номер детали
Название детали
VOE11887359
VOE11887359
Front axle
1
VOE11716656
Axle Casing
2
VOE11988552
Disc Spring
3
VOE11988553
Bushing
4
VOE11709400
Bearing
5
VOE11709401
Disc Spring
6
VOE11712526
Housing
7
VOE11712501
Housing
8
VOE11709410
Lub Nipple
9
VOE11988559
Screw
10
VOE11988560
King Pin
11
VOE11709464
Lub Nipple
12
VOE11712527
Bolt
13
VOE11709450
King Pin
14
VOE11716618
Bushing
15
VOE11716619
Bushing
16
VOE11716620
Seal
17
VOE11709282
Plug
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
