Boom cylinder 11891417, 11891418
Dipper arm cylinder 11891417, 11891418

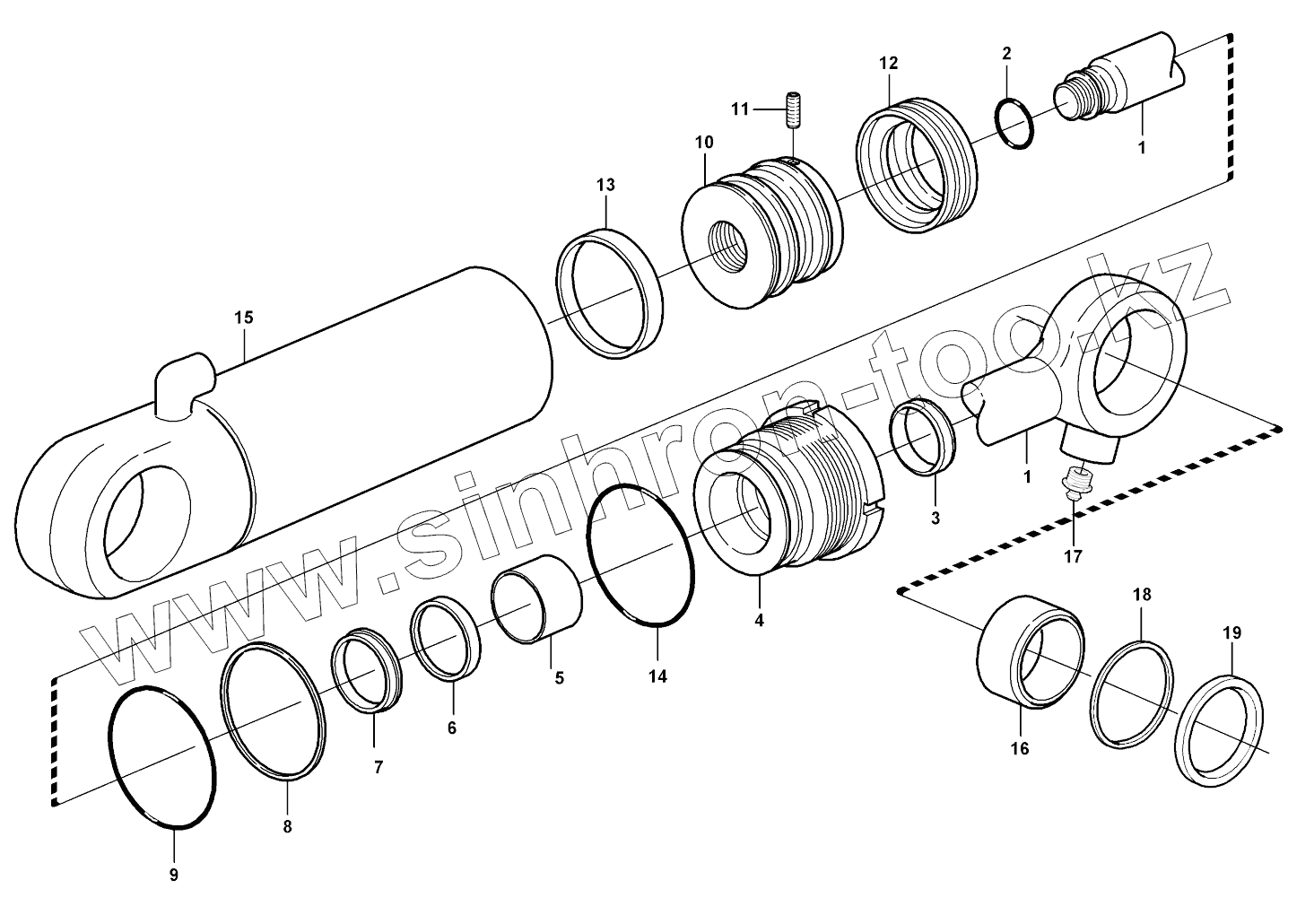

Bucket cylinder 11891417, 11891418
Extendible dipper cylinder 11891417
VOE11712450
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Позиция на иллюстрации
Заводской номер детали
Название детали
VOE11886501
VOE11886501
Cylinder
VOE11712450
VOE11712450
Sealing Kit
1
VOE11712446
Piston rod
2
O-ring
O-ring
3
Scraper
Scraper
4
VOE11712447
Piston rod guide
5
GuideRing
Guide Ring
6
PistonRodSeal
Piston Rod Seal
7
LockRing
Lock Ring
8
Back-upring
Back-up ring
9
O-ring
O-ring
10
VOE11712448
Piston
11
Screw
Screw
12
Pistonseal
Piston seal
13
GuideRing
Guide Ring
14
O-ring
O-ring
15
Cylindertube
Cylinder tube
16
VOE11710944
Bushing
17
VOE11709664
Lub Nipple
18
VOE11709605
Scraper
19
VOE11883674
Sealing ring
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
