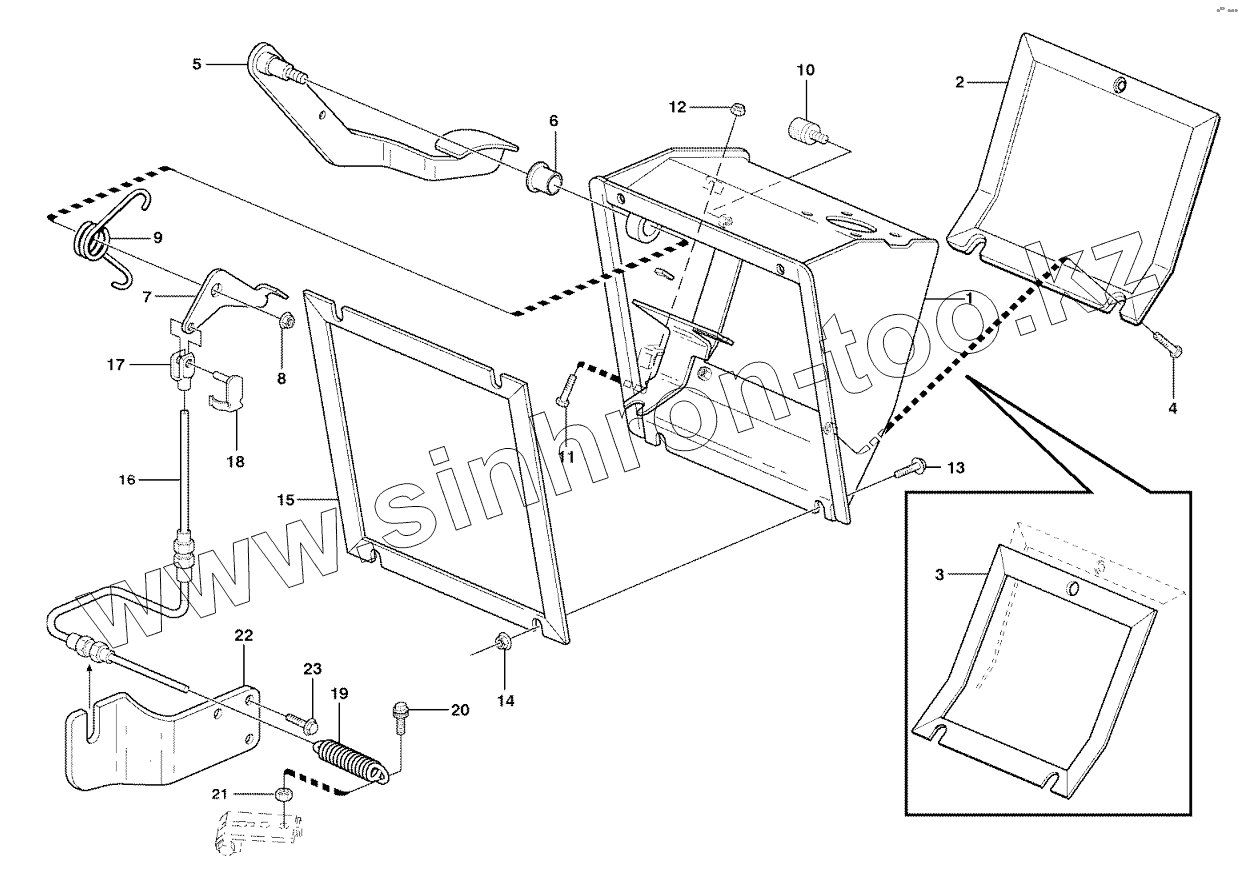

Throttle control
VOE 946671
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
Позиция на иллюстрации
Заводской номер детали
Название детали
Throttle control
Throttle control
Throttle control
VOE 946671
VOE 946671
Flange screw
1
VOE 11202250
Box
2
Cover
Cover
3
VOE 11202254
Gasket
4
VOE 13947542
Screw
5
VOE 11202248
Accelerator Pedal
6
VOE 11200936
Flange Bearing
7
VOE 11202437
Link Arm
8
VOE 13971098
Flange nut
9
VOE 11202231
Torsion Spring
10
VOE 11200579
Absorber
11
VOE 13946173
Flange screw
12
VOE 946036
Lock nut
13
VOE 13945444
Flange screw
14
VOE 948645
Flange Lock Nut
15
VOE 11202435
Gasket
16
VOE 11888222
Throt Cont Ca
17
VOE 11882487
Fork
18
VOE 11882489
Pin
19
VOE 11882485
Spring
20
VOE 11882478
Screw
21
VOE 13955781
Nut
22
VOE 11882482
Bracket
23
VOE 13946173
Flange screw
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
