Каталог запасных частей к технике: Volvo BL60. Magnet valve

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано BL60 BL61 BL61 Plus BL70 BL71 BL71 Plus BL71B

Схема > Не выбрано Repair kits for engine Engine Cylinder head Cylinder block Crankcase ventilation Pistons Valve mechanism Timing gear casing and gears Crankshaft and related parts Flywheel housing Oil sump Engine mounting 11891076, 11891077 Engine mounting Lubricating oil system Oil filter Oil cooler Fuel pump Fuel tank, fuel pipes Fuel injection pump with fitting parts Regulator Fuel lines and injectors Inlet manifold and exhaust manifold Exhaust system, silencer Turbocharger with fitting parts Air filter with fitting parts Air filter Cooling system Cooling system incl. expansion tank Radiator with fitting parts Water pump and thermostat housing 11886317, 11887318 Fan and installation components Belt transmission Engine oil preheating Regulator control Hand throttle Shutdown device Battery box with fitting parts Alternator with assembling details Starter motor with assembling details Work lights Direction indicator Inner lamp 11298190 Horn Rotating beacon Windshield wiper, front 11298190, 11298203 Windshield wiper, rear 11298190 Windshield washer Battery cable and main switch Cable harness, engine Cable harness, transmission. 11891076, 11891077 Cable Harness cab int. roof 11298189, 11298190 Cable harness chassis Cable harness rear valve block Other cables Cable harness, panel SER NO -10361 Cable harness, panel SER NO 10362- Cable harness, control panel right 11298189 Cable harness, control panel right 11298190, CAB SER NO -10430 Cable harness, control panel right 11298190 SER NO 10431- Cable harness heater and air conditioning Cable harness, hand tool hydraulic 11891333 Electrical distribut.unit and control unit Instrument panel Switch 11880001 Anti-theft Kit 11891332 Foot switch and electric power outlet Torque converter with fitting parts Hydraulic transmission with fitting parts 11891076 Hydraulic transmission with fitting parts 11891077 Hydraulic transmission with fitting parts 11891077 S/N 10939- Oil filler and dipstick 11891076 Oil filler and dipstick 11891077 S/N - 10938 Oil filler and dipstick 11891077 S/N 10939- Oil pump 11891076 Oil pump 11891077 Oil pump 11891077 S/N 10939- Clutch shaft forward/reverse 11891076 Clutch shaft forward/reverse 11891077 S/N 10939 - Clutch shaft forward/reverse 11891077 S/N - 10938 Reverse and primary shaft 11891076, 11891077 Secondary shaft 11891076 Secondary shaft 11891077 S/N 10939- Secondary shaft 11891077 Hydraulic clutch, 4wd 11891077 Shaft, four wheel drive 11891077 S/N 10939- Gearshifting 11891076 Gearshifting 11891077 S/N 10939- Gearshifting 11891077 Range selector valve 11891076, 11891077 S/N - 10938 Range selector valve 11891076, 11891077 S/N 10939 - Solenoid valve 4wd 11891077 Gear selector, 4-wheel drive 11891077 Gear selector, 2-wheel drive 11891076 Gear box housing with fitting parts Propeller shaft, mounting Propeller shaft Planet axles with fitting parts Planet axles with fitting parts S/N 10939 - Planetary axle, front 11891284, 11891286, 11891385, 11891387 Pinion 11891284, 11891286, 11891385, 11891387 Pinion 11887360 Differential , front axle 11891284, 11891286, 11891385, 11891387 Differential , front axle 11887360 Drive axle 11880001, 11891284, 11891286, 11891385, 11891387 Wheel hub 11891284, 11891286, 11891385, 11891387 Front axle 11891267, 11891275, 11891360, 11891386 S/N-10938 Front axle 11891267, 11891275, 11891360, 11891386 S/N 10939- Front axle 11880001 S/N 10939- Wheel hub 11891267, 11891275, 11891360, 11891386 Planet shaft, rear Planet shaft, rear S/N 10939 - Pinion Pinion S/N 10939 - Differential. Rear Differential. Rear Wheel hub Hub reduction, rear axle S/N 10939- Planetary gear Differential lock Differential lock 11887363 S/N 10939 - Differential lock 11880001 S/N 10939 - Oil cooler, transmission Brake operation rear Multi-disc brake, rear Multi-disc brake, rear S/N 10939 - Wheel brake, rear S/N-10938 Wheel brake, rear S/N 10939- Dual brake pedals 11294005, 11298189, 11880001 Parking brake S/N 10939- Parking brake Steering column with fitting parts Steering system 11891267, 11891275, 11891360, 11891386 Steering system 11880001 (1887360) S/N 10939 - Steering system 11891284, 11891286, 11891385, 11891387 Control valve Frame Counterweight Wheel Wheel Wheel Wheel Cab body: roof and floor panel Cab mounting block Engine hood Radiator casing Mud guards 11298189, 11298190 Step handle canopy Foot step Door with fitting parts 11298190 Rear view mirror Glass panes 11298190, 11298203 Windows 11298190 Interior components 11298018 Operator seat with fitting parts, 11891099: S/N -10389, 11891100: S/N -10549, 11891110: S/N -10346, 11891216: S/N -10263, 11891217: S/N -10264, 11891376: S/N -10290 Operator's seat Operator's seat 11891376 S/N 10291- Operator's seat. Cloth Seats For Cabs. 11891216 S/N-10263, 11891099 S/N-10389 Operator's seat. Vinyl seat for ROPS. 11891217 S/N-10264, 11891100 S/N-10549 Operator's seat, heated, air suspensioned. 11891110 S/N-10346 Heating system 11298018, 11298190 Air ducts 11298018 Air ducts 11298028, 11298190 Cab heater 11298028, 11298190 Radiator and control 11298028, 11298018, 11298190 Cab heater with connectors 11298028, 11298190 Air conditioning 11298018 Evaporator, assembly 11298018 Assembly hoses: Evaparator, receiver drier, condenser. 11298018 Instrument panel Radio bracket Vandalism kit 11298170 Interior components Casing loader controls Toolbox Tool 11891152 Sign plates and decals WARNING Hydraulic oil tank Hydraulic system, suction line, filter 11891076 Hydraulic system, suction line, filter 11891077 Hydraulic system, return line S/N-10938 Hydraulic system, return line S/N 10939 - Hydraulic oil cooler S/N - 10938 Hydraulic oil cooler S/N 10939 - Hydraulic system, feed line S/N - 10938 Hydraulic system, feed line S/N 10939 - Hydraulic system, hammer Pipes for hammer attachment 11891375 Hydraulics loader (lift & tilt) Hydraulic system, excavator Hydraulic system, stabiliser legs Hydraulic system loader Hydraulic system loader 11880001, S/N 10939 - Hydraulic system, excavator beam 11890342, 11890343, S/N - 10938 Hydraulic system, boom 11880001, S/N 10939 - Hydraulic system dipper arm 11890342, 11890343, S/N - 10938 Hydraulic system dipper arm 11880001, S/N 10939 - Hydraulic system, bucket 11890342 Hydraulic system, bucket 11890343, S/N - 10938 Hydraulic system, bucket S/N 10939 - Hydraulic system extendible dipper arm 11890342 Hydraulic system, lock cylinder S/N - 10938 Hydraulic system, lock cylinder S/N 10939- Hydraulic system, combi-bucket Valve body Inlet valve Valve section Valve section Valve section Valve body Inlet valve Magnet valve Valve section Valve section Hydraulic pump 11891076, 11891077 Controls Loader controls 11891080, 11891079 Pedal 11890342 Optional hydraulic equipment 11891369, S/N - 10938 Optional hydraulic equipment 11891369, S/N 10939 - Boom suspension system 11891345 S/N-10938 Boom suspension system 11891345 S/N - 10939 Attachment bracket, mechanical 11891299 Bucket, straight with teeth Bucket, straight with teeth S/N 10939 - Bucket, straight with teeth S/N 10939 - Bucket, straight with teeth (BACKHOE) Bucket, straight with teeth (LOADER) Bucket, straight lip without teeth 11891295, 11891296 Bucket, straight lip without teeth Bucket, straight lip without teeth Multi-purpose bucket Multi-purpose bucket Multi-purpose bucket 11891541 Hydraulic cylinder 11891018 (MULTI-PURPOSE BUCKET) Transport bracket without front bucket 11891350 Fork arm Retainer for hammer Hammer 11891017 Lifting framework with assembly parts Pins for mounting bucket Lifting framework with assembly parts 11880001, S/N 10939 - Mechanical self levelling tilt mechanism 11891079, 11881080 Hydraulic cylinder 11891079, 11891080 Hydraulic cylinder 11891079, 11891080 Swing system Boom swing system Swing cylinder Lock cylinder Stabilisers Stabiliser cylinder Foot plate Excavator boom, exendible dipper arm 11890342 Boom and dipper arm 11890343 Boom cylinder 11890342, 11890343 Dipper arm cylinder 11890342, 11890343 Bucket cylinder 11890342, 11890343 Extendible dipper cylinder 11890342

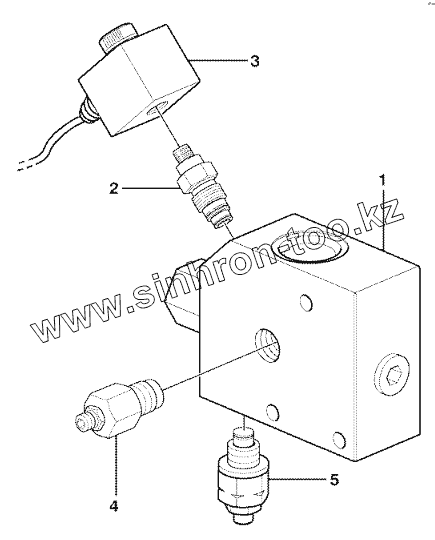

VOE 11712725

VOE 11712727

VOE 11712729

1

2

3

4

5

Позиция на иллюстрации	Заводской номер детали		Название детали
VOE 11712725	VOE 11712725		Sealing Kit
VOE 11712727	VOE 11712727		Sealing Kit
VOE 11712729	VOE 11712729		Sealing Kit
1	VOE 11885771		Valve
2	VOE 11712724		Solenoid valve
3	VOE 11711130		Coil
4	VOE 11712726		Flow Valve
5	VOE 11712728		Pressure Limiting Va

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
