VOE 11883556
VOE 11888747
VOE 11888232
VOE 11888020
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

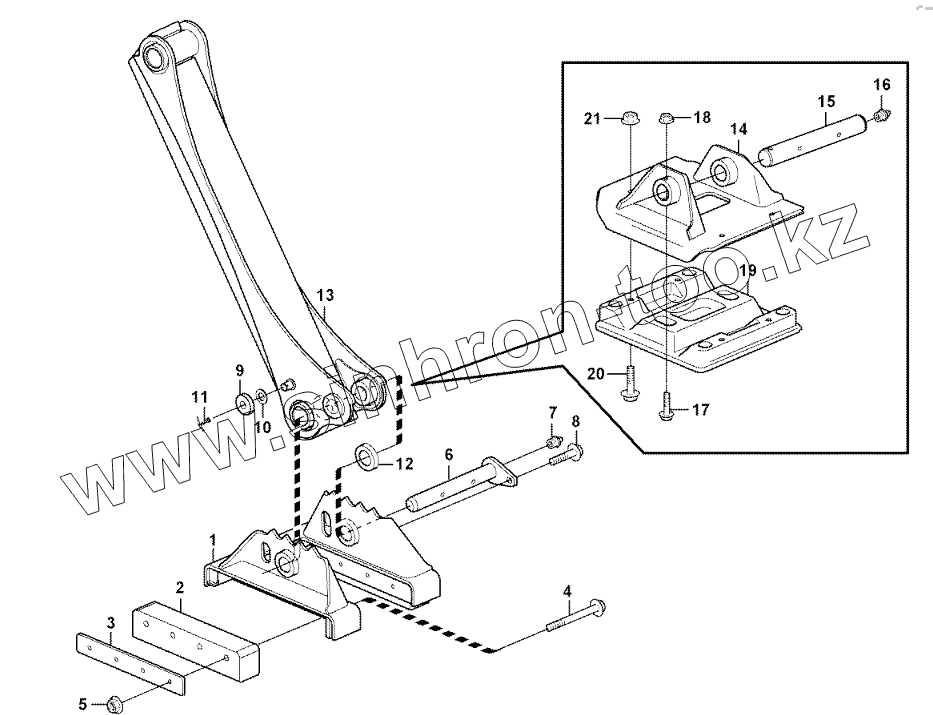

Позиция на иллюстрации
Заводской номер детали
Название детали
VOE 11883556
VOE 11883556
Pad
VOE 11888747
VOE 11888747
Foot Plate
VOE 11888232
VOE 11888232
Wheel
VOE 11888020
VOE 11888020
Washer
1
VOE 11883545
Foot Plate
2
VOE 11885784
Pad
3
VOE 11883544
Plate
4
VOE 11885271
Screw
5
VOE 971099
Flange Lock Nut
6
VOE 11884382
Pin
7
VOE 914167
Nipple
8
VOE 974428
Flange screw
9
VOE 11885295
Washer
10
VOE 930853
Washer
11
VOE 907864
Cotter Pin
12
VOE 11890115
Washer
13
Support
Support
14
VOE 11884102
Pad
15
VOE 11885002
Pin
16
VOE 914167
Nipple
17
VOE 967640
Screw
18
VOE 13971098
Flange nut
19
VOE 11885747
Pad
20
VOE 13965196
Screw
21
VOE 971099
Flange Lock Nut
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
