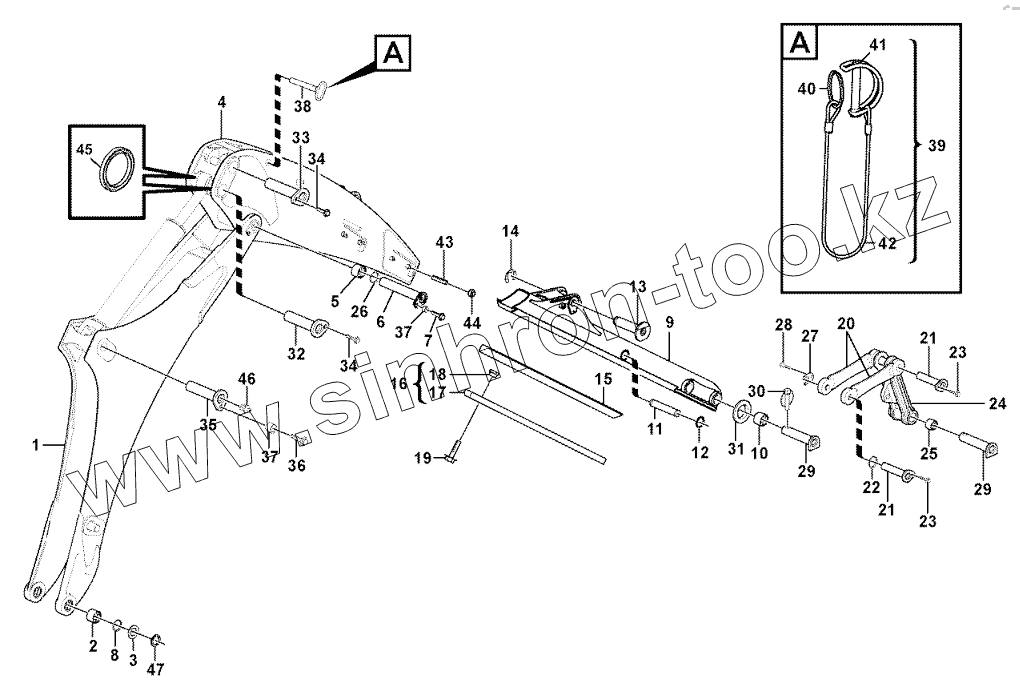

Excavator boom, exendible dipper arm 11890342
Boom and dipper arm 11890343
Boom cylinder 11890342, 11890343
Dipper arm cylinder 11890342, 11890343
Bucket cylinder 11890342, 11890343
Extendible dipper cylinder 11890342
1
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
15
16
16
17
18
19
20
21
21
22
23
23
24
25
26
27
28
29
29
30
31
32
33
34
34
35
35
36
37
37
38
39
40
41
42
43
44
45
46
47
Позиция на иллюстрации
Заводской номер детали
Название детали
1
VOE 11888239
Boom
1
VOE 11886266
Boom
2
VOE 11885426
Bushing
3
VOE 11885225
Shim
4
VOE 11886499
Arm
5
VOE 11883769
Bushing
6
VOE 11886255
Pin
6
VOE 11887962
Pin
7
VOE 968589
Flange screw
8
VOE 11890069
Seal
9
VOE 11884248
Arm
10
VOE 11883770
Bushing
11
VOE 11883897
Pin
12
VOE 914465
Snap Ring
13
VOE 11884259
Pin
14
VOE 967562
Snap ring
15
VOE 11885340
Wear Part
15
VOE 11885339
Wear Part
16
VOE 11883863
Strip
16
VOE 11887915
Strip
17
VOE 11883862
Strip
18
VOE 11883865
Square Nut
19
VOE 946441
Flange screw
20
VOE 11886174
Link
21
VOE 11882533
Pin
22
VOE 11890048
Seal
23
VOE 968589
Flange screw
24
VOE 11881575
Link
25
VOE 11883768
Bushing
26
VOE 11890117
Washer
27
VOE 11881629
Clip
28
VOE 968589
Flange screw
29
VOE 11883275
Pin
30
VOE 11881622
Locking pin
31
VOE 955912
Washer
32
VOE 11882677
Pin
33
VOE 11882537
Pin
34
VOE 968589
Flange screw
35
VOE 11887958
Pin
35
VOE 11884607
Pin
36
VOE 968435
Flange screw
37
VOE 11884168
Spacer
38
VOE 11882540
Pin
39
VOE 11883476
Safety Strap
40
VOE 11884616
Ring
41
VOE 11884614
Spring Pin
42
VOE 11881557
Steel Wire
43
VOE 11882667
Set Screw
44
VOE 979021
Hexagon Nut
45
VOE 11883936
Seal
46
VOE 914167
Nipple
47
VOE 11885224
Shim
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
