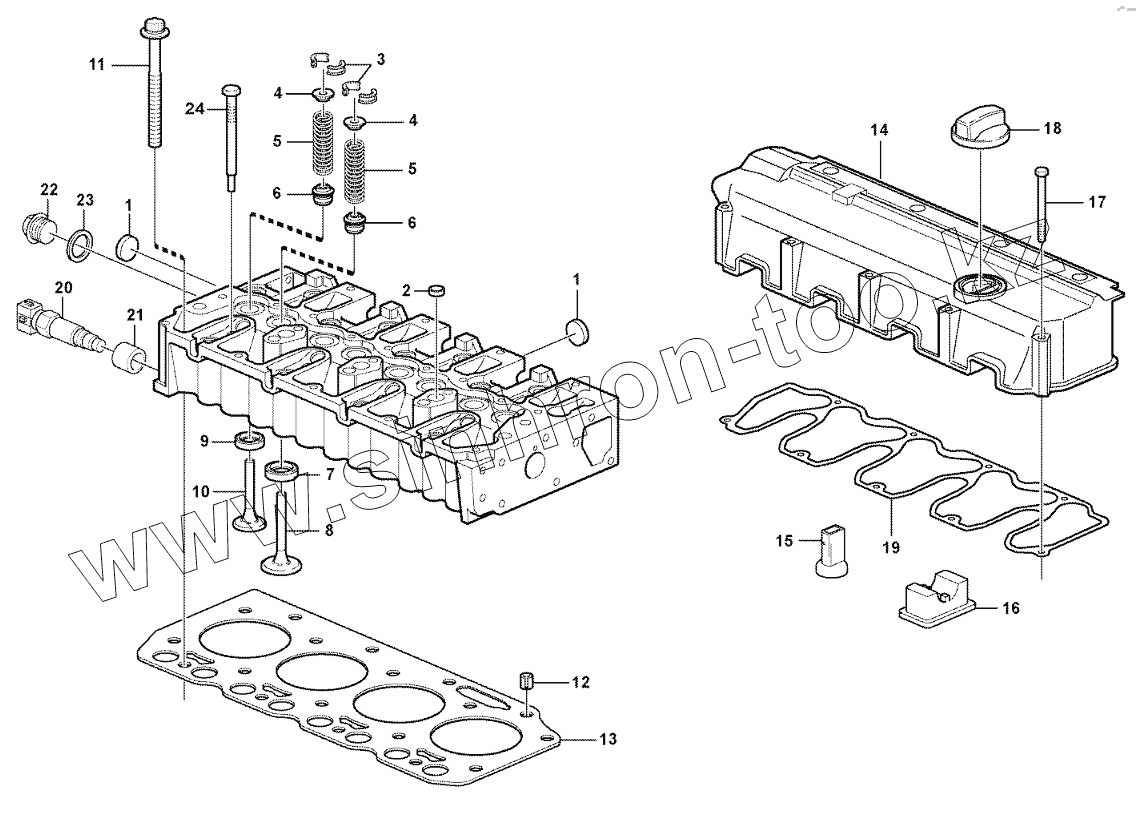

VOE 20590598
VOE 20555189
1
1
2
3
4
4
5
5
6
6
7
8
9
10
11
12
13
13
13
14
15
16
17
18
19
20
21
22
23
24
24
Позиция на иллюстрации
Заводской номер детали
Название детали
VOE 20590598
VOE 20590598
Cylinder head
VOE 20555189
VOE 20555189
Cylinder head
1
VOE 20412745
Core Plug
2
VOE 20412733
Core Plug
3
VOE 20459857
Valve Cone
4
VOE 20535037
Washer
5
VOE 20459851
Valve Spring
6
VOE 20459855
Valve Seal
7
VOE 20459852
Valve seat
8
VOE 20791517
Inlet valve
9
VOE 20459854
Valve seat
10
VOE 20791405
Exhaust Valve
11
VOE 20459838
Bolt
12
VOE 20459839
Bushing
13
VOE 20882841
Cyl Head Gasket
13
VOE 20882838
Cyl Head Gasket
13
VOE 20882839
Cyl Head Gasket
14
VOE 20558934
Valve Cover
15
VOE 20459836
Nozzle
16
VOE 20459835
Cover
17
VOE 20459830
Screw
18
VOE 11700341
Filler cap
19
VOE 20558924
Gasket
20
VOE 20924084
Sensor
21
VOE 13947621
Plane Gasket
22
VOE 20464451
Plug
23
VOE 13947628
Plane Gasket
24
VOE 20405895
Plug
24
VOE 20460459
Glow plug
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
