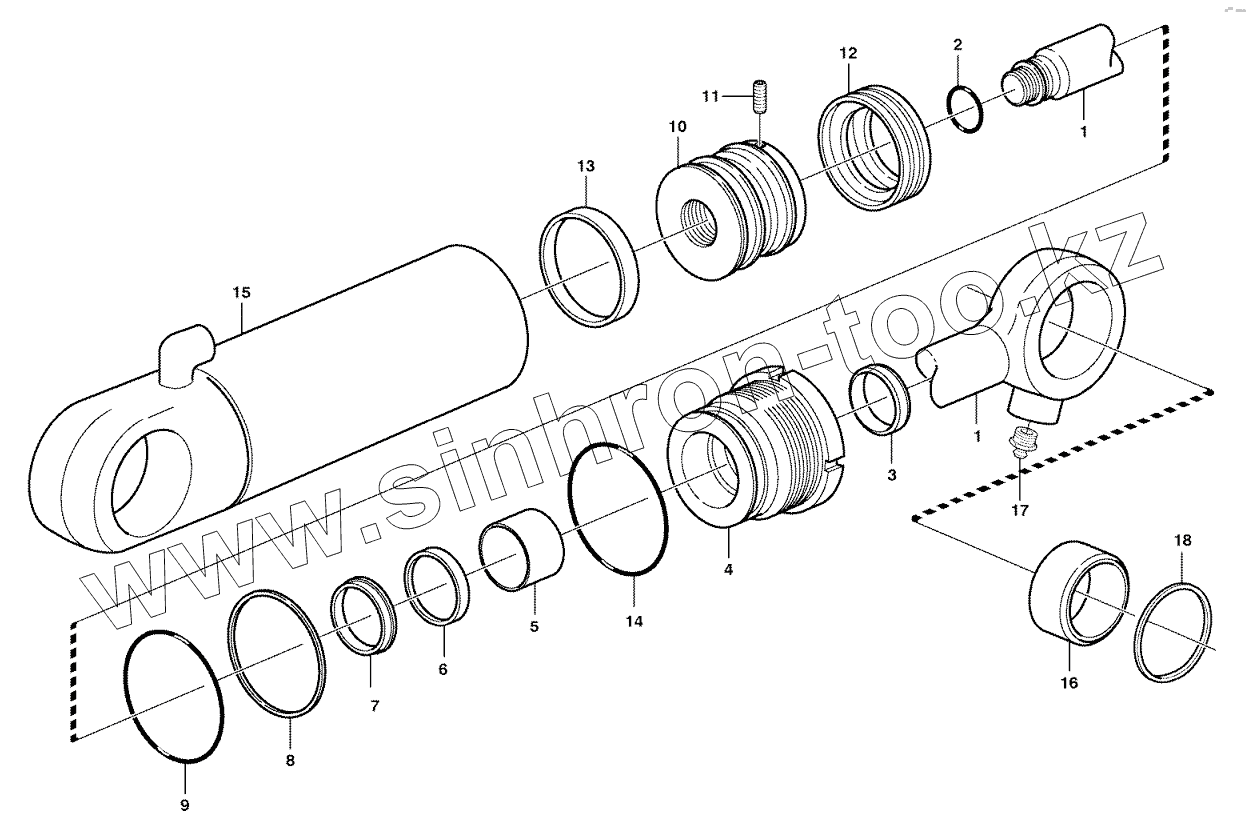

Bucket cylinder 11890342, 11890343
Extendible dipper cylinder 11890342
VOE 11712450
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Позиция на иллюстрации
Заводской номер детали
Название детали
VOE 11886501
VOE 11886501
Cylinder
VOE 11712450
VOE 11712450
Sealing Kit
1
VOE 11712446
Piston rod
2
O-ring
O-ring
3
Scraper
Scraper
4
VOE 11712447
Piston rod guide
5
Guide Ring
Guide Ring
6
Piston Rod Seal
Piston Rod Seal
7
Lock Ring
Lock Ring
8
Back-up ring
Back-up ring
9
O-ring
O-ring
10
VOE 11712448
Piston
11
Screw
Screw
12
Piston seal
Piston seal
13
Guide Ring
Guide Ring
14
O-ring
O-ring
15
Cylinder tube
Cylinder tube
16
VOE 11710944
Bushing
17
VOE 11709664
Lub Nipple
18
VOE 11709605
Scraper
