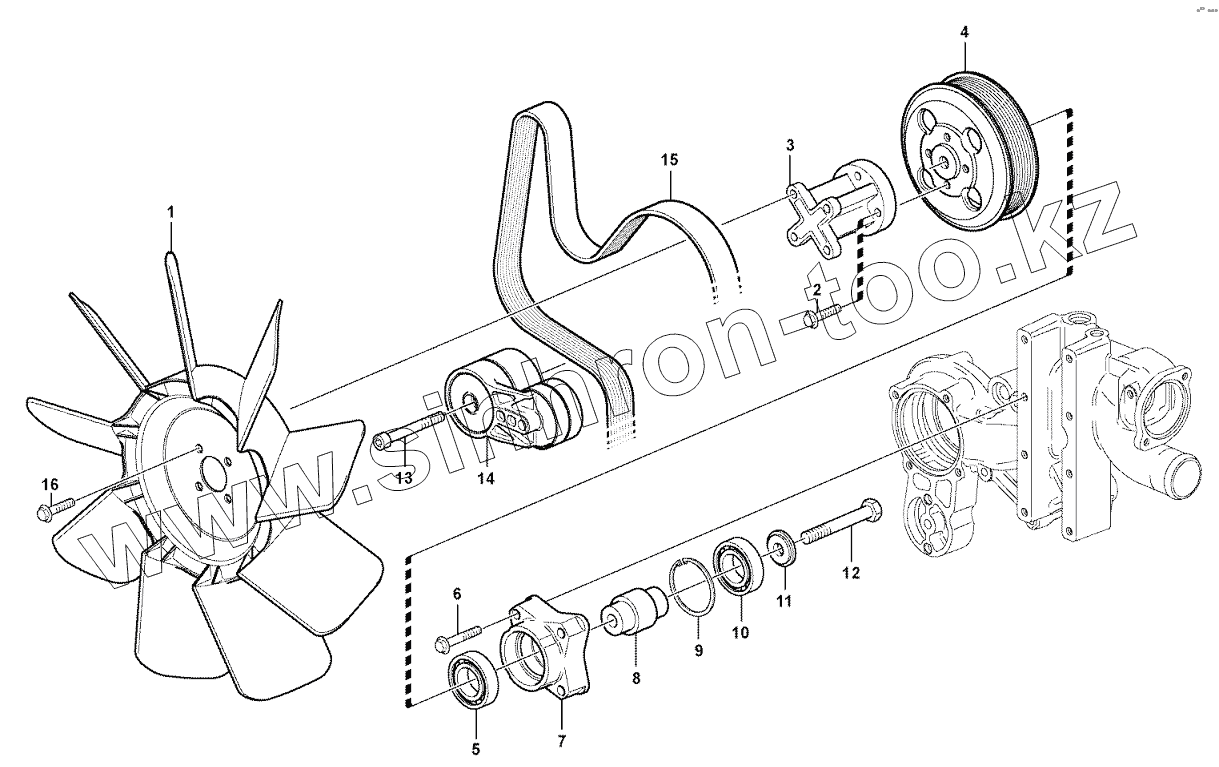

VOE 20729310
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
Позиция на иллюстрации
Заводской номер детали
Название детали
VOE 20729310
VOE 20729310
Kit
1
Fan
Fan
2
VOE 20405504
Screw
3
VOE 20405988
Adapter
4
VOE 20459864
Pulley
5
VOE 20450749
Ball Bearing
6
VOE 20459263
Screw
7
VOE 20715795
Bearing Bracket
8
VOE 20459264
Shaft
9
VOE 20459025
Retaining ring
10
VOE 20450750
Ball Bearing
11
VOE 20459265
Washer
12
VOE 20450754
Screw
13
VOE 20555065
Screw
14
VOE 20554253
Belt Tensioner
14
VOE 20909227
Belt Tensioner
15
VOE 11714203
Belt
16
VOE 20405885
Screw
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
