Каталог запасных частей к технике: VOGELE SUPER 1800-2SJ. ROOF FRAME
1
2
3
4
5
6
6
7
8
8
9
10
11
12
13
14
15
15
16
17
17
17
18
18
18
18
19
20
22
22
23
23
24
25
25
25
25
26
27
27
28
28
29
29
30
31
32
32
33
33
34
34
35
36
37
37
38
39
39
40
41
42
43
43
44
44
45
46
47
47
48
48
49
49

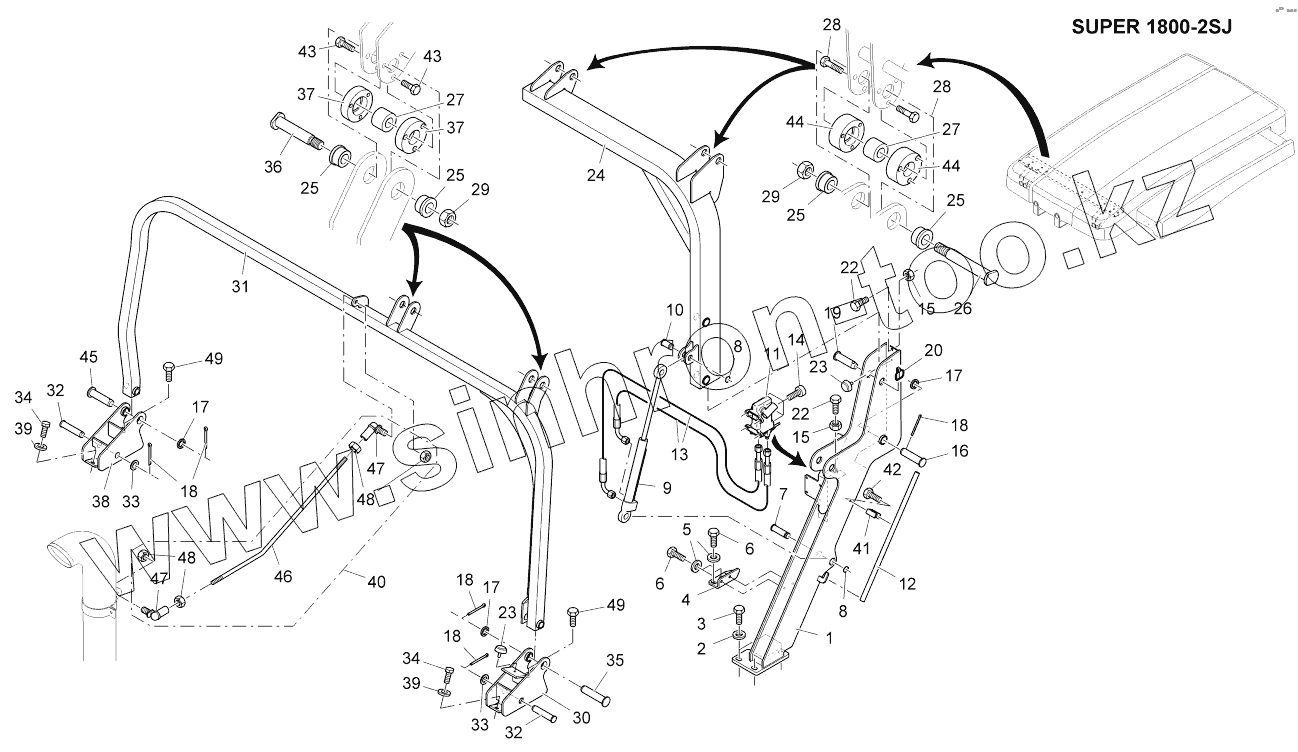

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2081569 | SUPPORT | |
| 2 | 9501707349 | WASHER | |
| 3 | 9516330933 | SCREW | |
| 4 | 2071054 | BRACKET LI. | |
| 5 | 9501307349 | WASHER | |
| 6 | 9512250933 | SCREW | |
| 7 | 2034710 | BOLT | |
| 8 | 9500250471 | SEEGER CIRCLIP RING | |
| 9 | 2036284 | HYD CYLINDER | |
| 10 | 2034712 | BOLT | |
| 11 | 9628021000 | HYDRAULIC PUMP | |
| 12 | 9628021001 | LEVER | |
| 13 | 2041169 | HOSE | |
| 14 | 9510200912 | SCREW | |
| 15 | 9500120934 | NUT | |
| 16 | 2098399 | BOLT | |
| 17 | 9500310125 | DISC | |
| 18 | 9505340094 | SPLINT | |
| 19 | 2037040 | SECURING BOLTS | |
| 20 | 9512451023 | PLUG | |
| 21 | 9500100580 | SCREW | |
| 22 | 9512330933 | SCREW | |
| 23 | 4915520119 | RUBBER BUFFER | |
| 24 | 2094986 | ELBOW | |
| 25 | 2098272 | SLEEVE | |
| 26 | 2098279 | BOLT | |
| 27 | 2098905 | RIFLE | |
| 28 | 9508300933 | SCREW | |
| 29 | 9500160980 | NUT | |
| 30 | 2096285 | CONSOLE | |
| 31 | 2095698 | ELBOW | |
| 32 | 2096855 | BOLT | |
| 33 | 9500270126 | DISC | |
| 34 | 9510250933 | SCREW | |
| 35 | 2096851 | BOLT | |
| 36 | 2097497 | BOLT | |
| 37 | 2098361 | SLEEVE | |
| 38 | 2100451 | CONSOLE | |
| 39 | 9501057349 | WASHER | |
| 40 | 2100590 | STRUT | |
| 41 | 2062484 | CLAMPING PIECE | |
| 42 | 9506160933 | SCREW | |
| 43 | 9508160933 | SCREW | |
| 44 | 2098274 | SLEEVE | |
| 45 | 2111823 | BOLT | |
| 46 | 2100589 | ROUND STEEL | |
| 47 | 2039099 | ANGLE JOINT | |
| 48 | 9500160934 | NUT | |
| 49 | 9510200933 | SCREW |
