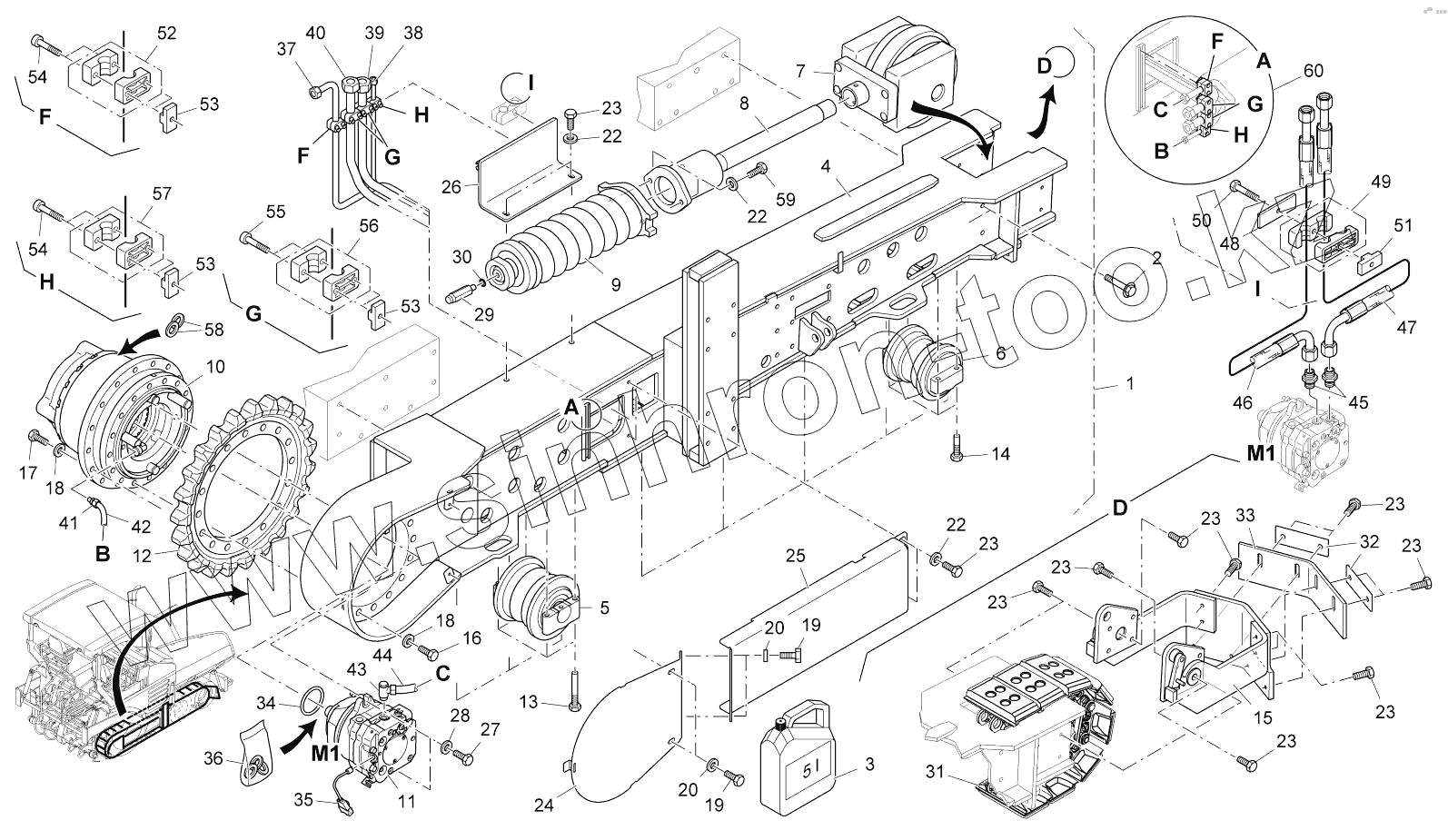

Каталог запасных частей к технике: VOGELE SUPER 1600-2. TRACK, RIGHT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
19
20
20
22
22
22
23
23
23
23
23
23
23
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
53
53
54
54
55
56
57
58
59
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2042147 | TRACK RE. | |
| 2 | 2025093 | SCREW | |
| 3 | 1238051 | SPECIAL OIL, PACK. UNIT 5 LTR. | |
| 4 | 2043606 | TRACK CARRIER RE. | |
| 5 | 4611340029 | ROLLER | |
| 6 | 4611340028 | ROLLER | |
| 7 | 2008160 | GUIDE WHEEL | |
| 8 | 2008163 | PUSH ROD | |
| 9 | 2008164 | CLAMPING UNIT | |
| 10 | 4607162182 | CHASSIS TRANSMISSION | |
| 11 | 2029365 | HY ENGINE | |
| 12 | 4610042048 | TRACK SPROCKET | |
| 13 | 2007490 | SCREW | |
| 14 | 9512360931 | SCREW | |
| 15 | 2008165 | WIPER RE. | |
| 16 | 2007738 | SCREW | |
| 17 | 2007527 | SCREW | |
| 18 | 9500216916 | DISC | |
| 19 | 9510160933 | SCREW | |
| 20 | 9500100125 | WASHER | |
| 22 | 2038695 | DISC | |
| 23 | 9512300933 | SCREW | |
| 24 | 2007795 | LID | |
| 25 | 2008166 | LID | |
| 26 | 2008167 | SHEET | |
| 27 | 2007771 | SCREW | |
| 28 | 9500176916 | DISC | |
| 29 | 2120177 | LUBRICATION NIPPLE | |
| 30 | 4617212472 | RING | |
| 31 | 4610302084 | CURRENT CHAIN + RUBBER PLATES | |
| 32 | 2008171 | SHEET | |
| 33 | 2008172 | DEFLECTORS | |
| 34 | 9672630062 | O-RING | |
| 35 | 2029371 | SENSOR | |
| 36 | 9629561003 | SEAL KIT | |
| 37 | 4617305749 | PIPE | |
| 38 | 4617305750 | PIPE | |
| 39 | 4617305747 | PIPE | |
| 40 | 4617305746 | PIPE | |
| 41 | 9602130057 | SCREW CONNECTION | |
| 42 | 3430251105 | HOSE | |
| 43 | 9678180058 | SCREW | |
| 44 | 3450032090 | HOSE | |
| 45 | 9603070057 | SCREW | |
| 46 | 2009128 | HOSE | |
| 47 | 2009125 | HOSE | |
| 48 | 9685020185 | TOP COVER | |
| 49 | 9660150185 | PAIR OF CLAMPING HALVES | |
| 50 | 9508310933 | SCREW | |
| 51 | 9695030185 | NUT | |
| 52 | 2038750 | PIPE CLAMP | |
| 53 | 9695010185 | NUT | |
| 54 | 9506300912 | SCREW | |
| 55 | 9506310912 | SCREW | |
| 56 | 2038752 | PIPE CLAMP | |
| 57 | 2038753 | PIPE CLAMP | |
| 58 | 9511137603 | SEAL RING | |
| 59 | 2040804 | SCREW |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
