Каталог запасных частей к технике: VOGELE SUPER 1600-2. RAMPE, SHORT PNEUM. KPL.

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано AB 340 (2016) AB500-2 TV (2011) AB500-3 TV (2016) SUPER 1100-3 (2021) SUPER 1103-2 (2016) SUPER 1300-3 (2021) SUPER 1303-2 (2016) SUPER 1600-2 (2015) SUPER 1800-2 (2015) SUPER 1800-2SJ (2015)

Схема > Не выбрано 1182 (SUPER 1600-2, SUPER 1800-2, SUPER 1800-2SJ) SPARE PARTS LIST CHASSIS / SAFETY OPERATING AND WARNING INSTRUCTIONS LI OPERATING AND WARNINGS RE OPERATING AND WARNING NOTES REG OPERATION AND WARNINGS HI INSTRUC. HANDLING AND NOTICE LEFT. USA OPERATION AND WARNINGS RE USA OPERATION AND WARNINGS USA OPERATION AND WARNINGS HI USA OPERATING AND WARNING NOTES CLADDING SCREEN WALL SCREEN WALL COVER SOUND INSULATION / COVERS ENGINE HOOD ENGINE HOOD LIGHTING, HALOGEN IN THE ROOF LIGHTING, XENON IN THE ROOF LIGHTING, HALOGEN LIGHTING, XENON 1 LIGHT BALLOON WITH HOLDER 1 LIGHT BALLOON WITH ROOF HOLDER 2 LIGHT BALLOONS WITH HOLDER 2 LIGHT BALLOONS WITH ROOF HOLDER HEADLIGHT 24V REAR BEACON REAR BEACON HORN IMPACT PROTECTION, MECHANICAL RISK PROTECTION, ELECTRIC ASCENT ASCENT CHASSIS CHASSIS CHASSIS ADDITIONAL WEIGHTS > 9M ADDITIONAL WEIGHTS CONTROL PANEL CONTROL PANEL, ELEC. CONTROL PANEL DESK SLIDE DESK TOUR, ENERGY CHAIN PLATFORM PLATFORM ADDITIONAL PARTS: PLATFORM SEAT CONSOLE WITH RAILING DRIVER'S SEAT FAHRERSITZ+HEIZUNG AUSSENSTEUERSTAND KPL. EXTERNAL CONTROL STAND ROOF FRAME ROOF FRAME ROOF FRAME WITHOUT WASHER ROOF FRAME WITH WASHER DRIVER ROOF DRIVER ROOF REAR MIRROR WITH BRACKET MIRROR WITH BRACKET CAMERA / DISPLAYS CLADDING FRONT PLANE TOOL KIT DRIVE UNIT - ENGINE ENGINE STATION DIESEL ENGINE COM3 / EPA DIESEL ENGINE COM3 / EPA ENGINE STATION DIESEL ENGINE COM3 / EPA DIESEL ENGINE MLIT3 DIESEL ENGINE COM3 / EPA DIESEL ENGINE MLIT3 FUEL SUPPLY FUEL SUPPLY SILENCER SILENCER FOLDING DEVICE CPL. FOLDING DEVICE CPL. AIR SUCTION AIR SUCTION COOLING SYSTEM COOLING SYSTEM RESPONSE HYDRAULIC OIL SUPPLY HYDRAULIC TANK BYPASS OIL FILTER PUMP DISTRIBUTION GEAR PUMP DISTRIBUTION REDUCER PUMP CYLINDER FUNCTIONS LEAKING OIL CONVEYOR BELT LEFT HYDR MIXED MATERIAL TRANSPORT RIGHT HYDR. REVERSE MOVEMENT REVERSE MOVEMENT ALIM. ACEITE HIDR. VALVE BLOCK CYLINDER FUNCTION 1 VALVE BLOCK CYLINDER FUNCTION 2 VALVE BLOCK SCREED ON / OFF VENTILBLOCK TAMPER VENTILBLOCK VIBRATION/PRESSL. ELECTRICAL SYSTEM BATTERY BATTERY 24V POWER SUPPLY INACTIVE PIN SOCKET 24V SOCKET, SCHUKO SOCKET, SCHUKO SWITCH BOX CPL. SWITCH BOX CPL. SWITCH BOX, MECH. SWITCH BOX, MECH. SWITCH BOX, MOUNTING PLATE SWITCH BOX, TERMINAL BOARD SWITCH BOX, CONTROL SWITCH BOX, SOCKETS WIRING HARNESS NUDO CAN HEATING BOX CPL. HEATING BOX CPL. HEATING BOXES, MECH. HEATING BOXES, MECH. HEATING BOX, MOUNTING PLATE HEATING BOX, MOUNTING PLATE HEATING BOX, CONTROL 1 HEATING BOX, CONTROL 2 HEATING BOX, SOCKETS HEATING BOX, SOCKETS HEATING BOX, SOCKETS 32A HOUSING WITH LED ANBAO GENERATOR GENERATOR STANDARD GENERATOR POWER FEED DRIVE TRACK, LEFT TRACK, RIGHT TRACK WITH RUBBER SHOES CHASSIS TRANSMISSION DRIVE HY. LI. DRIVE HY. RE. ADJUSTMENT TRAVEL DRIVE HYDR. TRAVEL DRIVE INFEED HYDR. SET PRESSURE SUPPLY BRAKE HYDRAULICS REVERSE SIGNAL STEERING SYSTEM DIRECTION INDICATORS STEERING AUTOMATIC SLIDING TUBE + TENSION TRANSPORT SYSTEM PRINT ROLLER RIGID PRINT ROLLER MATERIAL HOPPER TOLVA DE MATERIAL HID., IZQ. MOTHER'S ALBUNKER RE. INLET VALVE MECH. INLET FLAP HY HYDRAULIC INLET VALVE DETACHED MECHANICAL INLET FLAP CONTAINER REVERSING ROLLER ASSY. FLOOR PLATE DRIVE SHAFT SCRATCH TAPE SCRATCH CHAIN CPL. SCRATCH TAPE PROTECTION BELT DRIVE, LEFT DRIVE-TRANS.HID BELT. DRIVE BAND RE.MECH. ANTRIEB BAND RE. HY. PADDLE CONTROL SUSPENSION AUGER COVER DRIVE AUGER LI. DRIVE AUGER LI. DRIVE AUGER RE. DRIVE AUGER RE. SPUR GEAR DRIVE AUGER LI.HY.1600-2 DRIVE AUGER LI. HY. DRIVE AUGER RE.HY.1600-2 DRIVE AUGER RE. HY. MECHANICAL HEIGHT ADJUSTMENT HEIGHT ADJUSTMENT AUGER HY. WORM TREE, LEFT WORM SHAFT RE. LAGERBOKK LE. LAGERBOCK RE. CONVERSION KIT - PROBE ULTRASONIC SNAIL DUCT PLATE 0.25M CHANNEL PLATE, SWIVELING AUGER EXTENSION 2X0.25M AUGER EXTENSION 2X0.65M AUGER EXTENSION 2X1.2M AUGER EXTENSION 4.6M AUGER EXTENSION 4,6-7,1M LEVELING SYSTEM NIVELTRONIC PLUS, BASIS SUPPORT-SECOND PROBE ULTRASONIC PROBE, MECHANICAL ULTRASONIC PROBE ULTRASOUND EXPLORER INCLINATION SENSORS ROAD-SCANNER LASER RECEIVER LASER RECEIVER BIG-MULTIPLEX-SKI SKITASTER 2M SLIDING TUBE 7M ACCESSORIES WIRE GUIDE CLEANING SYSTEM CLEANING PUMP TANK FOR CLEANING SYSTEM TANK FOR CLEANING SYSTEM SPRAY HOSE SHOULDER SYRINGE HOSE REEL HOSE REEL SCREED CONNECTION RULE ARMS HYDRAULIC CYLINDER, LEFT HYDRAULIC CYLINDER, RIGHT LIFT-LOWER SCREED SCREED RELIEF SCREED RELIEF VALVE BLOCK RULE INTERLOCK, MECH. RULE INTERLOCK, HIDR RULE INTERLOCKING SYSTEM SCREED IN / OUT TAMPER CONNECTION TAMPER 40L TAMPER 80L TAMPER+VIBRATION TAMPER 80L, HIGH COMPRESSION HIGH COMPACTION POWER VALVE BLOCK - APC HY-ATTACHMENTS HY-ATTACHMENTS HY-ATTACHMENTS HY-ATTACHMENTS BINDER INSTALLATION TANK, MECH. TANK, PUMPS TANK, HEATING TANK, PNEUMATIK TANK, ELECTRIC 1 TANK, ELECTRIC 2 TANK, HYDRAULICS RAMPE,KLAPPBAR MECH.LI. 5M RAMP, FOLDABLE MECH.RE. 5 M PROTECTIVE PLATE RAMP 5M ADJUSTMENT DEVICE RAMP, FOLDABLE ELECTRIC LI. 5 M RAMP, FOLDABLE ELECTRIC RH. 5 M RAMP, FOLDABLE PNEUM.LI. 5 M RAMP, FOLDABLE PNEUM.RE. 5 M RAMP, SHORT MEC., CPL RAMP, MEC. CENTER RAMPE, ELECTRIC DUST. KPL. RAMP, ELECTR. CENTER RAMPE, SHORT PNEUM. KPL. RAMP, NEUM. CENTER DISTRIBUTOR, BITUMEN PIPING: EMULSION LI. + RE. PIPE: FRONT EMULSION HOSE SET: EMULSION SUPPLEMENT ELEMENTS 5M SPRAY ACCESSORIES 5M INJECTORS KIT COMPRESSED AIR SYSTEM COMPRESSED AIR SYSTEM MECHANICS COMPRESSED AIR SYSTEM PNEUMATIC PIPING: REAR COMPRESSED AIR PIPING: COMPRESSED AIR IN FRONT LUBRICATION SYSTEM GREASE PUMP GREASE SCRATCH TAPE GREASE SNAIL LUBRICATION GREASE PUMP GREASE FILLING SERVICE IMPLEMENT MAINTENANCE KIT, 50 HOURS MAINTENANCE KIT, 500 HOURS MAINTENANCE KIT, 500 HOURS MAINTENANCE KIT, 1000 HOURS MAINTENANCE KIT, 1000 HOURS VSS_BUNKER / FRONTKLAPPE MECH. VSS_BUNKER / FRONT FLAP HYDR. VSS_ FORWARD ROLLER VSS_ DRIVE SHAFT VSS_SNAIL WINGS VSS_ENDLESS DISTRIBUTION VSS_DISTRIBUTION AUGER WORKSHOP KIT ACCESSORIES ACCESSORIES ACCESSORIES

2

3

4

4

4

5

6

7

8

8

9

10

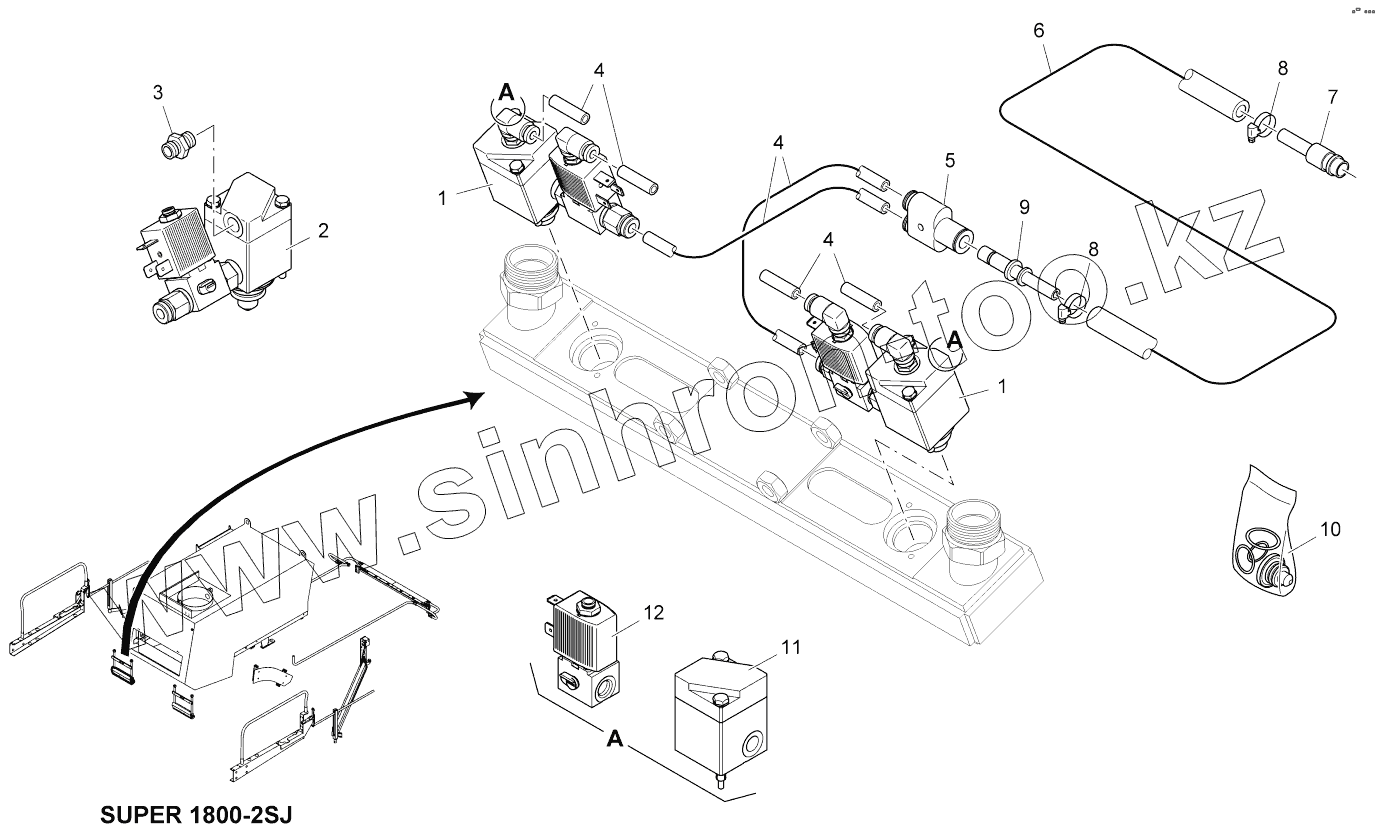

Позиция на иллюстрации	Заводской номер детали		Название детали
2	2086954		VALVE
3	2086993		SCREW
4	2086995		HOSE
5	2086998		LINK
6	2086999		RUBBER TUBE
7	2087000		COUPLING PLUG
8	2087672		TUBULAR TAPE
9	2087006		CONNECTING FITTINGS
10	2086992		BELLOWS

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
