Каталог запасных частей к технике: VOGELE SUPER 1303-2. CONSOLE SLIDE
1
2
2
2
2
2
3
3
3
3
4
5
6
7
8
10
10
11
12
13
14
15
16
16
16
17
18
19
20
21
21
21
21
21
22
23
23
23
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
25
25
25
25
25
26
27
27
27
27
28
29
30
30
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
44
44
45
46
47
47
47
48
48
48
48
49
49
49
50
51
52
52
53
54
55
56
57
58

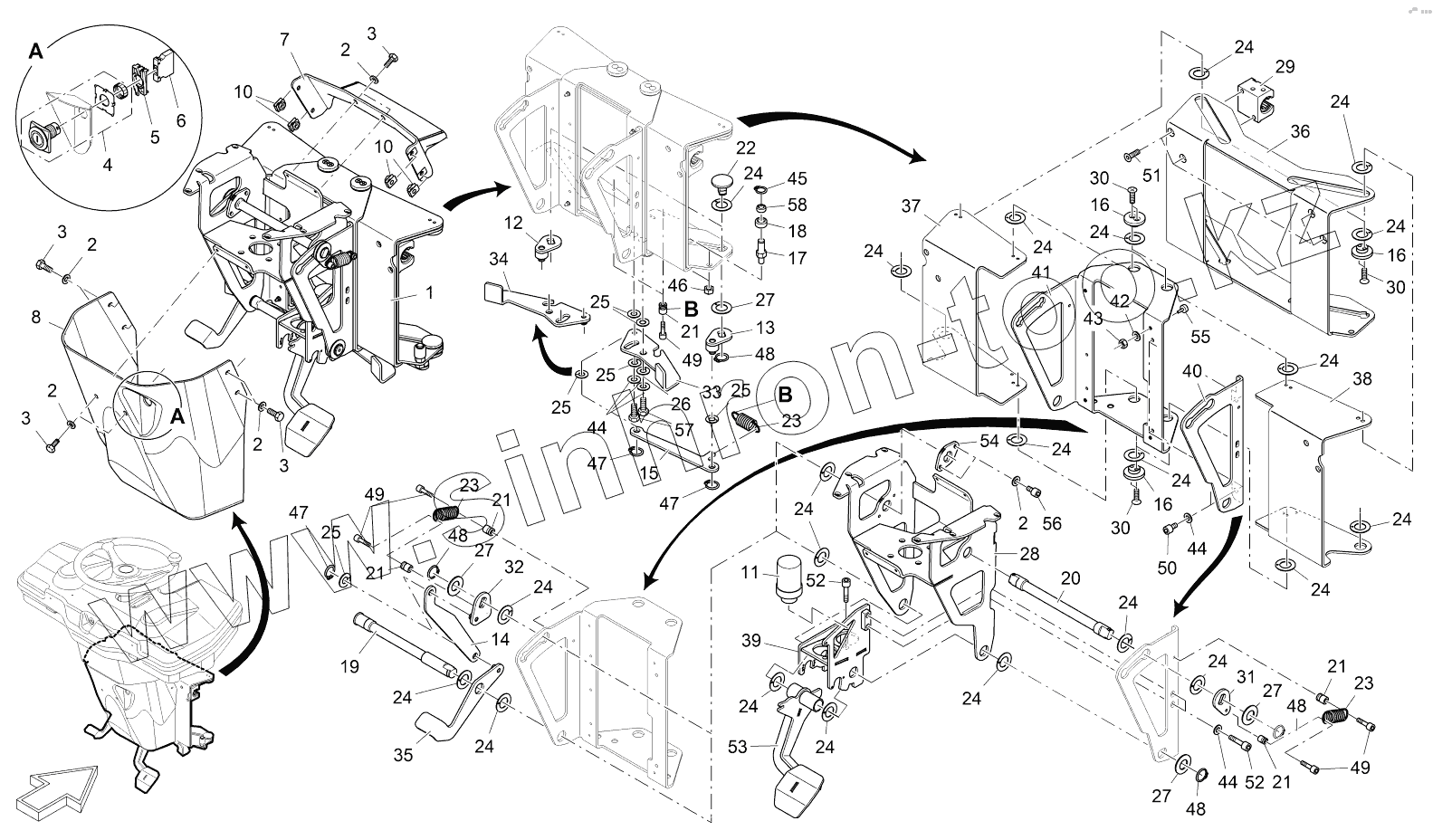

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2056467 | ADJUSTMENT | |
| 2 | 9500647349 | WASHER | |
| 3 | 9506160933 | SCREW | |
| 4 | 2032194 | IGNITION SWITCH | |
| 5 | 2032206 | FLANGE | |
| 6 | 2032207 | SWITCH ELEMENT | |
| 7 | 2041282 | CLADDING | |
| 8 | 2041283 | CLADDING | |
| 10 | 2063188 | NUT | |
| 11 | 2011531 | SPRING ELEMENT | |
| 12 | 2025063 | LEVER | |
| 13 | 2025070 | LEVER | |
| 14 | 2025080 | METAL PLATE | |
| 15 | 2025096 | METAL PLATE | |
| 16 | 2025120 | BOLT | |
| 17 | 2025202 | BOLT | |
| 18 | 2172960 | ROLLER | |
| 19 | 2025209 | SHAFT | |
| 20 | 2025210 | SHAFT | |
| 21 | 2025212 | SLEEVE | |
| 22 | 2025249 | BOLT | |
| 23 | 2026109 | SPRING | |
| 24 | 2026112 | WASHER | |
| 25 | 2026113 | WASHER | |
| 26 | 2026114 | CUP SPRING | |
| 27 | 2026116 | CUP SPRING | |
| 28 | 2026122 | HOLDER | |
| 29 | 2026904 | HOUSING | |
| 30 | 2060501 | SCREW | |
| 31 | 2031922 | METAL PLATE | |
| 32 | 2031924 | LEVER | |
| 33 | 2031929 | LEVER | |
| 34 | 2031951 | LEVER | |
| 35 | 2031989 | LEVER | |
| 36 | 2040729 | METAL PLATE | |
| 37 | 2040731 | METAL PLATE | |
| 38 | 2040738 | METAL PLATE | |
| 39 | 2045358 | HOLDER | |
| 40 | 2047320 | METAL PLATE | |
| 41 | 2047328 | HOLDER | |
| 42 | 9500040125 | WASHER | |
| 43 | 9500040934 | NUT | |
| 44 | 9500080125 | WASHER | |
| 45 | 9500100471 | SEEGER CIRCLIP RING | |
| 46 | 9500100934 | NUT | |
| 47 | 9500120471 | SEEGER CIRCLIP RING | |
| 48 | 9500200471 | SEEGER CIRCLIP RING | |
| 49 | 9506200912 | SCREW | |
| 50 | 9508120912 | SCREW | |
| 51 | 9508207991 | SCREW | |
| 52 | 9508300912 | SCREW | |
| 53 | 2057529 | BRAKE PEDAL | |
| 54 | 2060392 | METAL PLATE | |
| 55 | 2026111 | RUBBER BUFFER | |
| 56 | 9506120912 | SCREW | |
| 57 | 2005533 | SCREW | |
| 58 | 2160491 | ROLLER |
