VSS_MATERIAL HOPPER
VSS_RETURN PULLEY
VSS_DRIVE SHAFT, LEFT SIDE
VSS_DRIVE SHAFT, RIGHT SIDE
VSS_AUGER
VSS AUGER
VSS AUGER
SHOP KIT
ACCESSORIES
1
2
2
2
2
3
3
4
4
5
6
6
7
7
8
9
10
15

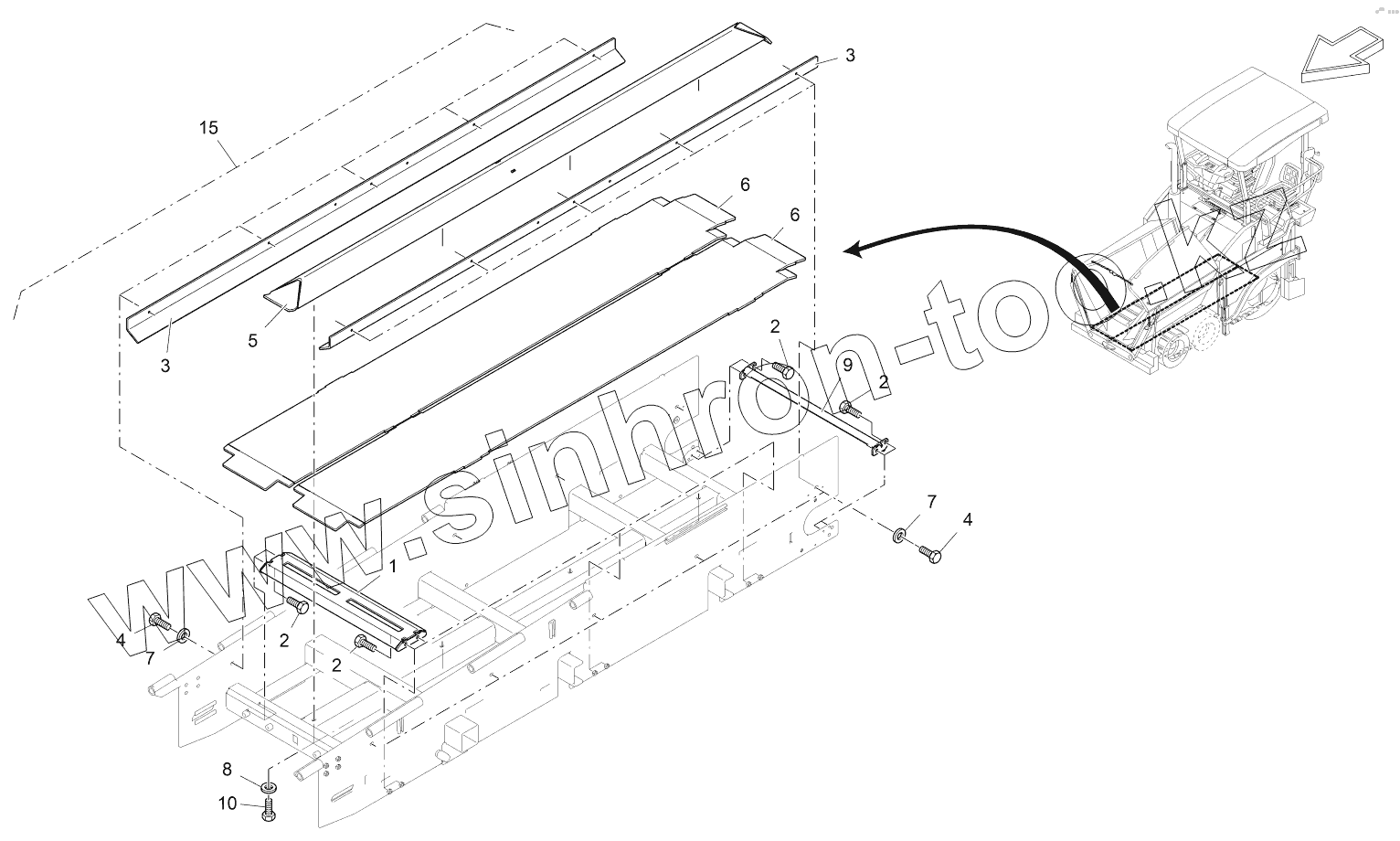

Позиция на иллюстрации
Заводской номер детали
Название детали
1
2052732
WEARING PLATE
2
9512300933
SCREW
3
2046265
GUARD FOR CONVEYOR
4
9510220933
SCREW
5
2046339
CENTRAL GUARD
6
2052785
BASE SHEET
7
9500100125
WASHER
8
9501307349
WASHER
9
2070021
SCRAPER
10
9512200933
SCREW
15
2085982
VSS_MATERIAL HOPPER
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
