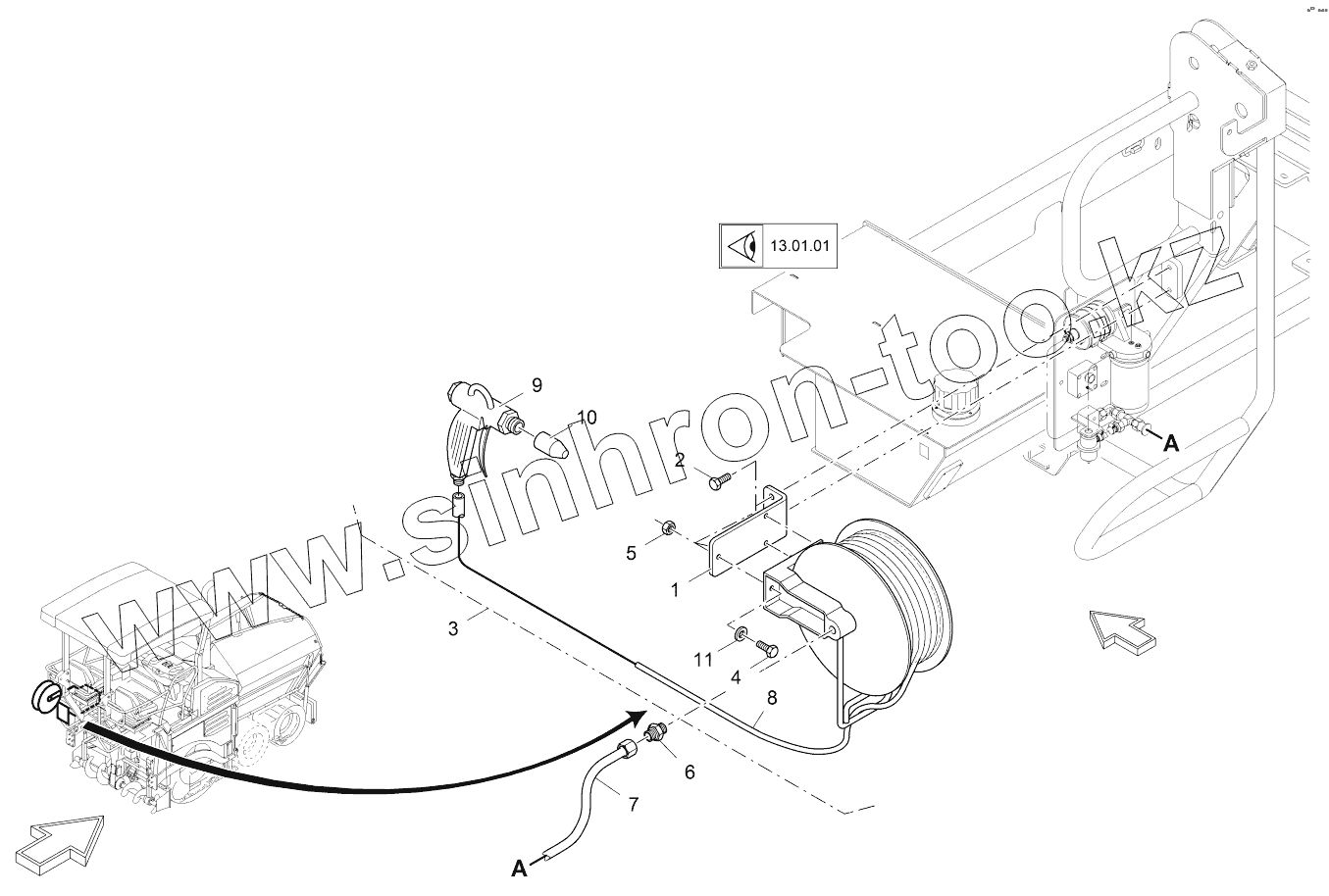

1
2048703
METAL PLATE
2
9510180933
SCREW
3
2169425
REWINDER
4
9508250933
SCREW
5
9500080934
NUT
6
9612161350
SCREW CONNECTION
7
2063895
HOSE
8
2169426
HOSE
9
2169428
SPRAY NOZZLE
10
2171512
NOZZLE
11
9500080125
WASHER
