Каталог запасных частей к технике: VOGELE SUPER 1103-2. COOLING SYSTEM
1
2
4
5
6
7
7
7
8
8
8
8
8
8
9
9
9
10
10
10
11
12
12
12
13
13
13
13
14
15
16
16
17
18
18
18
18
19
20
21
22
22
23
24
25
26
27
28
29
30
30
31
32
34
35
36
36
37

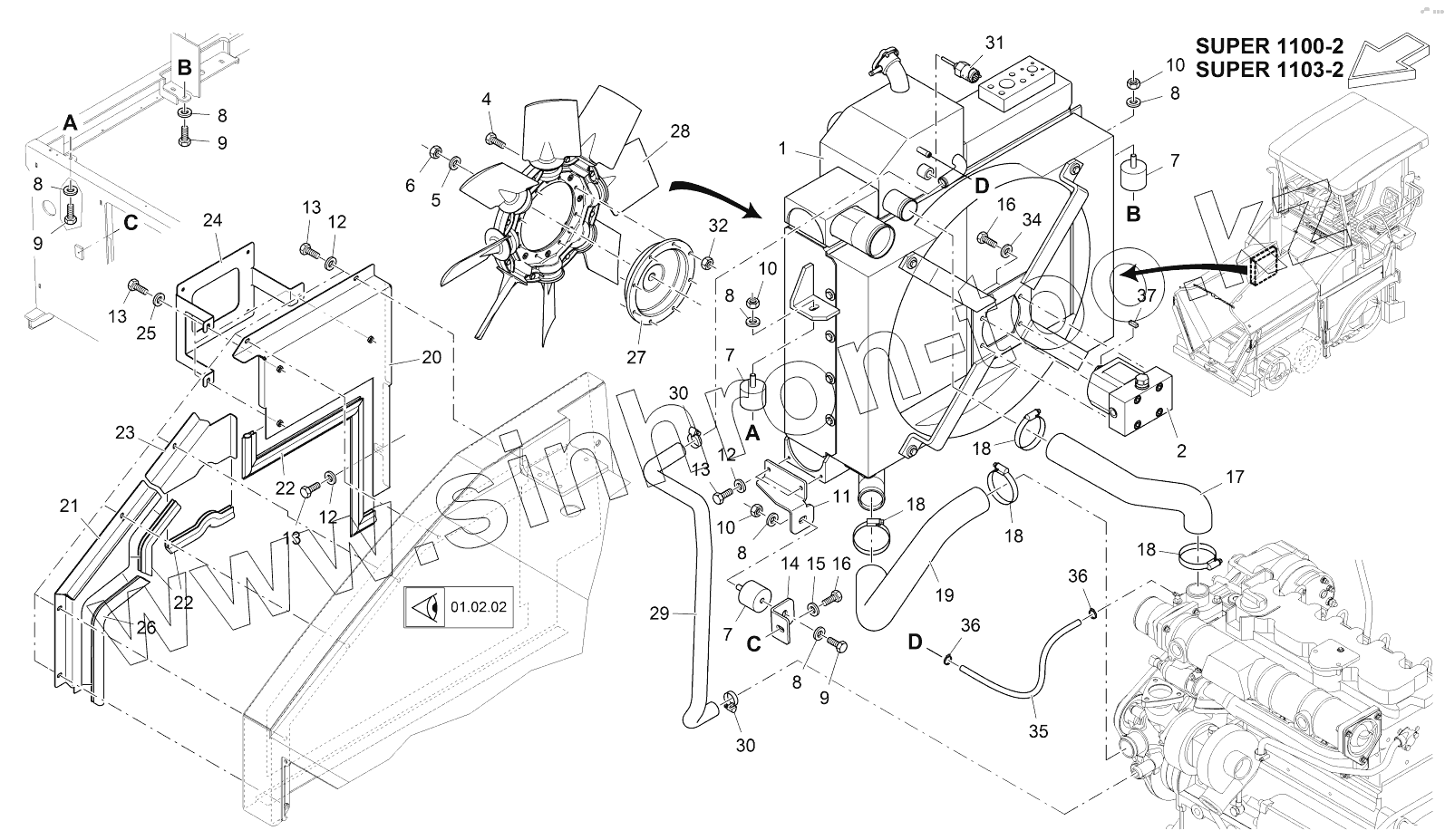

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2083592 | COMBINED COOLER | |
| 2 | 2106633 | HYDRAULIC MOTOR | |
| 4 | 9506250933 | SCREW | |
| 5 | 2103087 | SPRING WASHER | |
| 6 | 9515120439 | NUT | |
| 7 | 2101933 | RUBBER METAL BUFFER | |
| 8 | 9501057349 | WASHER | |
| 9 | 95102009 | SCREW | |
| 10 | 9500100934 | NUT | |
| 11 | 2086848 | ANGULAR PLATE | |
| 12 | 9500060125 | WASHER | |
| 13 | 9506160933 | SCREW | |
| 14 | 2086824 | METAL PLATE | |
| 15 | 9500847349 | WASHER | |
| 16 | 9508160933 | SCREW | |
| 17 | 2082213 | HOSE | |
| 18 | 2012382 | PIPE CLIP | |
| 19 | 2083083 | HOSE | |
| 20 | 2095534 | METAL PLATE | |
| 21 | 2084314 | METAL PLATE | |
| 22 | 4604042224 | SEALING | |
| 23 | 2094194 | METAL PLATE | |
| 24 | 2094946 | METAL PLATE | |
| 25 | 9500647349 | WASHER | |
| 26 | 4604042225 | SEALING | |
| 27 | 2072451 | INTERMEDIATE HUB | |
| 28 | 2077064 | FAN WHEEL | |
| 29 | 2107095 | COOLANT HOSE | |
| 30 | 9510203017 | HOSE CLAMP | |
| 31 | 2107480 | LEVEL SWITCH COOLANT | |
| 32 | 9500060934 | NUT | |
| 34 | 9500080125 | WASHER | |
| 35 | 4618802047 | HOSE | |
| 36 | 9510123017 | HOSE CLAMP | |
| 37 | 9503066888 | DISK SPRING |
