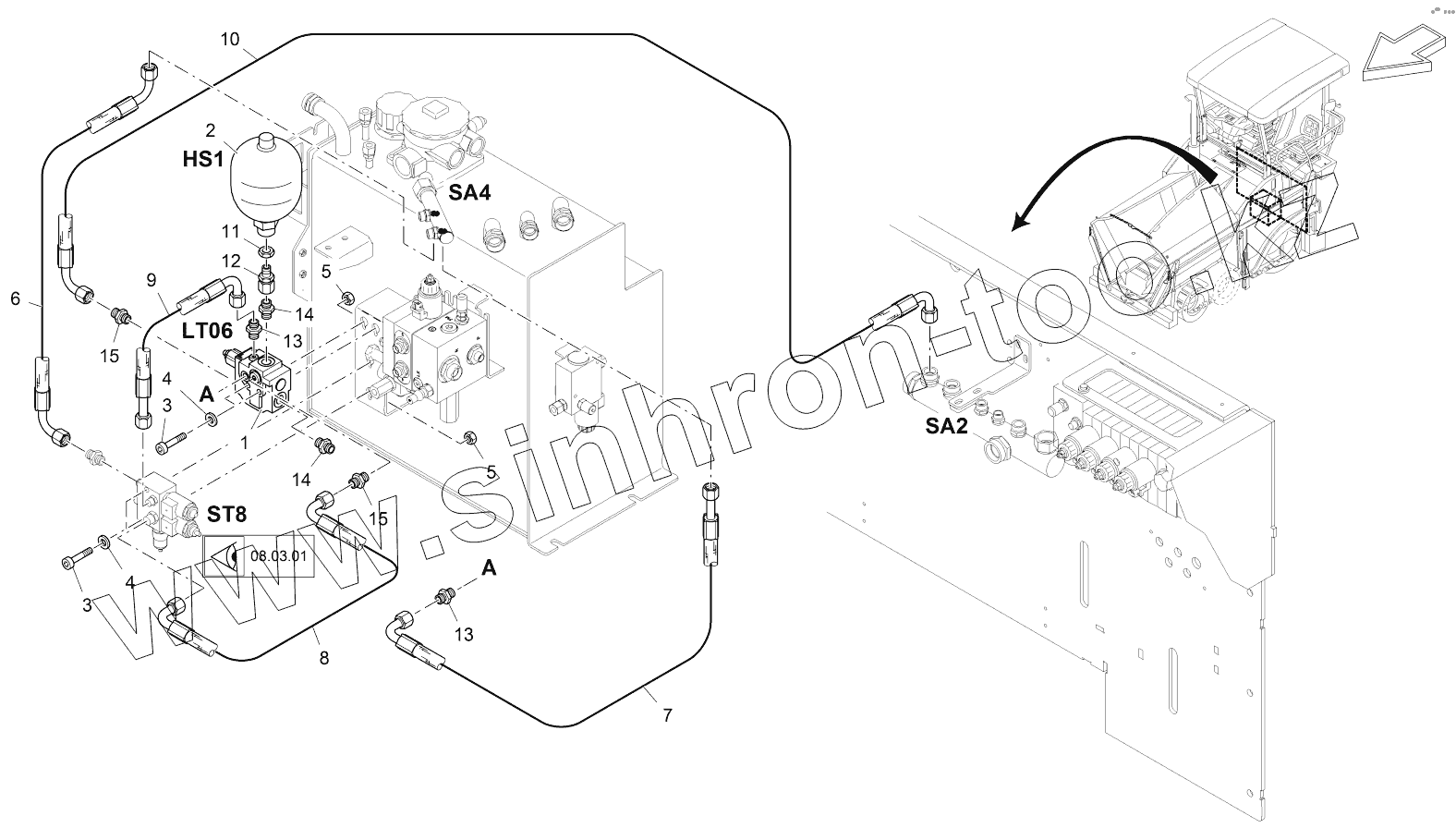

BRAKE (HYDRAULIC)
VALVE BLOCK:BRAKEE
DIFFERENTIAL PAWL, HYDR.
CONTROL BLOCK
ROAD TRAVEL HYDRAULIC
TOWING ATTACHMENT HYDR.
REVERSE MOTION/HORN
STEERING SYSTEM
STEERING (HYDR.)
STEERING, FRONT HYDRAULIC
DIRECTION INDICATOR
PUSH-ROLLER
MATERIAL HOPPER
MATERIAL HOPPER
HOPPER SIDE, LEFT (HYDRAULIC)
HOPPER SIDE, RIGHT (HYDRAULIC)
HOPPER FRONT (MECHANICAL)
FEEDGATE (HYDRAULIC)
FEEDGATE (HYDRAULIC)
DEFLECTION ROLLER
WEAR PLATE: CONVEYOR
DRIVING SHAFT: CONVEYOR
SCRAPER CHAIN
DRIVE: CONVEYOR
DRIVE: CONVEYOR, LEFT HYD.
DRIVE: CONVEYOR, RIGHT HYD.
CONTROL: MECHANICAL SENSOR
SUSPENSION: SPREADING AUGER
AUGER DRIVE
AUGER DRIVE
AUGER DRIVE
AUGER DRIVE: CHAIN ADJUSTER
AUGER DRIVE: CHAIN ADJUSTER
AUGER, LEFT (HYDRAULIC)
AUGER, RIGHT (HYDRAULIC)
HEIGHT ADJUSTMENT, MECHANICAL
HEIGHT ADJUSTMENT, AUGER HYDR.
AUGER SHAFT WITH BEARING
AUGER SHAFT WITH BEARING
AUGER SHAFT WITH BEARING
CONTROL: SENSOR FOR AUGER
SONIC SENSOR: AUGER
LIM. PLATE:AUGER TUNNEL,TURN.
LIM. PLATE:AUGER TUNNEL,TURN.
AUGER EXTENSION 4,2M
AUGER EXTENSION 4,5M
NIVELTRONIC PLUS, BASIC
BRACKET: 2ND SENSOR
MECHANICAL SCOPE SENSOR
ULTRASONIC SECTION SENSOR
ULTRASONIC SECTION SENSOR
ULTRASONIC SENSOR
PENDULUM
LASER SENSOR
SKI 2M
ACCESSORIES FOR STRINGLINE
CLEANING PUMP
CLEANING PUMP WITH TANK
SPRAY HOSE
SPRAY PUMP
REWINDER
LEVELLING SPARS
HYDRAULIC RAM, LEFT SIDE
HYDRAULIC RAM, RIGHT SIDE
SCREED LIFT-LOWER
SCREED ASSIST (HYDRAULIC)
SCREED ASSIST (HYDRAULIC)
VALVE BLOCK SCREED ASSIST
WIDTH CONTROL: SCREED
TAMPER HYDRAULICS
VIBRATION HYDRAULICS
SERVICE KIT, 50H
SERVICE KIT, 500H
SERVICE KIT, 1000H
VSS_MATERIAL HOPPER
VSS_RETURN PULLEY
VSS_DRIVE SHAFT, LEFT SIDE
VSS_DRIVE SHAFT, RIGHT SIDE
VSS_AUGER
VSS AUGER
VSS AUGER
SHOP KIT
ACCESSORIES
1
2
3
3
4
4
5
5
6
7
8
9
10
11
12
13
13
14
14
15
15
Позиция на иллюстрации
Заводской номер детали
Название детали
1
9608741000
VALVE
2
2001989
HYD ACCUMULATOR
3
9506370912
SCREW
4
9500647349
WASHER
5
9500060934
NUT
6
2077867
HOSE
7
3410021040
HOSE
8
2077960
HOSE
9
2077877
HOSE
10
2077930
HOSE
11
9630330010
NUT
12
9633170057
SCREW CONNECTION
13
9603080057
SCREW CONNECTION
14
9603190057
SCREW CONNECTION
15
9603130057
SCREW CONNECTION
