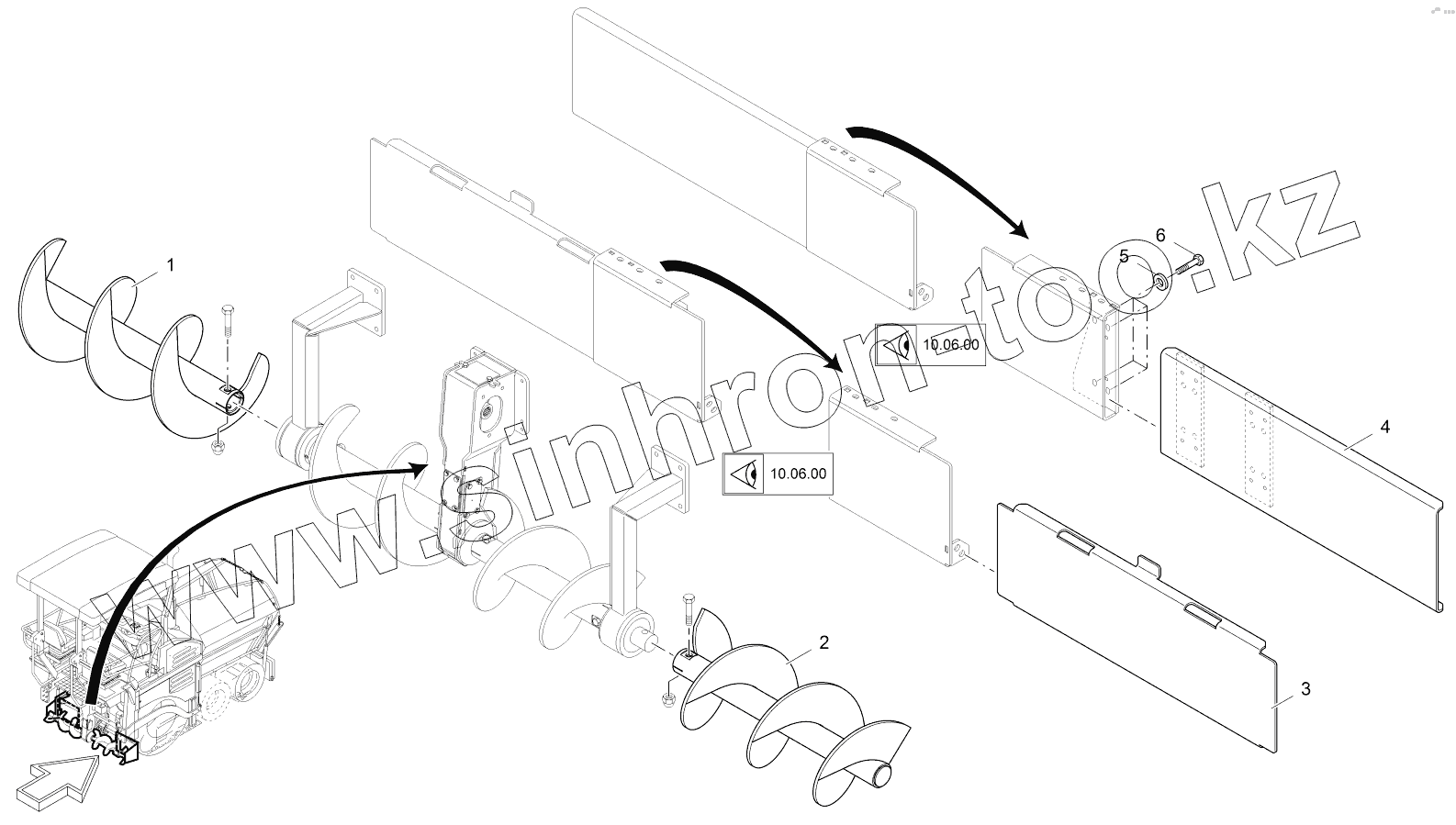

Каталог запасных частей к технике: VOGELE SUPER 1103-2. AUGER EXTENSION 4,5M

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано AB 340 (2016) AB500-2 TV (2011) AB500-3 TV (2016) SUPER 1100-3 (2021) SUPER 1103-2 (2016) SUPER 1300-3 (2021) SUPER 1303-2 (2016) SUPER 1600-2 (2015) SUPER 1800-2 (2015) SUPER 1800-2SJ (2015)

Схема > Не выбрано 0911 (SUPER 1103-2/1303-2) OPERATING INSTRUCTIONS/WARNING LEFT OPERATING INSTRUCTIONS/WARNING RIGHT OPERATING INSTRUCTIONS/WARNING FRONT OPERATING INSTRUCTIONS/WARNING REAR OPERATING INSTRUCTIONS/WARNING LEFT USA OPERATING INSTRUCTIONS/WARNING RIGHT USA OPERATING INSTRUCTIONS/WARNING FRONT USA OPERATING INSTRUCTIONS/WARNING REAR USA COVERING, LEFT SIDE COVERING, RIGHT SIDE COVERING, RIGHT SIDE ENGINE COVER ENGINE COVER ENGINE COVER WHEEL COVER WHEEL COVER LIGHTING, HALOGEN WITH ROOF LIGHTING WITH ROOF LIGHTING, HALOGEN LAMPS LIGHTING WITHOUT ROOF ADDITIONAL LIGHTING ROTARY BEACON HORN CHOCK ASCENT ASCENT CHASSIS CHASSIS OPERATOR CONSOLE: ELECTRICS CONTROL DESK CONSOLE SLIDE CONSOLE RAIL: POWER CABLE STEERING UNIT BRAKE UNIT STAGE MOUNT FOR SEAT WITH GUARD RAIL DRIVER'S SEAT LAT. OPERATOR'S CONSOLE CPL. LATERAL OPERATOR'S CONSOLE LATERAL OPERATOR'S CONSOLE LATERAL OPERATOR'S CONSOLE CANOPY FRAME COMPLETE CANOPY FRAME COMPLETE CAB ROOF ROOF WITH AWNING REAR VIEW MIRROR WITH FIXATION TOOLBOX, RIGHT TOOLBOX, LEFT SET OF TOOLS POWER UNIT TIER2 POWER UNIT TIER3 POWER UNIT TIER2 POWER UNIT TIER3 FUEL SUPPLY EXHAUST SYSTEM AIR INTAKE AIR INTAKE AIR INTAKE COOLING SYSTEM COOLING SYSTEM COOLING SYSTEM COOLING SYSTEM HYDRAULIC TANK PANOLIN PARTIAL FLOW FILTER PUMP SPLITTER GEARBOX PUMP: HYDRAULIC RAMS LEAKAGE CONVEYOR, HYDRAULIC CONVEYOR, HYDRAULIC CONVEYOR, HYDRAULIC CONVEYOR, HYDRAULIC CONVEYOR MIXED MAT., HYDR. CONVEYOR MIXED MAT., HYDR. RETURN RETURN CIRCUIT CROWN ADJUSTMENT ELECTRICAL SYSTEM: CROWN VALVE BLOCK: HYDRAULIC RAMS 1 VALVE BLOCK: HYDRAULIC RAMS VALVE BLOCK: HYDRAULIC RAMS VALVE BLOCK:TAMPER VALVE BLOCK:VIBRATORS VALVE BLOCK:SWITCHING SYS. VALVE BLOCK:CROWN BATTERY BRACKET POWER SUPPLY, 24 V CONTROL BOX:COMPL. CONTROL BOX:COMPL. CONTROL BOX:MECHANICAL CONTROL BOX:CONTROL UNIT CONTROL BOX:CONTROL UNIT CONTROL BOX:WIRE HARNESS HEATING BOX:COMPLETE HEATING BOX:MECHANICAL HEATING BOX:CONTROL UNIT HEATING BOX:CONTROL UNIT THREE-PHASE A.C. GENERATOR THREE-PHASE A.C. GENERATOR FRONT WHEELS, NOT POWERED FRONT WHEELS, POWERED FRONT-WHEEL DR.,HYDR. 6x4 (1) FRONT-WHEEL DR.,HYDR. 6x4 (2) FRONT-WHEEL DR.,HYDR. 6x4 (3) FRONT-WHEEL DR.,HYDR. 6x4 (4) VALVE BLOCK VALVE BLOCK TRACTION DRIVE, MECH, LEFT TRACTION DRIVE, LEFT SIDE TRACTION DRIVE, MECH, RIGHT TRACTION DRIVE, HYDR, RIGHT TYRE WATER-FILLED TYRES FEED,TRACTION DRIVE (HYDRAULIC) BRAKE (HYDRAULIC) VALVE BLOCK:BRAKEE DIFFERENTIAL PAWL, HYDR. CONTROL BLOCK ROAD TRAVEL HYDRAULIC TOWING ATTACHMENT HYDR. REVERSE MOTION/HORN STEERING SYSTEM STEERING (HYDR.) STEERING, FRONT HYDRAULIC DIRECTION INDICATOR PUSH-ROLLER MATERIAL HOPPER MATERIAL HOPPER HOPPER SIDE, LEFT (HYDRAULIC) HOPPER SIDE, RIGHT (HYDRAULIC) HOPPER FRONT (MECHANICAL) FEEDGATE (HYDRAULIC) FEEDGATE (HYDRAULIC) DEFLECTION ROLLER WEAR PLATE: CONVEYOR DRIVING SHAFT: CONVEYOR SCRAPER CHAIN DRIVE: CONVEYOR DRIVE: CONVEYOR, LEFT HYD. DRIVE: CONVEYOR, RIGHT HYD. CONTROL: MECHANICAL SENSOR SUSPENSION: SPREADING AUGER AUGER DRIVE AUGER DRIVE AUGER DRIVE AUGER DRIVE: CHAIN ADJUSTER AUGER DRIVE: CHAIN ADJUSTER AUGER, LEFT (HYDRAULIC) AUGER, RIGHT (HYDRAULIC) HEIGHT ADJUSTMENT, MECHANICAL HEIGHT ADJUSTMENT, AUGER HYDR. AUGER SHAFT WITH BEARING AUGER SHAFT WITH BEARING AUGER SHAFT WITH BEARING CONTROL: SENSOR FOR AUGER SONIC SENSOR: AUGER LIM. PLATE:AUGER TUNNEL,TURN. LIM. PLATE:AUGER TUNNEL,TURN. AUGER EXTENSION 4,2M AUGER EXTENSION 4,5M NIVELTRONIC PLUS, BASIC BRACKET: 2ND SENSOR MECHANICAL SCOPE SENSOR ULTRASONIC SECTION SENSOR ULTRASONIC SECTION SENSOR ULTRASONIC SENSOR PENDULUM LASER SENSOR SKI 2M ACCESSORIES FOR STRINGLINE CLEANING PUMP CLEANING PUMP WITH TANK SPRAY HOSE SPRAY PUMP REWINDER LEVELLING SPARS HYDRAULIC RAM, LEFT SIDE HYDRAULIC RAM, RIGHT SIDE SCREED LIFT-LOWER SCREED ASSIST (HYDRAULIC) SCREED ASSIST (HYDRAULIC) VALVE BLOCK SCREED ASSIST WIDTH CONTROL: SCREED TAMPER HYDRAULICS VIBRATION HYDRAULICS SERVICE KIT, 50H SERVICE KIT, 500H SERVICE KIT, 1000H VSS_MATERIAL HOPPER VSS_RETURN PULLEY VSS_DRIVE SHAFT, LEFT SIDE VSS_DRIVE SHAFT, RIGHT SIDE VSS_AUGER VSS AUGER VSS AUGER SHOP KIT ACCESSORIES

1

2

3

4

5

6

Позиция на иллюстрации	Заводской номер детали		Название детали
1	2014270		SPREADER AUGER LEFT SIDE
2	2014271		SPREADING AUGERS RH.
3	2049839		METAL PLATE
4	2116498		LIM. PLATE:AUGER TUNNEL
5	9501307349		WASHER
6	9512310933		SCREW

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
