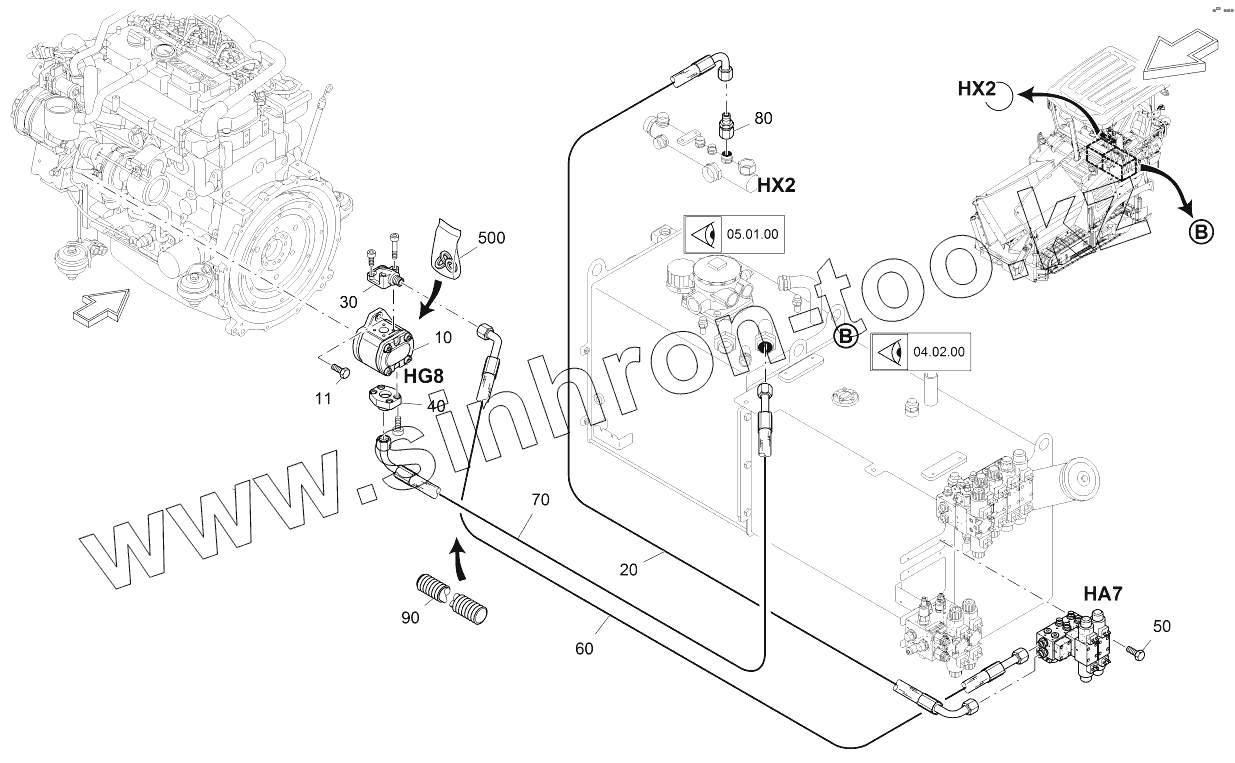

Каталог запасных частей к технике: VOGELE SUPER 1100-3. PUMP: HYDRAULIC RAMS

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано AB 340 (2016) AB500-2 TV (2011) AB500-3 TV (2016) SUPER 1100-3 (2021) SUPER 1103-2 (2016) SUPER 1300-3 (2021) SUPER 1303-2 (2016) SUPER 1600-2 (2015) SUPER 1800-2 (2015) SUPER 1800-2SJ (2015)

Схема > Не выбрано OPERATING INSTRUCTIONS/WARNING LEFT OPERATING INSTRUCTIONS/WARNING RIGHT OPERATING INSTRUCTIONS/WARNING FRONT OPERATING INSTRUCTIONS/WARNING REAR OPERATING INSTRUCTIONS/WARNING LEFT USA OPERATING INSTRUCTIONS/WARNING RIGHT USA OPERATING INSTRUCTIONS/WARNING FRONT USA OPERATING INSTRUCTIONS/WARNING REAR USA OPERATING INSTRUCTIONS/WARNING LRC OPERATING INSTRUCTIONS/WARNING HRC OPERATING INSTRUCTIONS/WARNING HRC COVERING, LEFT SIDE COVERING, RIGHT SIDE ENGINE COVER LIGHTING ADDITIONAL LIGHTING LIGHTING BALLOON LIGHTING BALLOON ROTARY BEACON WITHOUT ROOF ROTARY BEACON WITH ROOF HORN ASCENT CHASSIS CHASSIS OPERATOR CONSOLE:ELECTRICS CONSOLE SLIDE CONSOLE RAIL: POWER CABLE STAGE SEAT ADJUSTMENT DRIVER'S SEAT DRIVER'S SEAT+HEATING LATERAL OPERATOR'S CONSOLE CANOPY FRAME COMPLETE ROOF WITHOUT AWNING ROOF WITH AWNING UMBRELLA MOUNT FOR UMBRELLA MIRROR WITHOUT ROOF MIRROR WITH MOUNTING DEVICE OPERATOR'S STAND WITHOUT ROOF NEAR RANGE MIRROR WITH ROOF PAVEDOCK PAVEDOCK WITH ROOF TOOLBOX, LEFT TOOLBOX, RIGHT HOLDER ENGINE STATION DIESEL ENGINE ENGINE STATION DIESEL ENGINE FUEL SUPPLY EXHAUST SYSTEM EXHAUST SYSTEM COMBUSTION AIR COOLING SYSTEM FAN DRIVE FAN DRIVE HYDRAULIC TANK HYDRAULIC OIL COOLER PANOLIN PARTIAL FLOW FILTER HYDRAULIC OIL PUMP SPLITTER GEARBOX PUMP: HYDRAULIC RAMS LEAKAGE CONVEYOR MIXED MAT., HYDR. RETURN PUMP: HYDRAULIC RAMS CROWN ADJUSTMENT:HYDRAULIC VALVE BLOCK VALVE BLOCK VALVE BLOCK VALVE BLOCK SUSPENSION: VALVE BLOCKS BATTERY BRACKET 24 V POWER SUPPLY BATTERY CONTROL BOX:COMPL. CONTROL BOX:MECHANICAL CONTROL BOX:MOUNTING PLATE CONTROL BOX:CONTROL UNIT CONTROL BOX:INSULATION MOUNTING MATERIAL HEATING BOX:COMPLETE HEATING BOX:MECHANICAL HEATING BOX:CONTROL UNIT INSTALLATION PARTS THREE-PHASE A.C. GENERATOR CABLE HARNESS WITOS FLEETVIEW CRAWLER TRACK, LEFT SIDE CRAWLER TRACK, RIGHT SIDE ROLLER/CRAWLER TRACK FRONT IDLER TRACTION DRIVE, LEFT SIDE TRACTION DRIVE, HYDR, RIGHT FEED,TRACTION DRIVE(HYDRAULIC) BRAKE (HYDRAULIC) VALVE BLOCK PRE-WIPER LEVER PRE-WIPER STRIKE-OFF PLATE (HYDRAULIC) VALVE BLOCK REVERSE MOTION/HORN DIRECTION INDICATOR PUSH-ROLLER MATERIAL HOPPER HOPPER, LEFT SIDE: HYDRAULIC HOPPER, RIGHT SIDE: HYDRAULIC HOPPER FRONT (MECHANICAL) FEEDGATE (HYDRAULIC) FEEDGATE (HYDRAULIC) RETURN PULLEY COMPL. WEAR PLATE: CONVEYOR DRIVING SHAFT: CONVEYOR SCRAPER CHAIN DRIVE: CONVEYOR DRIVE: CONVEYOR, LEFT HYD. DRIVE: CONVEYOR, RIGHT HYD. CONTROL: MECHANICAL SENSOR SUSPENSION: SPREADING AUGER AUGER DRIVE AUGER DRIVE: CHAIN ADJUSTER AUGER, LEFT (HYDRAULIC) AUGER, RIGHT (HYDRAULIC) HEIGHT ADJUSTMENT, MECHANICAL HEIGHT ADJUSTMENT, MECHANICAL HEIGHT ADJUSTMENT, AUGER HYDR. AUGER SHAFT WITH BEARING CONTROL: SENSOR FOR AUGER SONIC SENSOR: AUGER LIM. PLATE:AUGER TUNNEL,TURN. AUGER EXTENSION 4,2M AUGER EXTENSION 4,5M AUGER EXTENSION WITHOUT VENTILATION SYSTEM NIVELTRONIC PLUS, BASIC HOLDER SYSTEM SENSOR BRACKET MECHANICAL SCOPE SENSOR ULTRASONIC SECTION SENSOR ULTRASONIC SENSOR SLOPE SENSOR LASER SENSOR SKI 2M CLEANER UNIT CLEANING PUMP WASHDOWN SYSTEM WITH TANK SPRAY PUMP LEVELLING SPARS HYDRAULIC RAM, LEFT SIDE HYDRAULIC RAM, RIGHT SIDE SCREED LIFT-LOWER SCREED ASSIST VALVE BLOCK WIDTH CONTROL: SCREED WITHOUT TAMPER TAMPER HYDRAULICS VALVE BLOCK VIBRATION HYDRAULICS SERVICE KIT, 50H SERVICE KIT, 500H SERVICE KIT, 1000H VSS_MATERIAL HOPPER VSS_RETURN PULLEY VSS_DRIVE SHAFT, LEFT SIDE VSS_DRIVE SHAFT, RIGHT SIDE VSS_AUGER BLADE VSS_AUGER SHOP KIT ILLUSTRATION OPER. MATERIALS ACCESSORIES TOOLS

10

11

20

30

40

50

60

70

80

90

500

Позиция на иллюстрации	Заводской номер детали		Название детали
10	2234412		HYDRAULIC PUMP
11	9510257984		SCREW
20	2294415		HYDRAULIC HOSE
30	9612991106		SCREW CONNECTION
40	9612221010		SCREW CONNECTION
50	2069598		SCREW
60	2293938		HYDRAULIC HOSE
70	2293945		HYDRAULIC HOSE
80	9618440060		SCREW CONNECTION
90	2546716		WIRE PROTECTING SLEEVE
500	2323445		SEALING

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
