Каталог запасных частей к технике: VOGELE SUPER 1100-3. FUEL SUPPLY
10
11
12
12
13
13
14
14
15
15
15
20
21
30
40
50
60
60
70
70
71
72
73
73
74
74
120
130
140
150
180
190
190
200
200
220
221
222
223
230
240
240
250
260
270
280
300
310

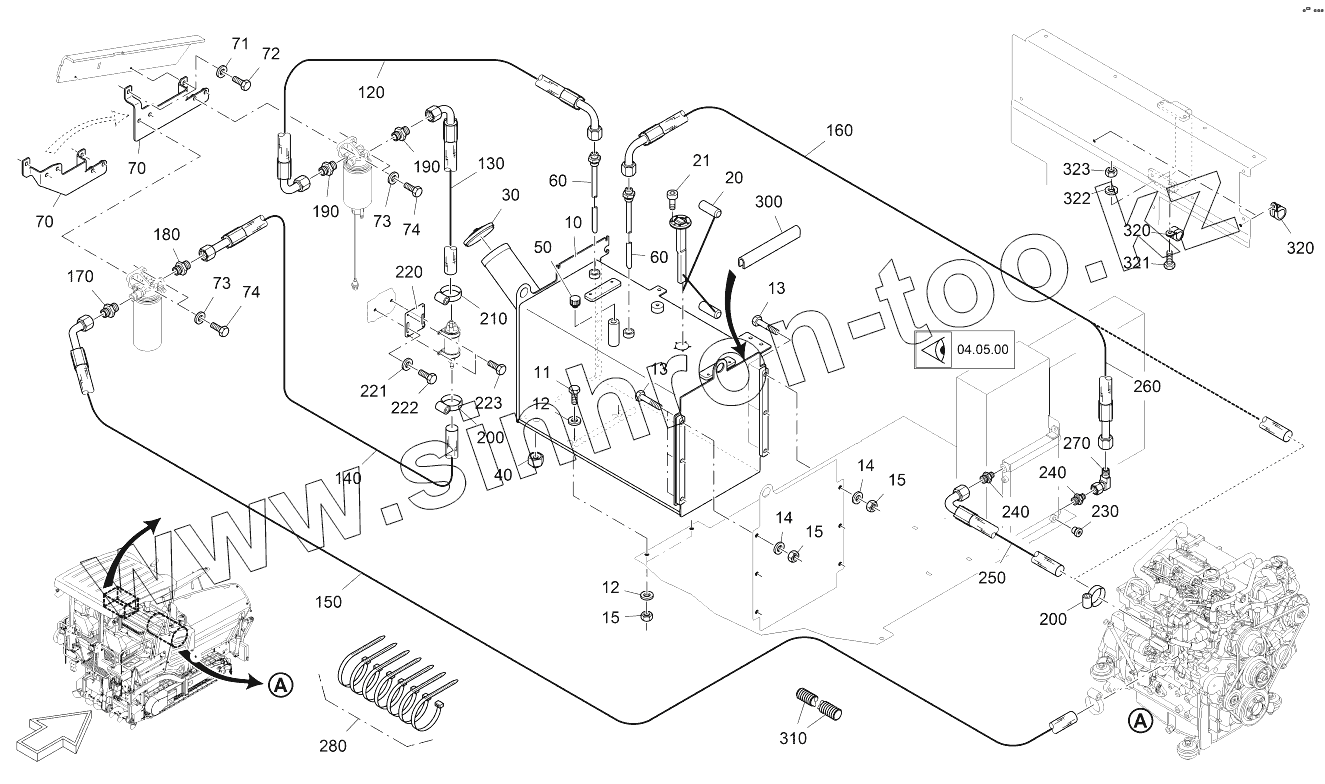

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | 2251368 | FUEL TANK | |
| 11 | 9512320933 | SCREW | |
| 12 | 9501307349 | WASHER | |
| 13 | 9512330931 | SCREW | |
| 14 | 9500130125 | WASHER | |
| 15 | 9500120934 | NUT | |
| 20 | 2049287 | LEVEL SENSOR: TANK | |
| 21 | 9505200912 | SCREW | |
| 30 | 4619112004 | BAYONET LOCK | |
| 40 | 9638050057 | FILLER CAP | |
| 50 | 2065390 | VENT SCREW | |
| 60 | 2252270 | INTAKE PIPE | |
| 70 | 2257438 | METAL PLATE | |
| 71 | 9500847349 | WASHER | |
| 72 | 9508200933 | SCREW | |
| 73 | 9501057349 | WASHER | |
| 74 | 9510300933 | SCREW | |
| 120 | 2403612 | HYDRAULIC HOSE | |
| 130 | 2310187 | HYDRAULIC HOSE | |
| 140 | 2310188 | HYDRAULIC HOSE | |
| 150 | 2546624 | HOSE | |
| 180 | 9603120057 | SCREW CONNECTION | |
| 190 | 9603160057 | SCREW CONNECTION | |
| 200 | 9510103017 | HOSE CLAMP | |
| 220 | 2306155 | METAL PLATE | |
| 221 | 9500847349 | WASHER | |
| 222 | 9508200933 | SCREW | |
| 223 | 9505080933 | SCREW | |
| 230 | 9637140057 | FILLER CAP | |
| 240 | 9603130057 | SCREW CONNECTION | |
| 250 | 2102762 | HOSE | |
| 260 | 2403615 | HYDRAULIC HOSE | |
| 270 | 9627120057 | SCREW CONNECTION | |
| 280 | 3515080179 | CABLE TAPE | |
| 300 | 4610600001 | JOINING PIECE | |
| 310 | 3515074560 | SPIRAL HOSE |
