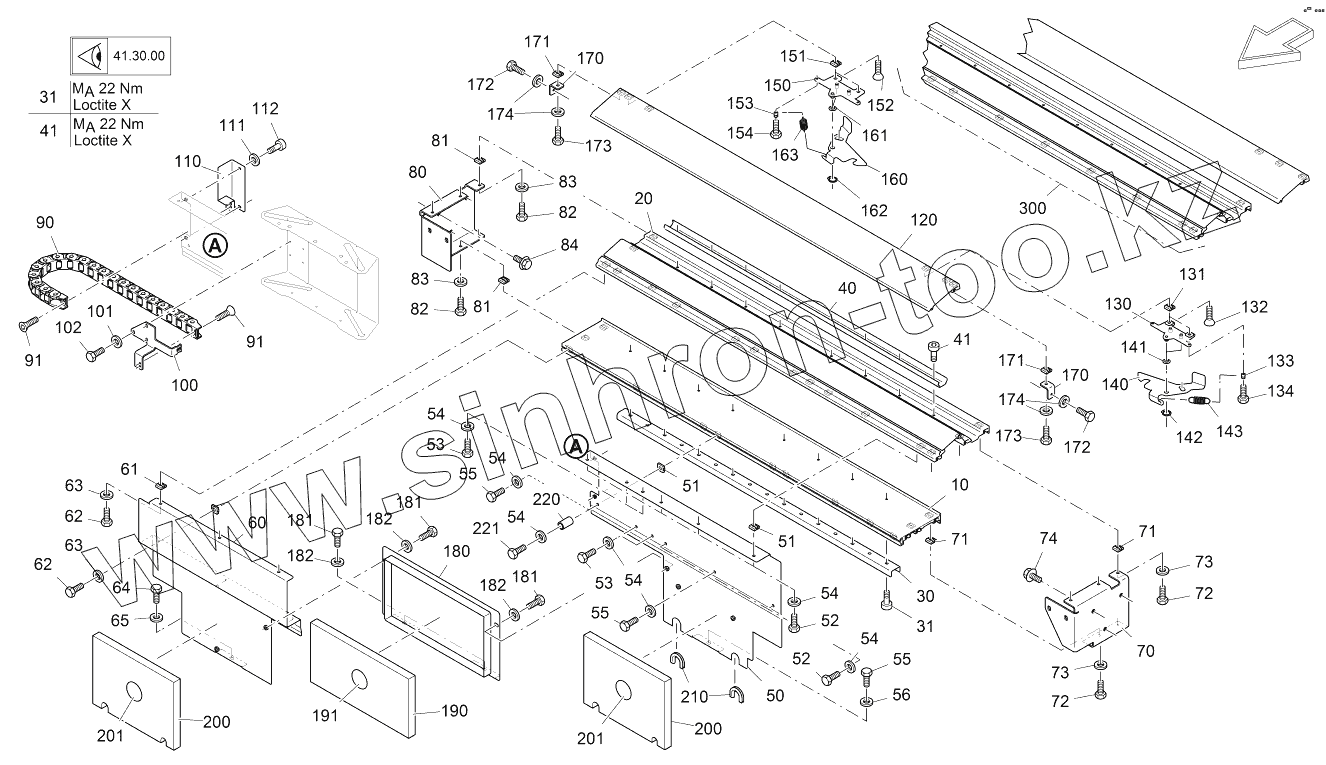

Каталог запасных частей к технике: VOGELE SUPER 1100-3. CONSOLE RAIL: POWER CABLE
10
30
31
31
40
41
41
50
51
51
52
52
53
53
54
54
54
54
54
54
55
55
55
56
60
61
62
62
63
63
64
65
70
71
71
72
72
73
73
74
80
81
81
82
82
83
83
84
90
91
91
100
101
102
110
111
112
130
131
132
133
134
140
141
142
143
150
151
152
153
154
160
161
162
163
170
170
171
171
172
172
173
173
174
174
180
181
181
181
182
182
182
190
191
200
200
201
201
210
220
221
300
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | 2505279 | JOINING PIECE | |
| 30 | 2261408 | GUIDE RAIL | |
| 31 | 2196843 | SCREW | |
| 40 | 2261422 | GUIDE RAIL | |
| 41 | 2196843 | SCREW | |
| 50 | 2303621 | METAL PLATE | |
| 51 | 2034264 | THREADED PLATE | |
| 52 | 9508160933 | SCREW | |
| 53 | 9508250933 | SCREW | |
| 54 | 9500080125 | WASHER | |
| 55 | 9508200933 | SCREW | |
| 56 | 9500847349 | WASHER | |
| 60 | 2303745 | METAL PLATE | |
| 61 | 2034264 | THREADED PLATE | |
| 62 | 9508160933 | SCREW | |
| 63 | 9500080125 | WASHER | |
| 64 | 9508200933 | SCREW | |
| 65 | 9500847349 | WASHER | |
| 70 | 2261508 | HOLDER LEFT | |
| 71 | 2034264 | THREADED PLATE | |
| 72 | 9508180933 | SCREW | |
| 73 | 9500080125 | WASHER | |
| 74 | 2007173 | SCREW | |
| 80 | 2261500 | HOLDER RIGHT | |
| 81 | 2034264 | THREADED PLATE | |
| 82 | 9508180933 | SCREW | |
| 83 | 9500080125 | WASHER | |
| 84 | 2007173 | SCREW | |
| 90 | 2265535 | ENERGY CHAIN | |
| 91 | 2026908 | SCREW | |
| 100 | 2210416 | METAL PLATE | |
| 101 | 9500060125 | WASHER | |
| 102 | 9506120933 | SCREW | |
| 110 | 2265617 | METAL PLATE | |
| 111 | 9500647349 | WASHER | |
| 112 | 9506160912 | SCREW | |
| 130 | 2261494 | HOLDER | |
| 131 | 2034264 | THREADED PLATE | |
| 132 | 9508207991 | SCREW | |
| 133 | 2025212 | SLEEVE | |
| 134 | 9506250933 | SCREW | |
| 140 | 2261466 | LEVER | |
| 141 | 2026113 | WASHER | |
| 142 | 9500120471 | SEEGER CIRCLIP RING | |
| 143 | 2026109 | SPRING | |
| 150 | 2274742 | HOLDER | |
| 151 | 2034264 | THREADED PLATE | |
| 152 | 9508207991 | SCREW | |
| 153 | 2025212 | SLEEVE | |
| 154 | 9506250933 | SCREW | |
| 160 | 2261459 | LEVER | |
| 161 | 2026113 | WASHER | |
| 162 | 9500120471 | SEEGER CIRCLIP RING | |
| 163 | 2026109 | SPRING | |
| 170 | 2261496 | METAL PLATE | |
| 171 | 2034264 | THREADED PLATE | |
| 172 | 9508160933 | SCREW | |
| 173 | 9508200933 | SCREW | |
| 174 | 9500847349 | WASHER | |
| 180 | 2292620 | FLAP | |
| 181 | 9508200933 | SCREW | |
| 182 | 9500847349 | WASHER | |
| 190 | 2299378 | FOAM RUBBER | |
| 191 | 9642030041 | CAP | |
| 200 | 2299387 | FOAM RUBBER | |
| 201 | 9642030041 | CAP | |
| 210 | 4610600001 | JOINING PIECE | |
| 220 | 2546186 | PIPE | |
| 221 | 9508340933 | SCREW | |
| 300 | 2505860 | KIT |
