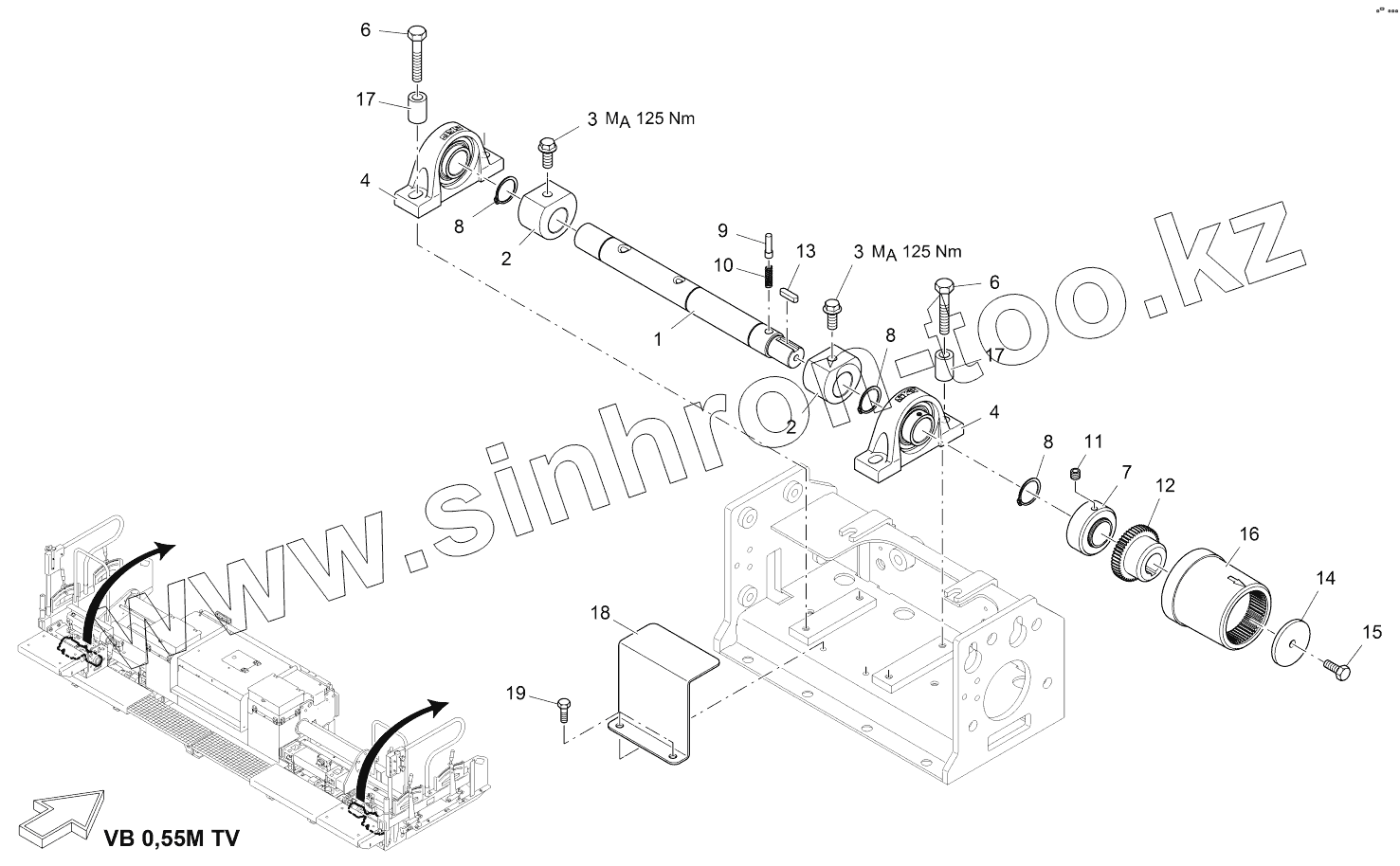

Каталог запасных частей к технике: VOGELE AB 340. VIBRATORS VB 0,55M
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
AB 340 (2016)
AB500-2 TV (2011)
AB500-3 TV (2016)
SUPER 1100-3 (2021)
SUPER 1103-2 (2016)
SUPER 1300-3 (2021)
SUPER 1303-2 (2016)
SUPER 1600-2 (2015)
SUPER 1800-2 (2015)
SUPER 1800-2SJ (2015)
Схема
>
Не выбрано
OPERATING INSTRUCTIONS/WARNING
OPERATING INSTRUCTIONS/WARNING USA
TAMPER SHIELD
TAMPER SHIELD, BASIC SCREED LE
TAMPER SHIELD, BASIC SCREED LE
TAMPER SHIELD, BASIC SCREED RI
TAMPER SHIELD, BASIC SCREED RI
TAMPER SHIELD, EXT. UNIT LEFT
TAMPER SHIELD, EXT. UNIT LEFT
TAMPER SHIELD, EXT. UNIT RIGHT
TAMPER SHIELD, EXT. UNIT RIGHT
TAMPER SHIELD, BASIC SCREED LE
TAMPER SHIELD, BASIC SCREED RI
TAMPER SHIELD, EXT. UNIT LEFT
TAMPER SHIELD, EXT. UNIT RIGHT
TAMPER
TAMPER: BASIC SCREED, LEFT
TAMPER: BASIC SCREED, RIGHT
TAMPER: EXTENDING UNIT, LEFT
TAMPER: EXTENDING UNIT, RIGHT
TROWEL
TROWEL: BASIC SCREED
FRAME: EXTENDING UNIT, LEFT
FRAME: EXTENDING PART, RIGHT
SCREED PLATE V
SCREED PLATE V
SCREED PLATE TV
VIBRATORS
VIBRATORS: BASIC SCREED, LEFT
VIBRATORS: BASIC SCREED, RIGHT
VIBRATORS: EXTENDING UNIT, LH
VIBRATORS: EXTENDING UNIT, RH
MOUNTING
SUSPENSION: EXTENDING UNIT LH
SUSPENSION: EXTENDING UNIT RH
SLIDING RESTRAINT SYSTEM LH
SLIDING RESTRAINT SYSTEM RH
WIPER
STRIKE-OFF PLATE, LH 0,39M
STRIKE-OFF PLATE, RH 0,39M
STRIKE-OFF PLATE, LH 0,60M
STRIKE-OFF PLATE, RH 0,60M
HEIGHT ADJUSTMENT
HEIGHT ADJUSTMENT, LEFT SIDE
HEIGHT ADJUSTMENT, RIGHT SIDE
CROWN ADJUSTMENT
CROWN ADJUSTMENT
CROWN ADJUSTMENT WITH DRIVE
CROWN ADJUSTMENT, HYDR.
COVER
COVER
WALKWAY
WALKWAY
LATERAL SLIDE
END PLATE, LEFT
END PLATE, LEFT
END PLATE, RIGHT
END PLATE, RIGHT
CUT-OFF SHOE
CUT-OFF SHOE
BEVEL IRON
BEVEL IRON
BEVEL IRON
HYDRAULIC INSTALLATION
HYDRAULIC DRIVE: TAMPER
HYDRAULIC DRIVE: VIBRATORS
HYDRAULIC RAM 2, LEFT SIDE
HYDRAULIC RAM 1, RIGHT SIDE
LEAKAGE OIL: VIBRATORS
LEAKAGE OIL: VIBRATORS
LEAKAGE OIL: TAMPER TV
RETURN
HEATING
DISTRIBUTOR: SCREED HEATING
DISTRIBUTOR: SCREED HEATING
DISTRIBUTOR: SCREED HEATING
HEATING: SCREED PLATE, LEFT
HEATING: SCREED PLATE, RIGHT
HEATING: SCREED PLATE, LEFT
HEATING: SCREED PLATE, RIGHT
HEATING: SCREED PLATE, LEFT
HEATING: SCREED PLATE, RIGHT
HEATING: SCREED PLATE, LEFT
HEATING: SCREED PLATE, RIGHT
VB-TAMPER SHIELD
TAMPER SHIELD: VB 0,25M, LH
TAMPER SHIELD: VB 0,25M, RH
FRONT WALL LEFT
FRONT WALL RIGHT
FRONT WALL LEFT
TAMPER SHIELD: VB 0,40M, LH
FRONT WALL RIGHT
TAMPER SHIELD: VB 0,40M, RH
FRONT WALL LEFT
FRONT WALL RIGHT
FRONT WALL LEFT
FRONT WALL RIGHT
FRONT WALL LEFT
FRONT WALL RIGHT
VB-TAMPER
TAMPER, LEFT SIDE
TAMPER, RIGHT SIDE
TAMPER, LEFT SIDE
TAMPER, RIGHT SIDE
TAMPER, LEFT SIDE
TAMPER, RIGHT SIDE
TAMPER, LEFT SIDE
TAMPER, RIGHT SIDE
VB-FRAME
TROWEL, LEFT SIDE
TROWEL, RIGHT SIDE
TROWEL, LEFT SIDE
TROWEL, RIGHT SIDE
TROWEL, LEFT SIDE
FRAME: VB 0,40M, LEFT SIDE
TROWEL, RIGHT SIDE
FRAME: VB 0,40M, RIGHT SIDE
TROWEL, LEFT SIDE
TROWEL, RIGHT SIDE
TROWEL, LEFT SIDE
TROWEL, RIGHT SIDE
TROWEL, LEFT SIDE
TROWEL, RIGHT SIDE
VB-VIBRATION
VIBRATORS VB 0,40M
VIBRATORS VB 0,55M
VIBRATORS VB 0,80M
VB-COVERING
PROTECTIVE HOOP
PROTECTIVE HOOP
PROTECTIVE HOOP
VB-FOOTBOARD
WALKWAY
WALKWAY
WALKWAY, RIGHT SIDE
WALKWAY
WALKWAY, RIGHT SIDE
WALKWAY
VB-HEATING
HEATING VB
HEATING: SCREED PLATE
HEATING: SCREED PLATE, LEFT
HEATING: SCREED PLATE, RIGHT
HEATING: SCREED PLATE, LEFT
HEATING: SCREED PLATE, RIGHT
HEATING: SCREED PLATE, LEFT
HEATING: SCREED PLATE, RIGHT
HEATING: SCREED PLATE, LEFT
HEATING: SCREED PLATE, RIGHT
SERVICE SETS
VSS_BASIC SCREED V
VSS_BASIC SCREED V
VSS_BASIC SCREED TV
VSS_BOLT-ON EXTENSION 0,25M V
VSS_BOLT-ON EXTENSION 0,25M T
VSS_BOLT-ON EXTENSION 0,40M V
VSS_BOLT-ON EXTENSION 0,40M V
VSS_BOLT-ON EXTENSION 0,40M TV
VSS_BOLT-ON EXTENSION 0,55M TV
VSS_BOLT-ON EXTENSION 0,80M TV
1
2
2
3
3
4
4
6
6
7
8
8
8
9
10
11
12
13
14
15
16
17
17
18
19
Позиция на иллюстрации
Заводской номер детали
Название детали
1
2047059
SHAFT
2
2043658
ECCENTRIC
3
2012088
SCREW
4
2045389
BEARING
6
9512380931
SCREW
7
4618322019
SET COLLAR
8
9500350471
SEEGER CIRCLIP RING
9
4623152016
TENON
10
4606042014
COMPRESSION SPRING
11
9512100551
THREADED PIN
12
4610222032
COUPLING HUB
13
9508306885
FEATHER KEY
14
4618042116
WASHER
15
9510200933
SCREW
16
4610222031
COUPLING SLEEVE
17
2100460
SLEEVE
18
2056457
METAL PLATE
19
9508250933
SCREW
