Каталог запасных частей к технике: VOGELE AB 340. TAMPER SHIELD, EXT. UNIT RIGHT

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано AB 340 (2016) AB500-2 TV (2011) AB500-3 TV (2016) SUPER 1100-3 (2021) SUPER 1103-2 (2016) SUPER 1300-3 (2021) SUPER 1303-2 (2016) SUPER 1600-2 (2015) SUPER 1800-2 (2015) SUPER 1800-2SJ (2015)

Схема > Не выбрано OPERATING INSTRUCTIONS/WARNING OPERATING INSTRUCTIONS/WARNING USA TAMPER SHIELD TAMPER SHIELD, BASIC SCREED LE TAMPER SHIELD, BASIC SCREED LE TAMPER SHIELD, BASIC SCREED RI TAMPER SHIELD, BASIC SCREED RI TAMPER SHIELD, EXT. UNIT LEFT TAMPER SHIELD, EXT. UNIT LEFT TAMPER SHIELD, EXT. UNIT RIGHT TAMPER SHIELD, EXT. UNIT RIGHT TAMPER SHIELD, BASIC SCREED LE TAMPER SHIELD, BASIC SCREED RI TAMPER SHIELD, EXT. UNIT LEFT TAMPER SHIELD, EXT. UNIT RIGHT TAMPER TAMPER: BASIC SCREED, LEFT TAMPER: BASIC SCREED, RIGHT TAMPER: EXTENDING UNIT, LEFT TAMPER: EXTENDING UNIT, RIGHT TROWEL TROWEL: BASIC SCREED FRAME: EXTENDING UNIT, LEFT FRAME: EXTENDING PART, RIGHT SCREED PLATE V SCREED PLATE V SCREED PLATE TV VIBRATORS VIBRATORS: BASIC SCREED, LEFT VIBRATORS: BASIC SCREED, RIGHT VIBRATORS: EXTENDING UNIT, LH VIBRATORS: EXTENDING UNIT, RH MOUNTING SUSPENSION: EXTENDING UNIT LH SUSPENSION: EXTENDING UNIT RH SLIDING RESTRAINT SYSTEM LH SLIDING RESTRAINT SYSTEM RH WIPER STRIKE-OFF PLATE, LH 0,39M STRIKE-OFF PLATE, RH 0,39M STRIKE-OFF PLATE, LH 0,60M STRIKE-OFF PLATE, RH 0,60M HEIGHT ADJUSTMENT HEIGHT ADJUSTMENT, LEFT SIDE HEIGHT ADJUSTMENT, RIGHT SIDE CROWN ADJUSTMENT CROWN ADJUSTMENT CROWN ADJUSTMENT WITH DRIVE CROWN ADJUSTMENT, HYDR. COVER COVER WALKWAY WALKWAY LATERAL SLIDE END PLATE, LEFT END PLATE, LEFT END PLATE, RIGHT END PLATE, RIGHT CUT-OFF SHOE CUT-OFF SHOE BEVEL IRON BEVEL IRON BEVEL IRON HYDRAULIC INSTALLATION HYDRAULIC DRIVE: TAMPER HYDRAULIC DRIVE: VIBRATORS HYDRAULIC RAM 2, LEFT SIDE HYDRAULIC RAM 1, RIGHT SIDE LEAKAGE OIL: VIBRATORS LEAKAGE OIL: VIBRATORS LEAKAGE OIL: TAMPER TV RETURN HEATING DISTRIBUTOR: SCREED HEATING DISTRIBUTOR: SCREED HEATING DISTRIBUTOR: SCREED HEATING HEATING: SCREED PLATE, LEFT HEATING: SCREED PLATE, RIGHT HEATING: SCREED PLATE, LEFT HEATING: SCREED PLATE, RIGHT HEATING: SCREED PLATE, LEFT HEATING: SCREED PLATE, RIGHT HEATING: SCREED PLATE, LEFT HEATING: SCREED PLATE, RIGHT VB-TAMPER SHIELD TAMPER SHIELD: VB 0,25M, LH TAMPER SHIELD: VB 0,25M, RH FRONT WALL LEFT FRONT WALL RIGHT FRONT WALL LEFT TAMPER SHIELD: VB 0,40M, LH FRONT WALL RIGHT TAMPER SHIELD: VB 0,40M, RH FRONT WALL LEFT FRONT WALL RIGHT FRONT WALL LEFT FRONT WALL RIGHT FRONT WALL LEFT FRONT WALL RIGHT VB-TAMPER TAMPER, LEFT SIDE TAMPER, RIGHT SIDE TAMPER, LEFT SIDE TAMPER, RIGHT SIDE TAMPER, LEFT SIDE TAMPER, RIGHT SIDE TAMPER, LEFT SIDE TAMPER, RIGHT SIDE VB-FRAME TROWEL, LEFT SIDE TROWEL, RIGHT SIDE TROWEL, LEFT SIDE TROWEL, RIGHT SIDE TROWEL, LEFT SIDE FRAME: VB 0,40M, LEFT SIDE TROWEL, RIGHT SIDE FRAME: VB 0,40M, RIGHT SIDE TROWEL, LEFT SIDE TROWEL, RIGHT SIDE TROWEL, LEFT SIDE TROWEL, RIGHT SIDE TROWEL, LEFT SIDE TROWEL, RIGHT SIDE VB-VIBRATION VIBRATORS VB 0,40M VIBRATORS VB 0,55M VIBRATORS VB 0,80M VB-COVERING PROTECTIVE HOOP PROTECTIVE HOOP PROTECTIVE HOOP VB-FOOTBOARD WALKWAY WALKWAY WALKWAY, RIGHT SIDE WALKWAY WALKWAY, RIGHT SIDE WALKWAY VB-HEATING HEATING VB HEATING: SCREED PLATE HEATING: SCREED PLATE, LEFT HEATING: SCREED PLATE, RIGHT HEATING: SCREED PLATE, LEFT HEATING: SCREED PLATE, RIGHT HEATING: SCREED PLATE, LEFT HEATING: SCREED PLATE, RIGHT HEATING: SCREED PLATE, LEFT HEATING: SCREED PLATE, RIGHT SERVICE SETS VSS_BASIC SCREED V VSS_BASIC SCREED V VSS_BASIC SCREED TV VSS_BOLT-ON EXTENSION 0,25M V VSS_BOLT-ON EXTENSION 0,25M T VSS_BOLT-ON EXTENSION 0,40M V VSS_BOLT-ON EXTENSION 0,40M V VSS_BOLT-ON EXTENSION 0,40M TV VSS_BOLT-ON EXTENSION 0,55M TV VSS_BOLT-ON EXTENSION 0,80M TV

1

2

3

3

4

4

5

5

6

6

7

8

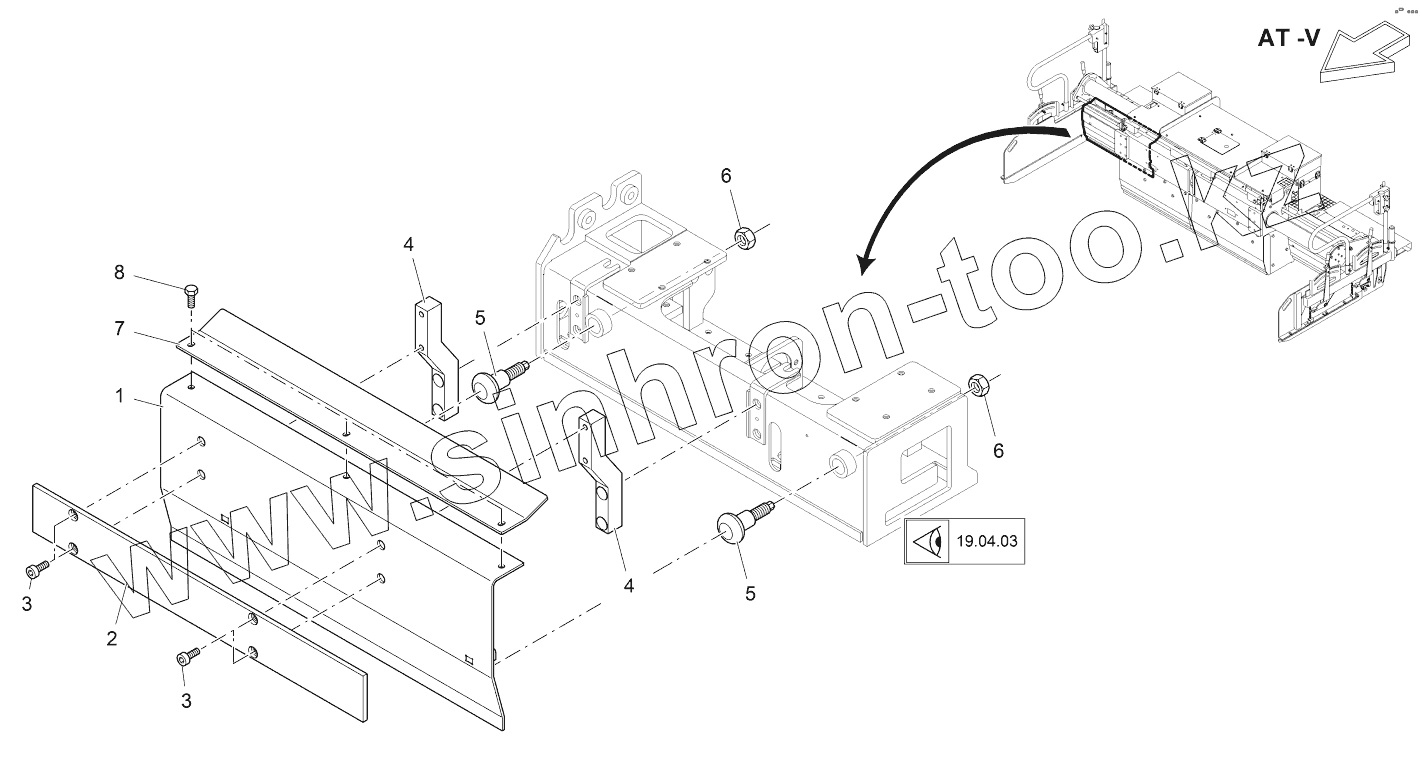

Позиция на иллюстрации	Заводской номер детали		Название детали
1	2060837		TAMPER SHIELD, EXT. SCREED
2	2044027		METAL PLATE
3	9512307984		SCREW
4	4602427802		METAL PLATE
5	4618242243		SCREW
6	9500200934		NUT
7	2055247		METAL PLATE
8	9508200933		SCREW

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
