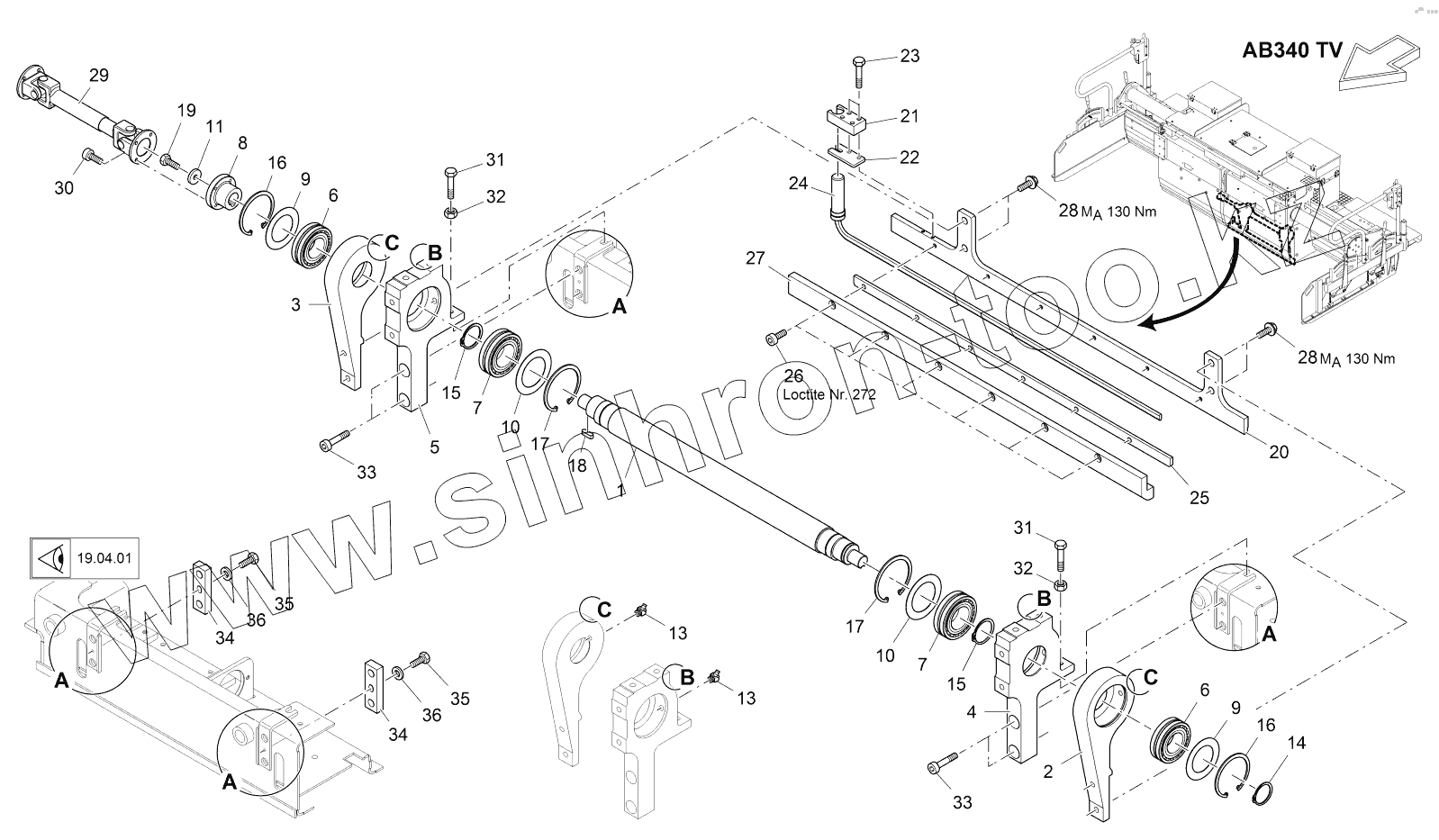

Каталог запасных частей к технике: VOGELE AB 340. TAMPER: BASIC SCREED, LEFT
1
2
3
4
5
6
6
7
7
8
9
9
10
10
11
13
13
14
15
15
16
16
17
17
18
19
20
21
22
23
24
25
26
27
28
28
29
30
31
31
32
32
33
33
34
34
35
35
36
36
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2043700 | ECCENTRIC SHAFT | |
| 2 | 4615042061 | CONNECTING ROD | |
| 3 | 4615042062 | CONNECTING ROD | |
| 4 | 4611052120 | BEARING, LEFT | |
| 5 | 4611052121 | BEARING, RIGHT | |
| 6 | 9540080635 | SELF-ALIGNING ROLLER BEARING | |
| 7 | 9540100635 | SELF-ALIGNING ROLLER BEARING | |
| 8 | 4606172418 | FLANGE | |
| 9 | 4618042822 | WASHER | |
| 10 | 4618042823 | WASHER | |
| 11 | 9500090440 | WASHER | |
| 13 | 9602100054 | GREASING NIPPLE | |
| 14 | 9500400471 | SEEGER RING | |
| 15 | 9500450471 | SEEGER RING | |
| 16 | 9500820472 | SEEGER CIRCLIP RING | |
| 17 | 9500880472 | SEEGER CIRCLIP RING | |
| 18 | 9508256885 | FEATHER KEY | |
| 19 | 9508200933 | SCREW | |
| 20 | 2043705 | PLATE, LEFT SIDE | |
| 21 | 2004887 | HOLDER | |
| 22 | 2004903 | METAL PLATE | |
| 23 | 9506310933 | SCREW | |
| 24 | 2044960 | HEATING ROD | |
| 25 | 2043709 | METAL PLATE | |
| 26 | 2117865 | SCREW | |
| 27 | 2043707 | TAMPER BAR | |
| 28 | 2007173 | SCREW | |
| 29 | 4607180017 | CARDAN SHAFT WITH JOINT | |
| 30 | 9506160912 | SCREW | |
| 31 | 95103609 | SCREW | |
| 32 | 9500100934 | NUT | |
| 33 | 9516340912 | SCREW | |
| 34 | 4620022158 | SUPPORTING PLATE | |
| 35 | 9508250933 | SCREW | |
| 36 | 95000801 | WASHER |
