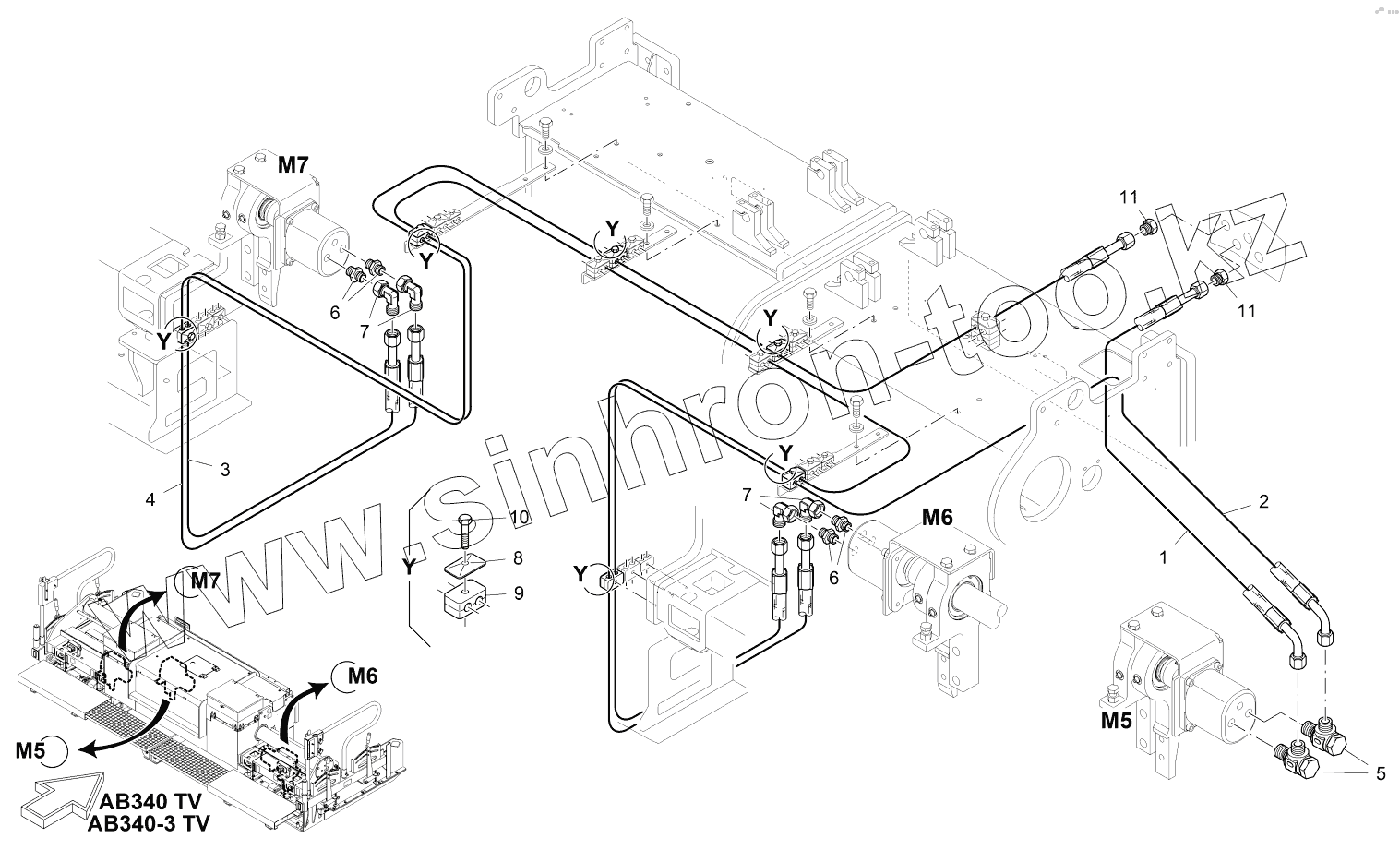

Каталог запасных частей к технике: VOGELE AB 340. HYDRAULIC DRIVE: TAMPER
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
AB 340 (2016)
AB500-2 TV (2011)
AB500-3 TV (2016)
SUPER 1100-3 (2021)
SUPER 1103-2 (2016)
SUPER 1300-3 (2021)
SUPER 1303-2 (2016)
SUPER 1600-2 (2015)
SUPER 1800-2 (2015)
SUPER 1800-2SJ (2015)
Схема
>
Не выбрано
OPERATING INSTRUCTIONS/WARNING
OPERATING INSTRUCTIONS/WARNING USA
TAMPER SHIELD
TAMPER SHIELD, BASIC SCREED LE
TAMPER SHIELD, BASIC SCREED LE
TAMPER SHIELD, BASIC SCREED RI
TAMPER SHIELD, BASIC SCREED RI
TAMPER SHIELD, EXT. UNIT LEFT
TAMPER SHIELD, EXT. UNIT LEFT
TAMPER SHIELD, EXT. UNIT RIGHT
TAMPER SHIELD, EXT. UNIT RIGHT
TAMPER SHIELD, BASIC SCREED LE
TAMPER SHIELD, BASIC SCREED RI
TAMPER SHIELD, EXT. UNIT LEFT
TAMPER SHIELD, EXT. UNIT RIGHT
TAMPER
TAMPER: BASIC SCREED, LEFT
TAMPER: BASIC SCREED, RIGHT
TAMPER: EXTENDING UNIT, LEFT
TAMPER: EXTENDING UNIT, RIGHT
TROWEL
TROWEL: BASIC SCREED
FRAME: EXTENDING UNIT, LEFT
FRAME: EXTENDING PART, RIGHT
SCREED PLATE V
SCREED PLATE V
SCREED PLATE TV
VIBRATORS
VIBRATORS: BASIC SCREED, LEFT
VIBRATORS: BASIC SCREED, RIGHT
VIBRATORS: EXTENDING UNIT, LH
VIBRATORS: EXTENDING UNIT, RH
MOUNTING
SUSPENSION: EXTENDING UNIT LH
SUSPENSION: EXTENDING UNIT RH
SLIDING RESTRAINT SYSTEM LH
SLIDING RESTRAINT SYSTEM RH
WIPER
STRIKE-OFF PLATE, LH 0,39M
STRIKE-OFF PLATE, RH 0,39M
STRIKE-OFF PLATE, LH 0,60M
STRIKE-OFF PLATE, RH 0,60M
HEIGHT ADJUSTMENT
HEIGHT ADJUSTMENT, LEFT SIDE
HEIGHT ADJUSTMENT, RIGHT SIDE
CROWN ADJUSTMENT
CROWN ADJUSTMENT
CROWN ADJUSTMENT WITH DRIVE
CROWN ADJUSTMENT, HYDR.
COVER
COVER
WALKWAY
WALKWAY
LATERAL SLIDE
END PLATE, LEFT
END PLATE, LEFT
END PLATE, RIGHT
END PLATE, RIGHT
CUT-OFF SHOE
CUT-OFF SHOE
BEVEL IRON
BEVEL IRON
BEVEL IRON
HYDRAULIC INSTALLATION
HYDRAULIC DRIVE: TAMPER
HYDRAULIC DRIVE: VIBRATORS
HYDRAULIC RAM 2, LEFT SIDE
HYDRAULIC RAM 1, RIGHT SIDE
LEAKAGE OIL: VIBRATORS
LEAKAGE OIL: VIBRATORS
LEAKAGE OIL: TAMPER TV
RETURN
HEATING
DISTRIBUTOR: SCREED HEATING
DISTRIBUTOR: SCREED HEATING
DISTRIBUTOR: SCREED HEATING
HEATING: SCREED PLATE, LEFT
HEATING: SCREED PLATE, RIGHT
HEATING: SCREED PLATE, LEFT
HEATING: SCREED PLATE, RIGHT
HEATING: SCREED PLATE, LEFT
HEATING: SCREED PLATE, RIGHT
HEATING: SCREED PLATE, LEFT
HEATING: SCREED PLATE, RIGHT
VB-TAMPER SHIELD
TAMPER SHIELD: VB 0,25M, LH
TAMPER SHIELD: VB 0,25M, RH
FRONT WALL LEFT
FRONT WALL RIGHT
FRONT WALL LEFT
TAMPER SHIELD: VB 0,40M, LH
FRONT WALL RIGHT
TAMPER SHIELD: VB 0,40M, RH
FRONT WALL LEFT
FRONT WALL RIGHT
FRONT WALL LEFT
FRONT WALL RIGHT
FRONT WALL LEFT
FRONT WALL RIGHT
VB-TAMPER
TAMPER, LEFT SIDE
TAMPER, RIGHT SIDE
TAMPER, LEFT SIDE
TAMPER, RIGHT SIDE
TAMPER, LEFT SIDE
TAMPER, RIGHT SIDE
TAMPER, LEFT SIDE
TAMPER, RIGHT SIDE
VB-FRAME
TROWEL, LEFT SIDE
TROWEL, RIGHT SIDE
TROWEL, LEFT SIDE
TROWEL, RIGHT SIDE
TROWEL, LEFT SIDE
FRAME: VB 0,40M, LEFT SIDE
TROWEL, RIGHT SIDE
FRAME: VB 0,40M, RIGHT SIDE
TROWEL, LEFT SIDE
TROWEL, RIGHT SIDE
TROWEL, LEFT SIDE
TROWEL, RIGHT SIDE
TROWEL, LEFT SIDE
TROWEL, RIGHT SIDE
VB-VIBRATION
VIBRATORS VB 0,40M
VIBRATORS VB 0,55M
VIBRATORS VB 0,80M
VB-COVERING
PROTECTIVE HOOP
PROTECTIVE HOOP
PROTECTIVE HOOP
VB-FOOTBOARD
WALKWAY
WALKWAY
WALKWAY, RIGHT SIDE
WALKWAY
WALKWAY, RIGHT SIDE
WALKWAY
VB-HEATING
HEATING VB
HEATING: SCREED PLATE
HEATING: SCREED PLATE, LEFT
HEATING: SCREED PLATE, RIGHT
HEATING: SCREED PLATE, LEFT
HEATING: SCREED PLATE, RIGHT
HEATING: SCREED PLATE, LEFT
HEATING: SCREED PLATE, RIGHT
HEATING: SCREED PLATE, LEFT
HEATING: SCREED PLATE, RIGHT
SERVICE SETS
VSS_BASIC SCREED V
VSS_BASIC SCREED V
VSS_BASIC SCREED TV
VSS_BOLT-ON EXTENSION 0,25M V
VSS_BOLT-ON EXTENSION 0,25M T
VSS_BOLT-ON EXTENSION 0,40M V
VSS_BOLT-ON EXTENSION 0,40M V
VSS_BOLT-ON EXTENSION 0,40M TV
VSS_BOLT-ON EXTENSION 0,55M TV
VSS_BOLT-ON EXTENSION 0,80M TV
1
2
3
4
5
6
6
7
7
8
9
10
11
11
Позиция на иллюстрации
Заводской номер детали
Название детали
1
2067947
HOSE
2
2061626
HOSE
3
2061627
HOSE
4
2061628
HOSE
5
9653130058
SCREW CONNECTION
6
9603130057
SCREW CONNECTION
7
9627120057
SCREW CONNECTION
8
9685020185
TOP COVER
9
9660180185
PAIR OF CLAMPING HALVES
10
9508320933
SCREW
11
9639040057
SCREW CONNECTION
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
