Каталог запасных частей к технике: VOGELE AB 340. COVER
1
2
3
3
3
3
3
3
4
5
6
7
7
8
8
9
9
10
11
12
13
14
15
15
15
15
15
16
16
17
17
17
17
17
18
18
18
18
19
19
19
19
20
20
21
21
21
21
21
21
22
22
23
23
23
23
24
25
26
26
27
27
27
27
27
28
28
28
28
28
28
28
29
29
29
29
29
29
29
30
31
31
32
32
33
33
33
33
34
34
35
36
38
39
40
41
42
43

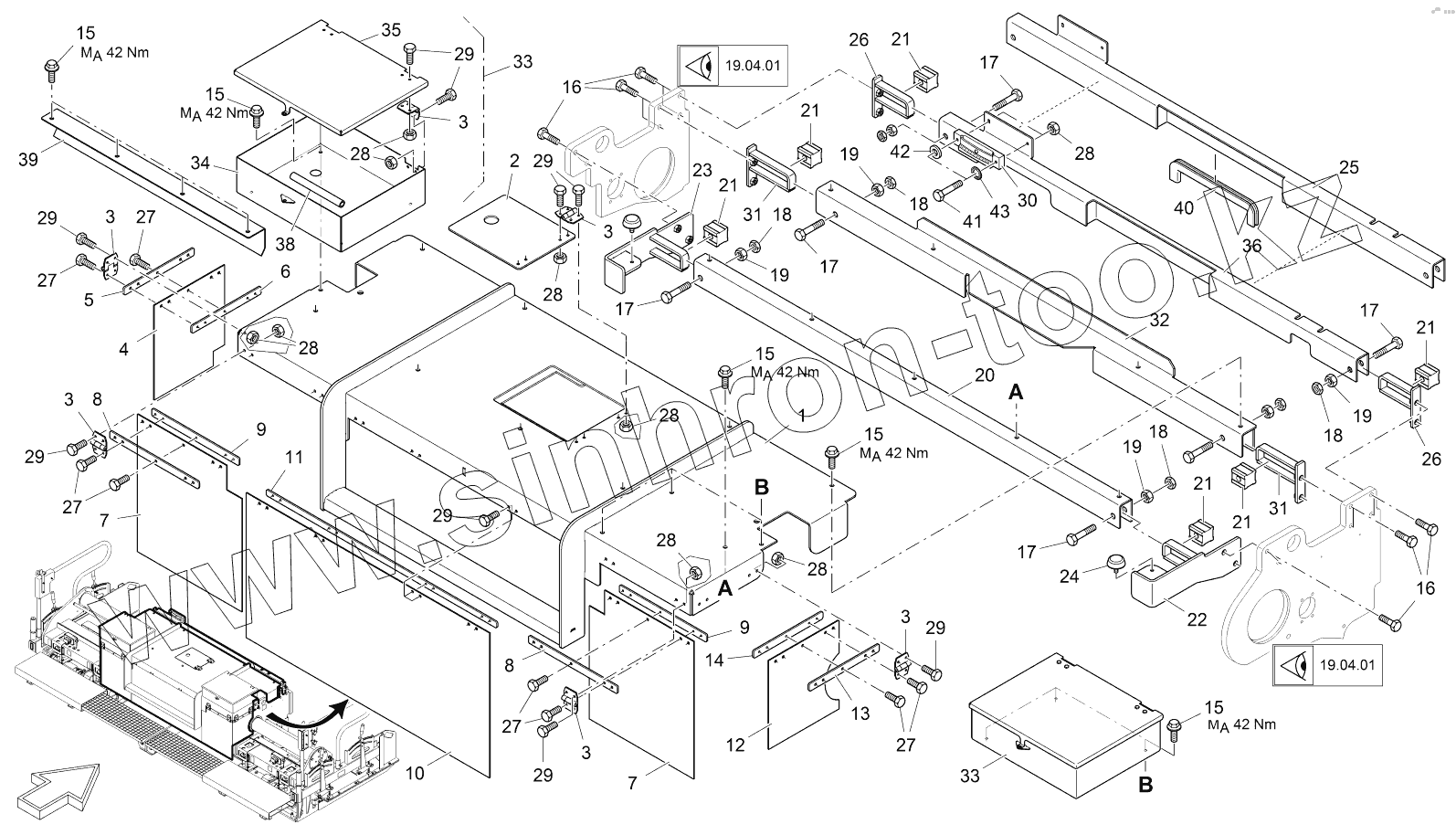

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2055080 | COVER | |
| 2 | 2055079 | LID | |
| 3 | 4618562160 | HINGE | |
| 4 | 2061049 | RUBBER | |
| 5 | 2061026 | METAL PLATE | |
| 6 | 2061028 | METAL PLATE | |
| 7 | 2061052 | RUBBER | |
| 8 | 2061034 | METAL PLATE | |
| 9 | 2061036 | METAL PLATE | |
| 10 | 2062043 | RUBBER | |
| 11 | 2061030 | METAL PLATE | |
| 12 | 2061044 | RUBBER | |
| 13 | 2061026 | METAL PLATE | |
| 14 | 2061028 | METAL PLATE | |
| 15 | 2000541 | SCREW | |
| 16 | 9512320933 | SCREW | |
| 17 | 9516400933 | SCREW | |
| 18 | 95001604 | NUT | |
| 19 | 9500160934 | NUT | |
| 20 | 2054919 | TRAVERSE | |
| 20 | 2092583 | TRAVERSE | |
| 21 | 4606230004 | RUBBER BUFFER | |
| 22 | 2055145 | HOLDER RIGHT | |
| 22 | 2092608 | HOLDER RIGHT | |
| 23 | 2055142 | HOLDER LEFT | |
| 23 | 2092605 | HOLDER LEFT | |
| 24 | 4915520119 | RUBBER BUFFER | |
| 25 | 2054927 | TRAVERSE | |
| 26 | 2055132 | HOLDER | |
| 27 | 9506180933 | SCREW | |
| 28 | 9500060934 | NUT | |
| 29 | 9506160933 | SCREW | |
| 30 | 4924220255 | SPIRIT LEVEL | |
| 31 | 2065593 | HOLDER | |
| 32 | 2065659 | TRAVERSE | |
| 32 | 2092578 | TRAVERSE | |
| 33 | 2069490 | TOOL BOX | |
| 33 | 2092600 | TOOL BOX | |
| 34 | 2069488 | METAL PLATE | |
| 34 | 2092599 | METAL PLATE | |
| 35 | 2066857 | LID | |
| 36 | 2092638 | TRAVERSE | |
| 38 | 2008352 | RATCHET HANDLE | |
| 39 | 2107771 | METAL PLATE | |
| 40 | 4604042251 | JOINING PIECE | |
| 41 | 9506320933 | SCREW | |
| 42 | 9500060125 | WASHER | |
| 43 | 9510646798 | FAN DISC |
