Каталог запасных частей к технике: VOGELE AB500-3 TV. TROWEL: BASIC SCREED
10
20
30
40
50
50
50
60
60
70
70
70
70
80
80
80
90
90
100
100
100
110
120
120
120
120
130
140
140
150
150
150
150
160
160
170
170
180
180
190
190
200
200
210
220
230
240
250
250
260
260
260
270
270
280
290
300
300
300
310
320
320
330
340
340
350
350

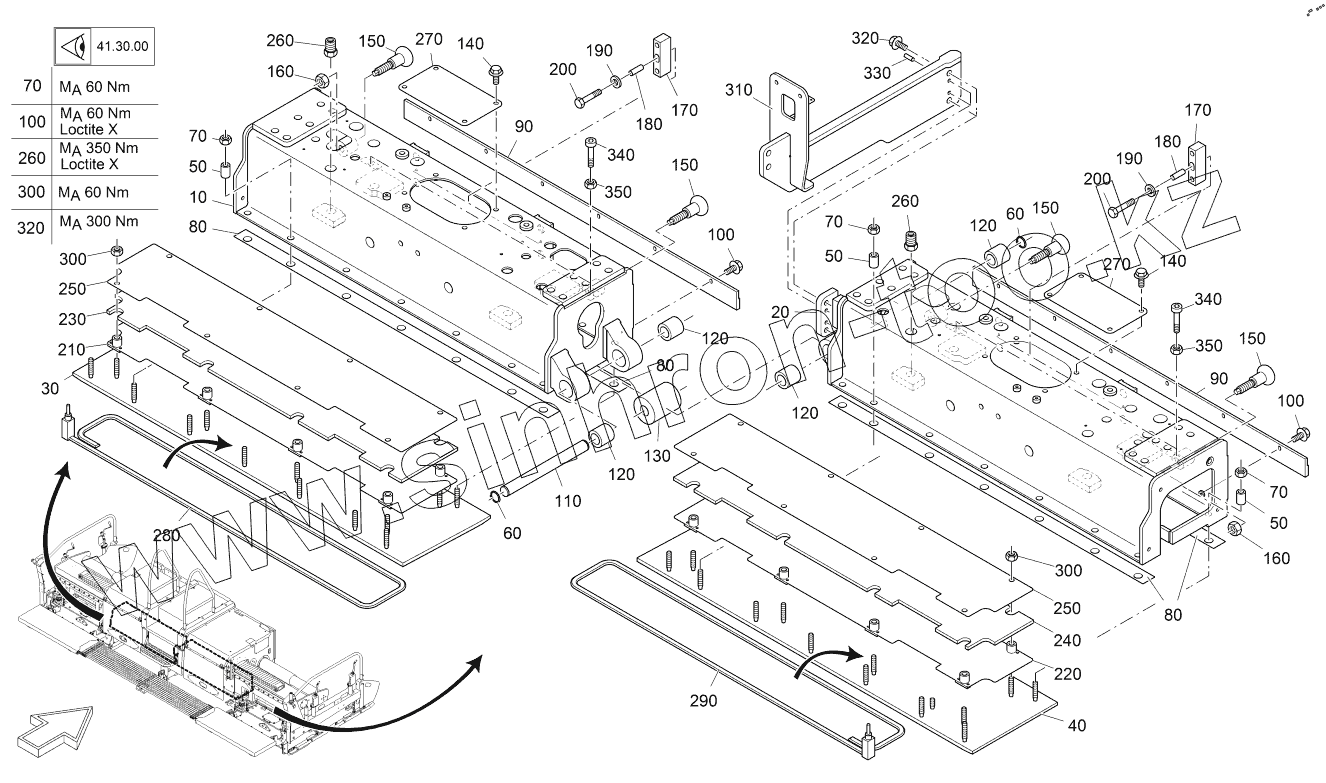

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | 2201285 | FRAME, LEFT SIDE | |
| 20 | 2201287 | FRAME, RIGHT SIDE | |
| 30 | 2201289 | SCREED PLATE, LEFT SIDE | |
| 40 | 2201290 | SCREED PLATE, RIGHT SIDE | |
| 50 | 4608112101 | SLEEVE | |
| 60 | 9500300471 | SEEGER RING | |
| 70 | 9610120095 | NUT | |
| 80 | 2042577 | INSULATING PLATE | |
| 90 | 2201295 | WEARING BAR | |
| 100 | 2000541 | SCREW | |
| 110 | 2036810 | BOLT | |
| 120 | 4602202294 | BUSH | |
| 130 | 2036811 | SLEEVE | |
| 140 | 2000317 | SCREW | |
| 150 | 4618242234 | SCREW | |
| 160 | 9500200934 | NUT | |
| 170 | 4606504127 | FLAT STEEL | |
| 180 | 4602202223 | BUSHING | |
| 190 | 9500090440 | WASHER | |
| 200 | 9508350931 | SCREW | |
| 210 | 2042638 | PLATE, LEFT SIDE | |
| 220 | 2042639 | PLATE, RIGHT SIDE | |
| 230 | 2042687 | INSULATION PLATE | |
| 240 | 2042688 | INSULATION PLATE | |
| 250 | 2042641 | METAL PLATE | |
| 260 | 2035942 | SCREW | |
| 270 | 2042594 | METAL PLATE | |
| 280 | 2035986 | HEATING ROD | |
| 290 | 2035992 | HEATING ROD | |
| 300 | 9610120095 | NUT | |
| 310 | 2231842 | CONSOLE | |
| 320 | 9616320045 | SCREW | |
| 330 | 9510291481 | TENSIONER PIN | |
| 340 | 2434497 | SCREW | |
| 350 | 9500100934 | NUT |
