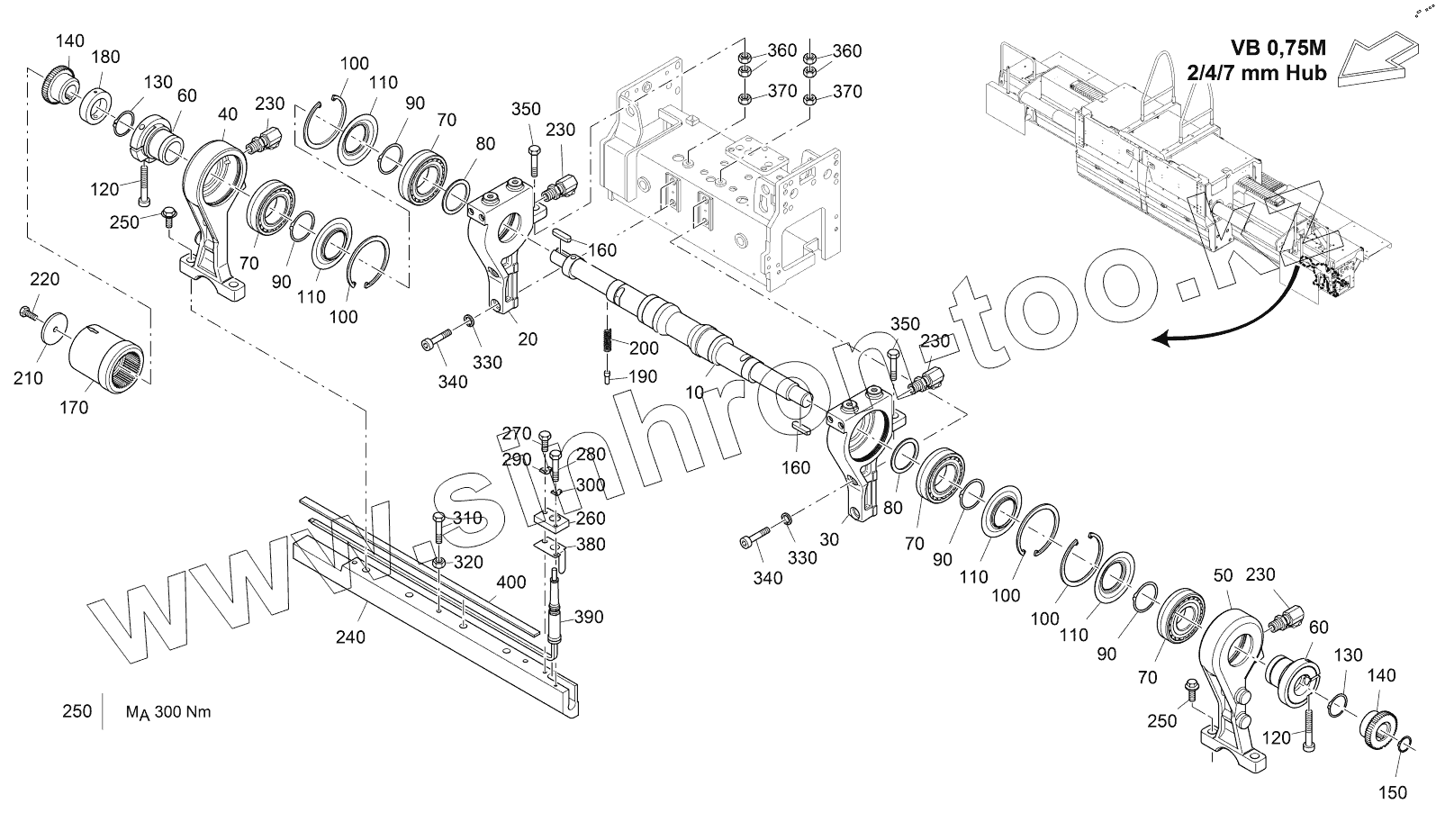

Каталог запасных частей к технике: VOGELE AB500-3 TV. TAMPER: VB 0,75M, LEFT SIDE
10
20
30
40
50
60
60
70
70
70
70
80
80
90
90
90
90
100
100
100
100
110
110
110
110
120
120
130
130
140
140
150
160
160
170
180
190
200
210
220
230
230
230
230
240
250
250
250
260
270
280
290
300
310
320
330
330
340
340
350
350
360
360
370
370
380
390
400
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | 4605072137 | ECCENTRIC SHAFT | |
| 20 | 4611052067 | BEARING, RIGHT SIDE | |
| 30 | 4611052066 | BEARING, LEFT SIDE | |
| 40 | 4615042027 | CONNECTING ROD | |
| 50 | 4615042026 | CONNECTING ROD | |
| 60 | 4605040023 | ECCENTRIC BUSH | |
| 70 | 9540120635 | SELF-ALIGNING ROLLER BEAR | |
| 80 | 9560500988 | SUPPORTING WASHER | |
| 90 | 9500600471 | SEEGER RING | |
| 100 | 9501120472 | SEEGER CIRCLIP RING | |
| 110 | 4604132143 | COVER | |
| 120 | 9512400912 | SCREW | |
| 130 | 9500450471 | SEEGER RING | |
| 140 | 4610222032 | COUPLING HUB | |
| 150 | 9500300471 | SEEGER RING | |
| 160 | 9508366885 | FEATHER KEY | |
| 170 | 4610222031 | COUPLING SLEEVE | |
| 180 | 4618322007 | SET COLLAR | |
| 190 | 4623152004 | TENON | |
| 200 | 4606042014 | COMPRESSION SPRING | |
| 210 | 4618042116 | WASHER | |
| 220 | 9510200933 | SCREW | |
| 230 | 9603010057 | SCREW CONNECTION | |
| 240 | 2246755 | TAMPER BAR, LEFT SIDE | |
| 250 | 9616340045 | SCREW | |
| 260 | 4608512649 | SUPPORT, LEFT SIDE | |
| 270 | 9508250933 | SCREW | |
| 280 | 9506250933 | SCREW | |
| 290 | 9500080093 | LOCKING SHEET | |
| 300 | 9500060093 | LOCKING PLATE | |
| 310 | 9508350933 | SCREW | |
| 320 | 9500080934 | NUT | |
| 330 | 9500167980 | SPRING RING | |
| 340 | 9516426912 | SCREW | |
| 350 | 9516420933 | SCREW | |
| 360 | 9500160439 | NUT | |
| 370 | 9500160934 | NUT | |
| 380 | 4602416482 | COVER PLATE, LEFT SIDE | |
| 390 | 2035055 | HEATING ROD | |
| 400 | 2004051 | FLAT STEEL |
