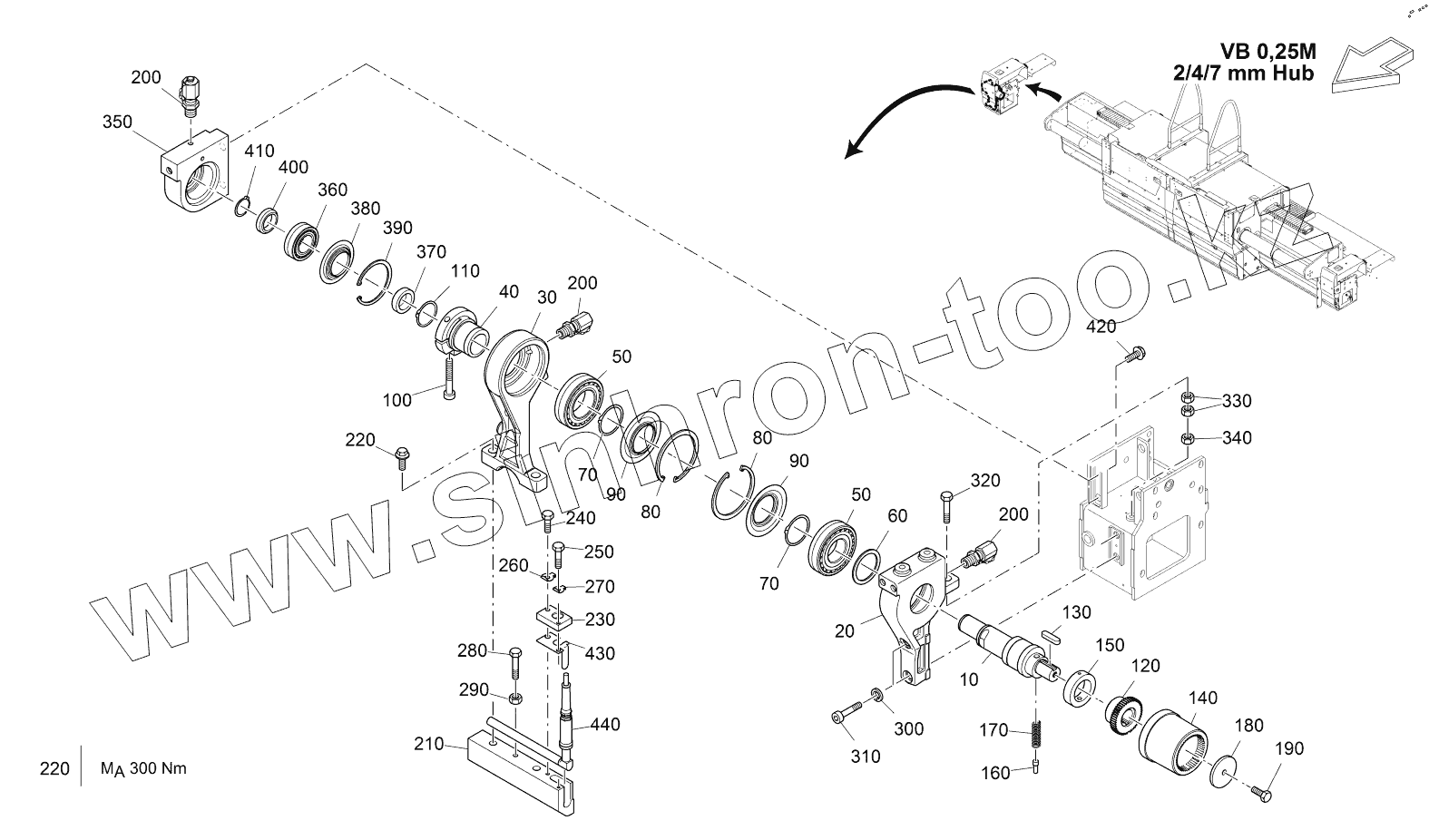

Каталог запасных частей к технике: VOGELE AB500-3 TV. TAMPER: VB 0,25M, RIGHT SIDE
10
20
30
30
40
50
60
70
80
90
100
110
120
130
140
150
150
160
170
170
180
180
190
190
200
200
200
210
220
220
230
240
250
260
270
280
290
300
310
320
330
340
350
360
370
380
390
400
410
420
430
440
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | 4605072116 | ECCENTRIC SHAFT | |
| 20 | 4611052067 | BEARING, RIGHT SIDE | |
| 30 | 4615042027 | CONNECTING ROD | |
| 30 | 2415227 | CONNECTING ROD | |
| 40 | 4605040023 | ECCENTRIC BUSH | |
| 50 | 9540120635 | SELF-ALIGNING ROLLER BEAR | |
| 60 | 9560500988 | SUPPORTING WASHER | |
| 70 | 9500600471 | SEEGER RING | |
| 80 | 9501120472 | SEEGER CIRCLIP RING | |
| 90 | 4604132143 | COVER | |
| 100 | 9512400912 | SCREW | |
| 110 | 9500450471 | SEEGER RING | |
| 120 | 4610222032 | COUPLING HUB | |
| 130 | 9508366885 | FEATHER KEY | |
| 140 | 4610222092 | COUPLING SLEEVE | |
| 150 | 4618322007 | SET COLLAR | |
| 160 | 4623152004 | TENON | |
| 170 | 4606042014 | COMPRESSION SPRING | |
| 180 | 4618042116 | WASHER | |
| 190 | 9510200933 | SCREW | |
| 200 | 9603010057 | SCREW CONNECTION | |
| 210 | 2247043 | TAMPER BAR, RIGHT SIDE | |
| 220 | 9616340045 | SCREW | |
| 230 | 4608512649 | SUPPORT, LEFT SIDE | |
| 240 | 9508250933 | SCREW | |
| 250 | 9506250933 | SCREW | |
| 260 | 9500080093 | LOCKING SHEET | |
| 270 | 9500060093 | LOCKING PLATE | |
| 280 | 9508330933 | SCREW | |
| 290 | 9500080439 | NUT | |
| 300 | 9500167980 | SPRING RING | |
| 310 | 9516426912 | SCREW | |
| 320 | 9516420933 | SCREW | |
| 330 | 9500160439 | NUT | |
| 340 | 9500160934 | NUT | |
| 350 | 4611052101 | BEARING, RIGHT SIDE | |
| 360 | 9541070635 | SELF-ALIGNING ROLLER BEARING | |
| 370 | 4604172105 | RING | |
| 380 | 4604132458 | LID | |
| 390 | 9500920472 | SEEGER CIRCLIP RING | |
| 400 | 4604172104 | RING | |
| 410 | 9500350471 | SEEGER CIRCLIP RING | |
| 420 | 9216326921 | SCREW | |
| 430 | 2036276 | COVER PLATE, LEFT SIDE | |
| 440 | 2041147 | HEATING ROD |
