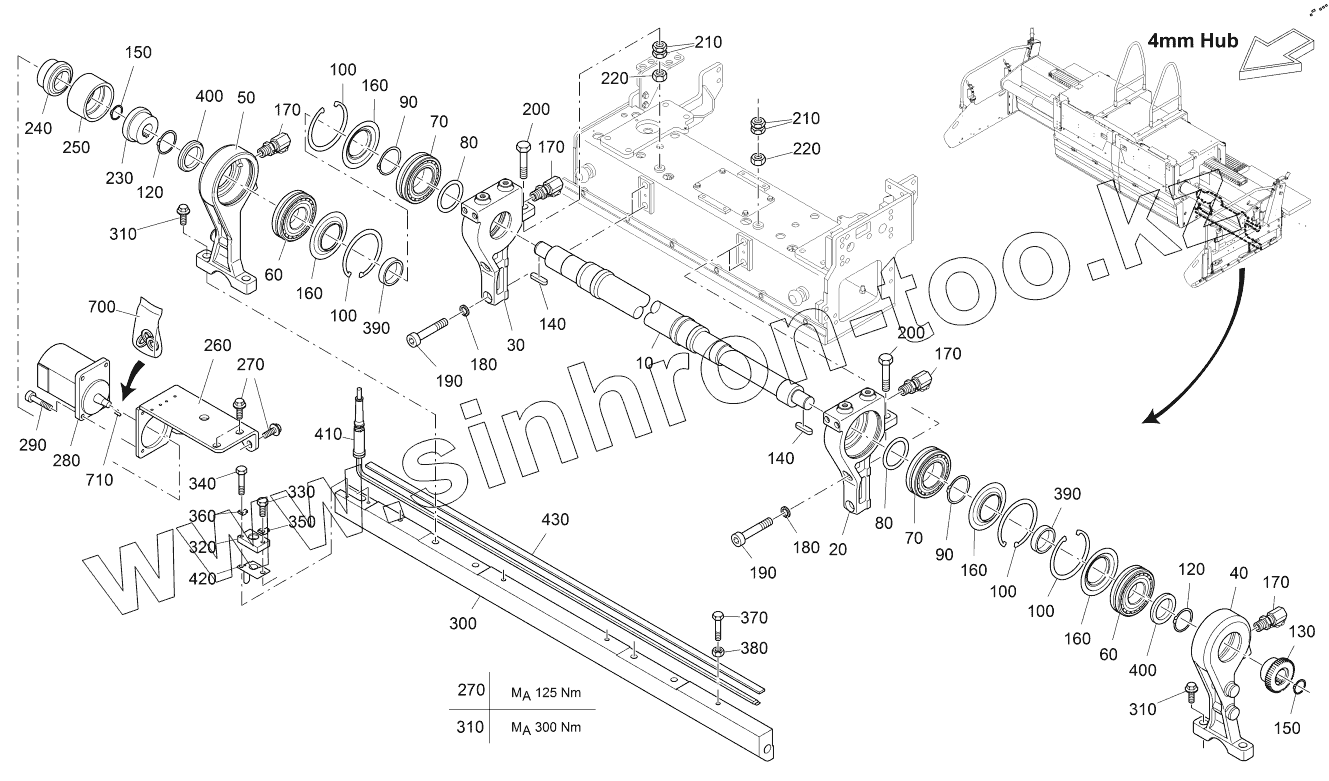

Каталог запасных частей к технике: VOGELE AB500-3 TV. TAMPER: EXTENDING UNIT, LEFT
10
20
30
40
50
60
60
70
70
80
80
90
90
100
100
100
100
120
120
130
140
140
150
150
160
160
160
160
170
170
170
170
180
180
190
190
200
200
210
210
220
220
230
240
250
260
270
270
280
290
300
310
310
310
320
330
340
350
360
370
380
390
390
400
400
410
420
430
700
710
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | 2043560 | ECCENTRIC SHAFT | |
| 20 | 4611052066 | BEARING, LEFT SIDE | |
| 30 | 4611052067 | BEARING, RIGHT SIDE | |
| 40 | 4615042026 | CONNECTING ROD | |
| 50 | 4615042027 | CONNECTING ROD | |
| 60 | 9507100635 | SELF-ALIGNING ROLLER BEAR | |
| 70 | 9540120635 | SELF-ALIGNING ROLLER BEAR | |
| 80 | 9560500988 | SUPPORTING WASHER | |
| 90 | 9500600471 | SEEGER RING | |
| 100 | 9501120472 | SEEGER CIRCLIP RING | |
| 120 | 9500500471 | SEEGER RING | |
| 130 | 4610222032 | COUPLING HUB | |
| 140 | 9508366885 | FEATHER KEY | |
| 150 | 9500300471 | SEEGER RING | |
| 160 | 4604132143 | COVER | |
| 170 | 9603010057 | SCREW CONNECTION | |
| 180 | 9500167980 | SPRING RING | |
| 190 | 9516426912 | SCREW | |
| 200 | 9516420933 | SCREW | |
| 210 | 9500160439 | NUT | |
| 220 | 9500160934 | NUT | |
| 230 | 4610222109 | COUPLING HUB | |
| 240 | 4610222110 | COUPLING HUB | |
| 250 | 4610222108 | COUPLING SLEEVE | |
| 260 | 2007342 | BRACKET, RIGHT SIDE | |
| 270 | 2007173 | SCREW | |
| 280 | 9629681000 | HYDRAULIC MOTOR | |
| 290 | 9508250912 | SCREW | |
| 300 | 2202970 | TAMPER BAR, LEFT SIDE | |
| 310 | 9616340045 | SCREW | |
| 320 | 4608512648 | SUPPORT, RIGHT SIDE | |
| 330 | 9508250933 | SCREW | |
| 340 | 9506250933 | SCREW | |
| 350 | 9500080093 | LOCKING SHEET | |
| 360 | 9500060093 | LOCKING PLATE | |
| 370 | 9508350933 | SCREW | |
| 380 | 9500080934 | NUT | |
| 390 | 4604172043 | RING | |
| 400 | 4604172044 | RING | |
| 410 | 2035050 | HEATING ROD | |
| 420 | 4602416483 | COVER PLATE, RIGHT SIDE | |
| 430 | 9603189305 | FLAT STEEL | |
| 700 | 9629541001 | SET OF SEALS | |
| 710 | 9504066888 | DISK SPRING |
