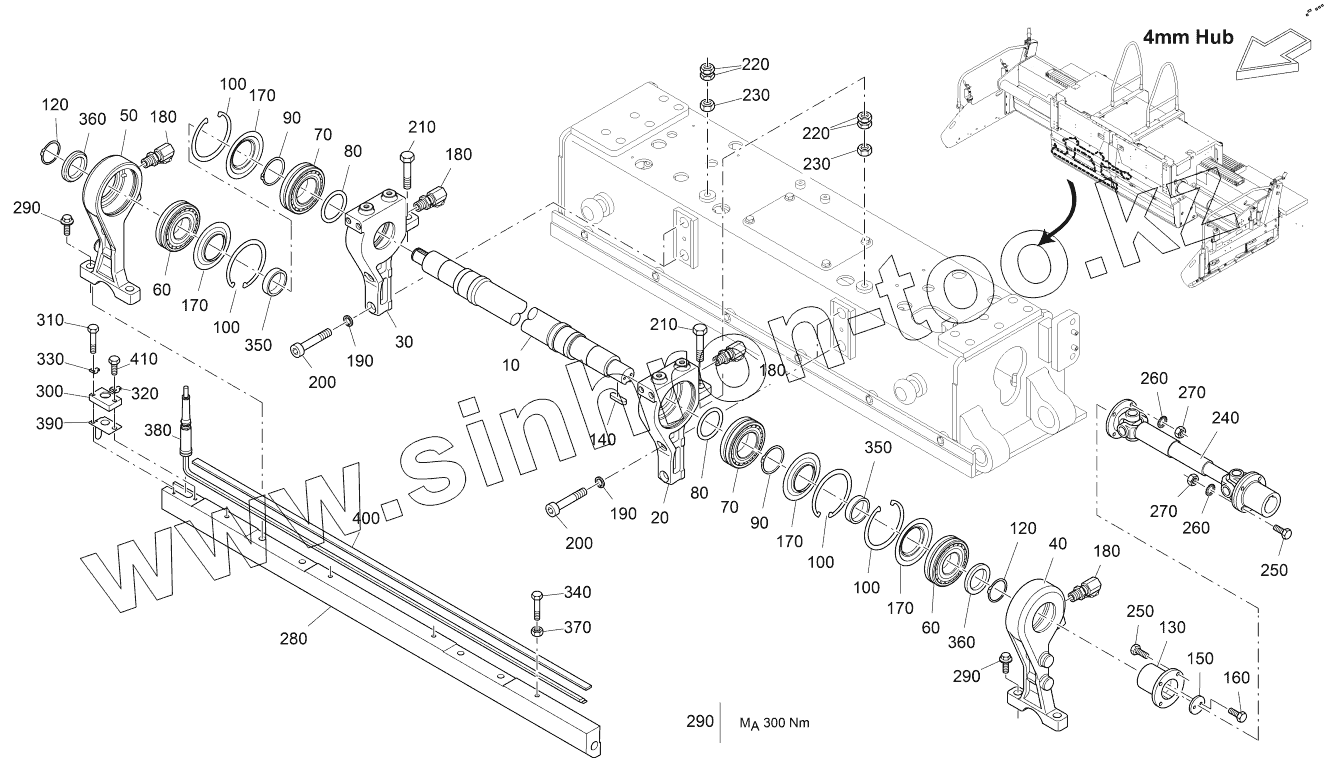

Каталог запасных частей к технике: VOGELE AB500-3 TV. TAMPER: BASIC SCREED, RIGHT
10
20
30
40
50
60
70
80
90
100
100
100
100
120
120
130
140
150
160
160
170
170
170
170
170
180
180
180
180
180
190
190
190
200
200
210
210
220
220
230
230
240
250
250
260
260
270
270
280
290
290
290
300
310
320
330
340
350
350
360
360
370
380
390
400
410
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | 2043559 | ECCENTRIC SHAFT | |
| 20 | 4611052066 | BEARING, LEFT SIDE | |
| 30 | 4611052067 | BEARING, RIGHT SIDE | |
| 40 | 4615042026 | CONNECTING ROD | |
| 50 | 4615042027 | CONNECTING ROD | |
| 60 | 9507100635 | SELF-ALIGNING ROLLER BEAR | |
| 70 | 9540120635 | SELF-ALIGNING ROLLER BEAR | |
| 80 | 9560500988 | SUPPORTING WASHER | |
| 90 | 9500600471 | SEEGER RING | |
| 100 | 9501120472 | SEEGER CIRCLIP RING | |
| 120 | 9500500471 | SEEGER RING | |
| 130 | 4606172401 | FLANGE | |
| 140 | 9512456885 | FEATHER KEY | |
| 150 | 4618042772 | WASHER | |
| 160 | 9506200933 | SCREW | |
| 170 | 4604132143 | COVER | |
| 180 | 9603010057 | SCREW CONNECTION | |
| 190 | 9500167980 | SPRING RING | |
| 200 | 9516426912 | SCREW | |
| 210 | 9516420933 | SCREW | |
| 220 | 9500160439 | NUT | |
| 230 | 9500160934 | NUT | |
| 240 | 4607180016 | CARDAN SHAFT | |
| 250 | 9508250933 | SCREW | |
| 260 | 9510846798 | SERRATED LOCK WASHER | |
| 270 | 9500080934 | NUT | |
| 280 | 2202847 | TAMPER BAR, RIGHT SIDE | |
| 290 | 9616340045 | SCREW | |
| 300 | 4608512648 | SUPPORT, RIGHT SIDE | |
| 310 | 9506250933 | SCREW | |
| 320 | 9500080093 | LOCKING SHEET | |
| 330 | 9500060093 | LOCKING PLATE | |
| 340 | 9508350933 | SCREW | |
| 350 | 4604172043 | RING | |
| 360 | 4604172044 | RING | |
| 370 | 9500080934 | NUT | |
| 380 | 2035050 | HEATING ROD | |
| 390 | 4602416483 | COVER PLATE, RIGHT SIDE | |
| 400 | 9603189305 | FLAT STEEL | |
| 410 | 9508250933 | SCREW |
