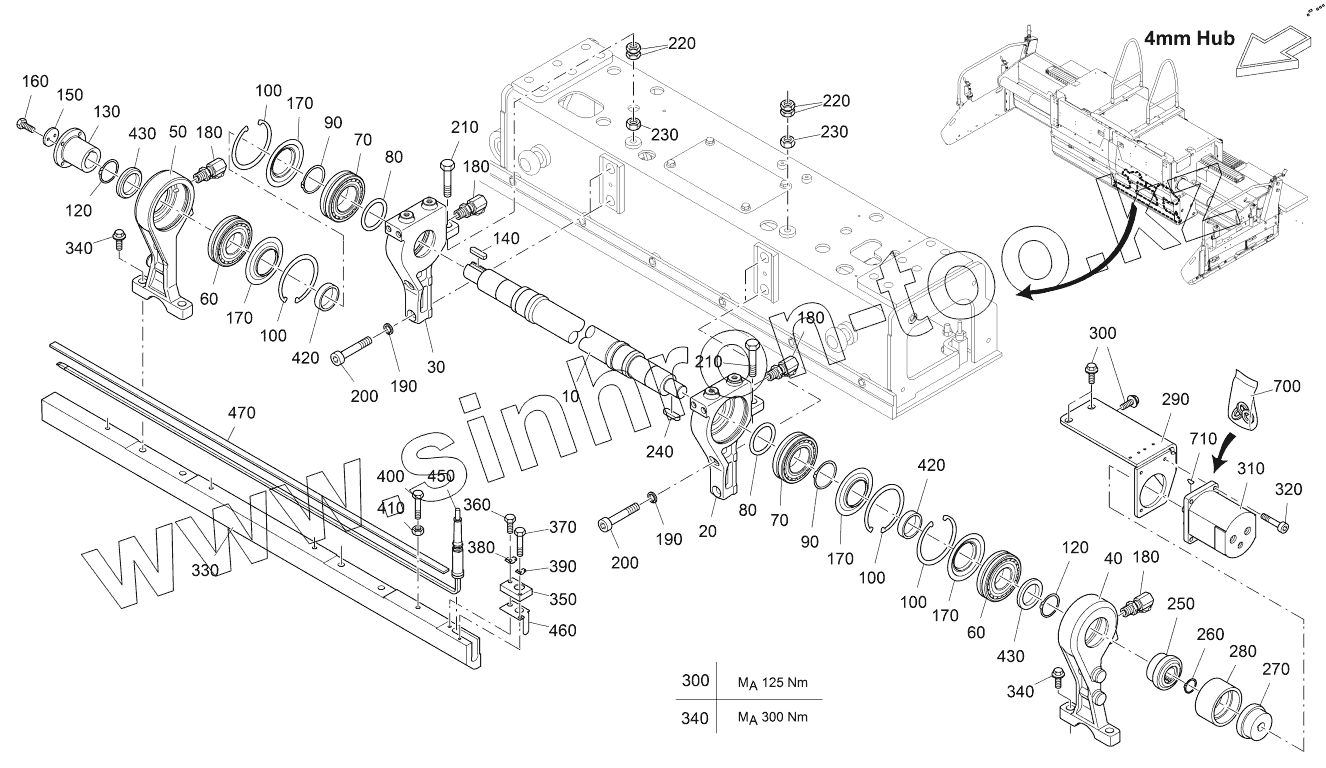

Каталог запасных частей к технике: VOGELE AB500-3 TV. TAMPER: BASIC SCREED, LEFT
10
20
30
40
50
60
60
70
70
80
80
90
90
100
100
100
100
120
120
130
140
150
160
170
170
170
170
180
180
180
180
190
190
200
200
210
210
220
220
230
230
240
250
260
270
280
290
300
300
310
320
330
340
340
340
350
360
370
380
390
400
410
420
420
430
430
450
460
470
700
710
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | 2043559 | ECCENTRIC SHAFT | |
| 20 | 4611052066 | BEARING, LEFT SIDE | |
| 30 | 4611052067 | BEARING, RIGHT SIDE | |
| 40 | 4615042026 | CONNECTING ROD | |
| 50 | 4615042027 | CONNECTING ROD | |
| 60 | 9507100635 | SELF-ALIGNING ROLLER BEAR | |
| 70 | 9540120635 | SELF-ALIGNING ROLLER BEAR | |
| 80 | 9560500988 | SUPPORTING WASHER | |
| 90 | 9500600471 | SEEGER RING | |
| 100 | 9501120472 | SEEGER CIRCLIP RING | |
| 120 | 9500500471 | SEEGER RING | |
| 130 | 4606172401 | FLANGE | |
| 140 | 9512456885 | FEATHER KEY | |
| 150 | 4618042772 | WASHER | |
| 160 | 9506200933 | SCREW | |
| 170 | 4604132143 | COVER | |
| 180 | 9603010057 | SCREW CONNECTION | |
| 190 | 9500167980 | SPRING RING | |
| 200 | 9516426912 | SCREW | |
| 210 | 9516420933 | SCREW | |
| 220 | 9500160439 | NUT | |
| 230 | 9500160934 | NUT | |
| 240 | 9508366885 | FEATHER KEY | |
| 250 | 4610222109 | COUPLING HUB | |
| 260 | 9500300471 | SEEGER RING | |
| 270 | 4610222110 | COUPLING HUB | |
| 280 | 4610222108 | COUPLING SLEEVE | |
| 290 | 2007341 | BRACKET, LEFT SIDE | |
| 300 | 2007173 | SCREW | |
| 310 | 9629681000 | HYDRAULIC MOTOR | |
| 320 | 9508250912 | SCREW | |
| 330 | 2202733 | TAMPER BAR, LEFT SIDE | |
| 340 | 9616340045 | SCREW | |
| 350 | 4608512649 | SUPPORT, LEFT SIDE | |
| 360 | 9508250933 | SCREW | |
| 370 | 9506250933 | SCREW | |
| 380 | 9500080093 | LOCKING SHEET | |
| 390 | 9500060093 | LOCKING PLATE | |
| 400 | 9508350933 | SCREW | |
| 410 | 9500080934 | NUT | |
| 420 | 4604172043 | RING | |
| 430 | 4604172044 | RING | |
| 450 | 2035050 | HEATING ROD | |
| 460 | 4602416482 | COVER PLATE, LEFT SIDE | |
| 470 | 9603189305 | FLAT STEEL | |
| 700 | 9629541001 | SET OF SEALS | |
| 710 | 9504066888 | DISK SPRING |
