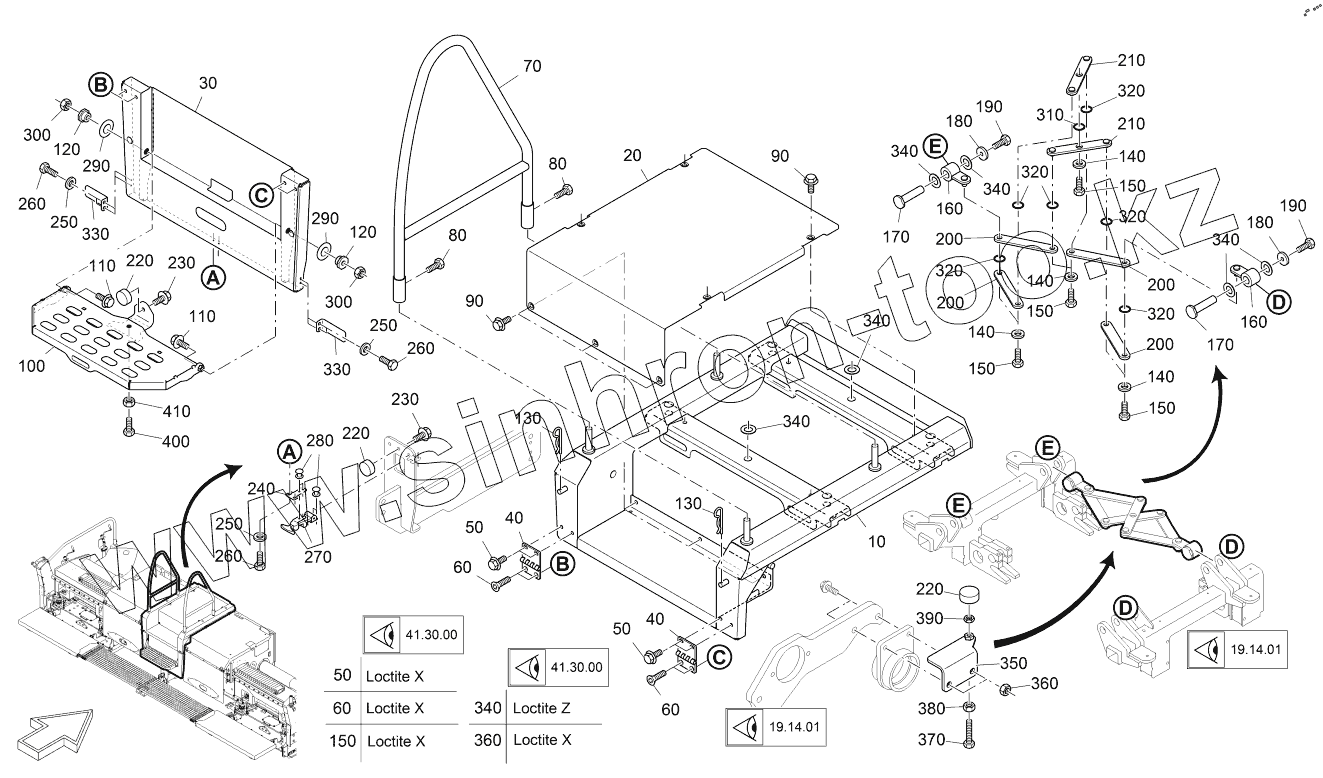

Каталог запасных частей к технике: VOGELE AB500-3 TV. FOOTSTEP, TV
10
20
30
40
40
50
50
50
60
60
60
70
80
80
90
90
100
110
110
120
120
130
130
140
140
140
140
150
150
150
150
150
160
160
170
170
180
180
190
190
200
200
200
200
210
210
220
220
220
230
230
240
250
250
250
260
260
260
270
280
290
290
300
300
310
320
320
320
320
320
330
330
340
340
340
340
340
340
350
360
360
370
380
390
400
410
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | 2403365 | FOOTSTEP, TV | |
| 20 | 2400360 | CHECKERED PLATE | |
| 30 | 2403235 | FLAP | |
| 40 | 2403193 | HINGE | |
| 50 | 2000541 | SCREW | |
| 60 | 9508207991 | SCREW | |
| 70 | 2234353 | RETAINING BRACKET | |
| 80 | 9510200933 | SCREW | |
| 90 | 2000317 | SCREW | |
| 100 | 2413806 | HINGED STEP | |
| 110 | 2000311 | SCREW | |
| 120 | 2418662 | HEXAGONAL NUT | |
| 130 | 9523111024 | SPRING PLUG | |
| 140 | 9500090440 | WASHER | |
| 150 | 9508160933 | SCREW | |
| 160 | 2236205 | SLEEVE | |
| 170 | 2234499 | BOLT | |
| 180 | 2150468 | WASHER | |
| 190 | 9512200933 | SCREW | |
| 200 | 2236430 | STEERING BRACKET | |
| 210 | 2236411 | STEERING BRACKET | |
| 220 | 2120681 | RUBBER BUFFER | |
| 230 | 2000310 | SCREW | |
| 240 | 2240852 | METAL PLATE | |
| 250 | 9500060125 | WASHER | |
| 260 | 9506100933 | SCREW | |
| 270 | 4324030282 | HOOD FASTENER | |
| 280 | 9604100083 | RIVET | |
| 290 | 9520402093 | CUP SPRING | |
| 300 | 9500120934 | NUT | |
| 310 | 9615910062 | O-RING SEAL | |
| 320 | 9613930062 | O-RING SEAL | |
| 330 | 2335569 | METAL PLATE | |
| 340 | 2350655 | RUBBER | |
| 350 | 2359554 | CONSOLE | |
| 360 | 9500120934 | NUT | |
| 370 | 9510360933 | SCREW | |
| 380 | 9500100934 | NUT | |
| 390 | 9500100439 | NUT | |
| 400 | 9510300933 | SCREW | |
| 410 | 9500100934 | NUT |
