Каталог запасных частей к технике: VOGELE AB500-3 TV. CROWN ADJUSTMENT WITH DRIVE
10
10
20
30
40
40
50
50
50
50
60
60
60
60
70
70
80
80
90
90
100
100
100
100
110
110
120
120
130
130
130
130
140
140
150
150
160
160
170
180
190
200
210
210
220
230
230
230
230
230
230
230
230
240
250
260
260
260
260
270
270
270
270
280
280
290
300
300
300
300
310
320
330
340
340
350
350
360
360
360
360
370
370
380
380
380
380
380
380
390
400
410
410
420
420
430
430

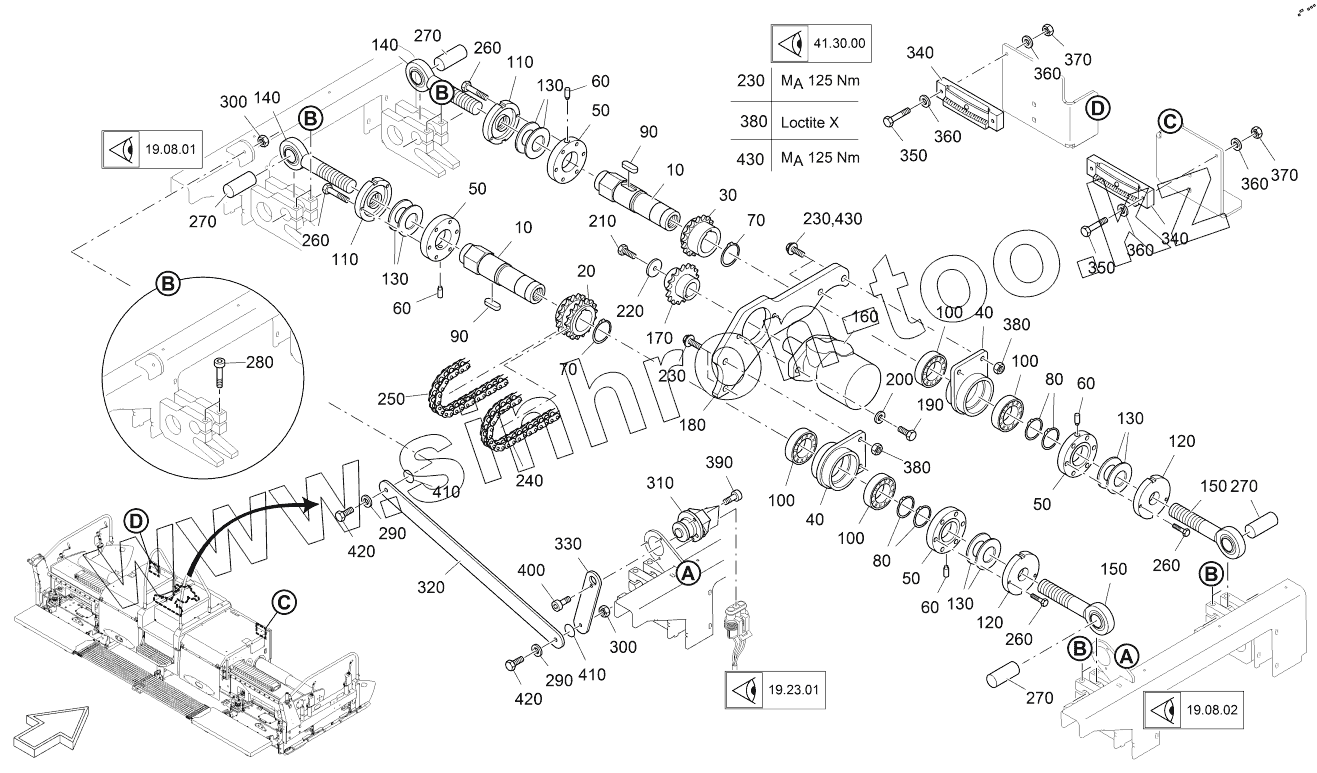

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | 4612032257 | NUT | |
| 20 | 4610062252 | CHAIN WHEEL | |
| 30 | 4610062253 | CHAIN WHEEL | |
| 40 | 4611072013 | BEARING | |
| 50 | 4618042808 | WASHER | |
| 60 | 9510250915 | THREADED PIN | |
| 70 | 9500480471 | SEEGER CIRCLIP RING | |
| 80 | 9500450471 | SEEGER RING | |
| 90 | 9514406885 | FEATHER KEY | |
| 100 | 9508090625 | BALL BEARING | |
| 110 | 4612052001 | GROOVE NUT | |
| 120 | 4612052003 | GROOVE NUT | |
| 130 | 9510712093 | CUP SPRING | |
| 140 | 4607132057 | ARTICULATED HEAD | |
| 150 | 4607132058 | ARTICULATED HEAD | |
| 160 | 2026607 | HYDRAULIC MOTOR | |
| 160 | 2435938 | HYDRAULIC MOTOR | |
| 170 | 2026594 | CHAIN WHEEL | |
| 180 | 2294476 | METAL PLATE | |
| 190 | 9512310933 | SCREW | |
| 200 | 9500130125 | WASHER | |
| 210 | 9508200933 | SCREW | |
| 210 | 9508200933 | SCREW | |
| 220 | 4618042810 | WASHER | |
| 230 | 9612310045 | SCREW | |
| 230 | 9612310045 | SCREW | |
| 240 | 2037533 | ROLLER CHAIN | |
| 250 | 3301040066 | ROLLER CHAIN | |
| 260 | 9508310933 | SCREW | |
| 270 | 4602022041 | BOLT | |
| 280 | 9510340912 | SCREW | |
| 290 | 9500090440 | WASHER | |
| 300 | 9500080439 | NUT | |
| 300 | 9500080934 | NUT | |
| 310 | 2167183 | SENSOR | |
| 320 | 2230262 | METAL PLATE | |
| 330 | 2230259 | METAL PLATE | |
| 340 | 4924220255 | SPIRIT LEVEL | |
| 350 | 9506320933 | SCREW | |
| 360 | 9500060125 | WASHER | |
| 370 | 9500060934 | NUT | |
| 380 | 9500120934 | NUT | |
| 380 | 9500120934 | NUT | |
| 390 | 9506160912 | SCREW | |
| 400 | 9506120912 | SCREW | |
| 410 | 9650190062 | O-RING SEAL | |
| 420 | 9508220933 | SCREW | |
| 430 | 9612330045 | SCREW |
