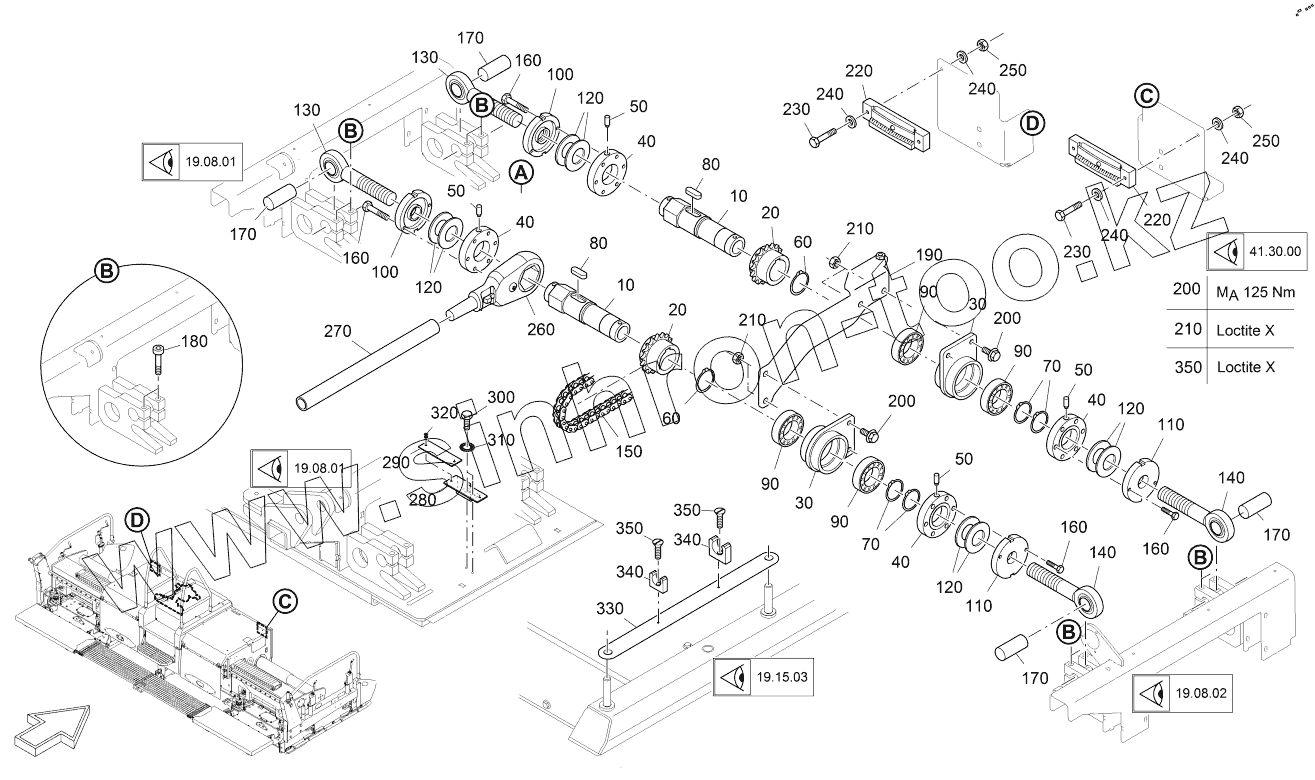

Каталог запасных частей к технике: VOGELE AB500-3 TV. CROWN ADJUSTMENT
10
10
20
20
30
30
40
40
40
40
50
50
50
50
60
60
70
70
80
80
90
90
90
90
100
100
110
110
120
120
120
120
130
130
140
140
150
160
160
160
160
170
170
170
170
180
190
200
200
200
210
210
210
220
220
230
230
240
240
240
240
250
250
260
270
280
290
290
300
310
320
330
330
340
340
350
350
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | 4612032257 | NUT | |
| 20 | 4610062253 | CHAIN WHEEL | |
| 30 | 4611072013 | BEARING | |
| 40 | 4618042808 | WASHER | |
| 50 | 9510250915 | THREADED PIN | |
| 60 | 9500480471 | SEEGER CIRCLIP RING | |
| 70 | 9500450471 | SEEGER RING | |
| 80 | 9514406885 | FEATHER KEY | |
| 90 | 9508090625 | BALL BEARING | |
| 100 | 4612052001 | GROOVE NUT | |
| 110 | 4612052003 | GROOVE NUT | |
| 120 | 9510712093 | CUP SPRING | |
| 130 | 4607132057 | ARTICULATED HEAD | |
| 140 | 4607132058 | ARTICULATED HEAD | |
| 150 | 3301040066 | ROLLER CHAIN | |
| 160 | 9508310933 | SCREW | |
| 170 | 4602022041 | BOLT | |
| 180 | 9510340912 | SCREW | |
| 190 | 2365808 | CONSOLE | |
| 200 | 9612300045 | SCREW | |
| 210 | 9500120934 | NUT | |
| 220 | 4924220255 | SPIRIT LEVEL | |
| 230 | 9506320933 | SCREW | |
| 240 | 9500060125 | WASHER | |
| 250 | 9500060934 | NUT | |
| 260 | 2001307 | RATCHET | |
| 270 | 2001460 | RATCHET HANDLE | |
| 280 | 2365688 | METAL PLATE | |
| 290 | 2008894 | STICKER | |
| 290 | 4618267236 | LABEL | |
| 300 | 9506180933 | SCREW | |
| 310 | 9510646798 | FAN DISC | |
| 320 | 9603100083 | RIVET | |
| 330 | 2457200 | METAL PLATE | |
| 340 | 2450975 | TERMINAL | |
| 350 | 9505160963 | SCREW |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
