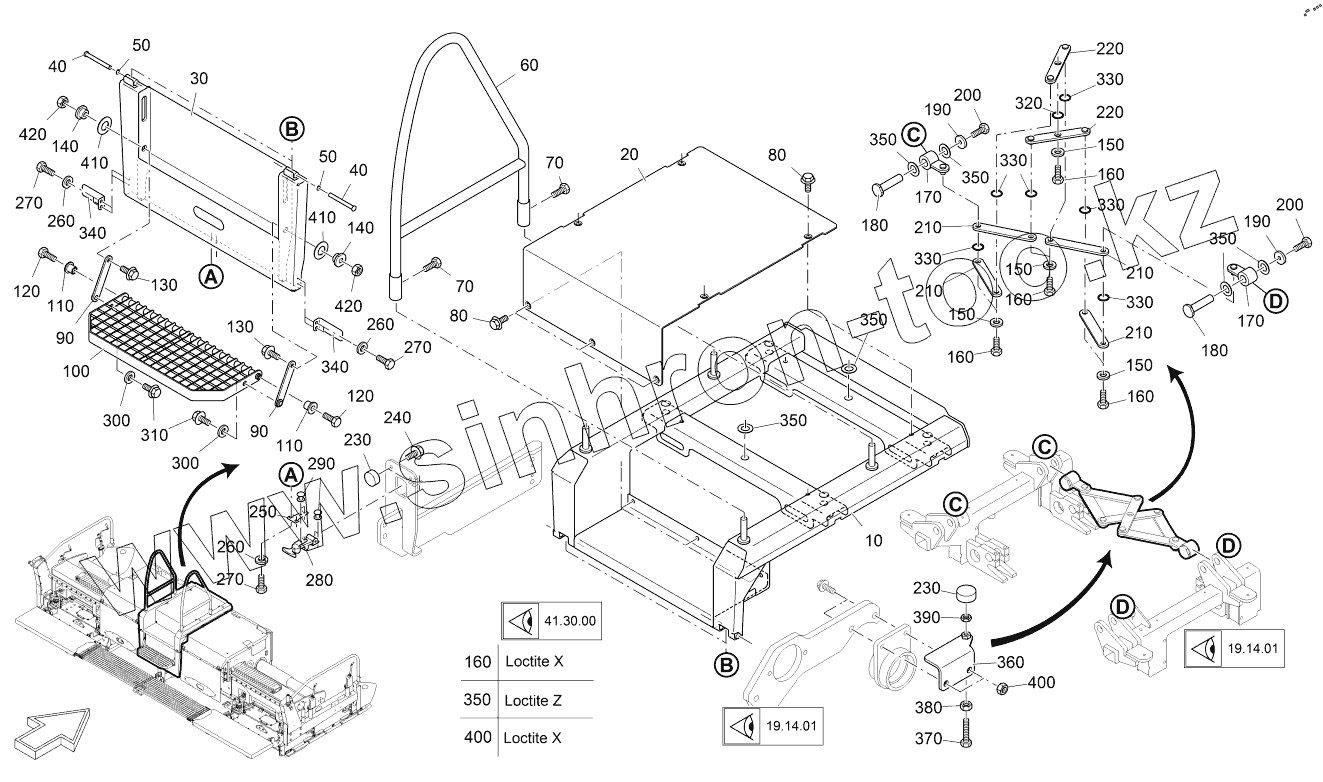

Каталог запасных частей к технике: VOGELE AB500-3 TV. ASCENT
10
20
30
40
40
50
50
60
70
70
80
80
80
80
90
90
100
110
110
120
120
130
130
130
130
140
140
150
150
150
150
160
160
160
160
160
170
170
180
180
190
190
200
200
210
210
210
210
220
220
230
230
230
230
240
250
260
260
260
260
260
260
260
260
270
270
270
270
270
270
280
290
300
300
310
320
330
330
330
330
330
340
340
350
350
350
350
350
350
350
350
350
350
350
350
350
350
360
370
380
390
400
400
410
410
420
420
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | 2234028 | METAL PLATE | |
| 20 | 2229416 | CHECKERED PLATE | |
| 30 | 2234322 | FLAP | |
| 40 | 2229493 | BOLT | |
| 50 | 9500120471 | SEEGER CIRCLIP RING | |
| 60 | 2234353 | RETAINING BRACKET | |
| 70 | 9510200933 | SCREW | |
| 80 | 2000317 | SCREW | |
| 80 | 2000317 | SCREW | |
| 90 | 2270938 | STEERING ARM | |
| 100 | 2234568 | FLAP | |
| 110 | 2236330 | BUSH | |
| 120 | 9512310933 | SCREW | |
| 130 | 2007170 | SCREW | |
| 130 | 2012088 | SCREW | |
| 140 | 2236396 | BUSH | |
| 150 | 9500090440 | WASHER | |
| 160 | 9508160933 | SCREW | |
| 170 | 2236205 | SLEEVE | |
| 180 | 2234499 | BOLT | |
| 190 | 2150468 | WASHER | |
| 200 | 9512200933 | SCREW | |
| 210 | 2236430 | STEERING BRACKET | |
| 220 | 2236411 | STEERING BRACKET | |
| 230 | 2120681 | RUBBER BUFFER | |
| 230 | 2120681 | RUBBER BUFFER | |
| 240 | 2000310 | SCREW | |
| 250 | 2240852 | METAL PLATE | |
| 260 | 9500060125 | WASHER | |
| 260 | 9500060125 | WASHER | |
| 270 | 9506100933 | SCREW | |
| 270 | 9506100933 | SCREW | |
| 280 | 4324030282 | HOOD FASTENER | |
| 290 | 9604100083 | RIVET | |
| 300 | 9510252093 | CUP SPRING | |
| 310 | 2069598 | SCREW | |
| 320 | 9615910062 | O-RING SEAL | |
| 330 | 9613930062 | O-RING SEAL | |
| 340 | 2335569 | METAL PLATE | |
| 350 | 2350655 | RUBBER | |
| 350 | 2350655 | RUBBER | |
| 360 | 2359554 | CONSOLE | |
| 370 | 9510360933 | SCREW | |
| 380 | 9500100934 | NUT | |
| 390 | 9500100439 | NUT | |
| 400 | 9500120934 | NUT | |
| 410 | 9520402093 | CUP SPRING | |
| 420 | 9500120934 | NUT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
