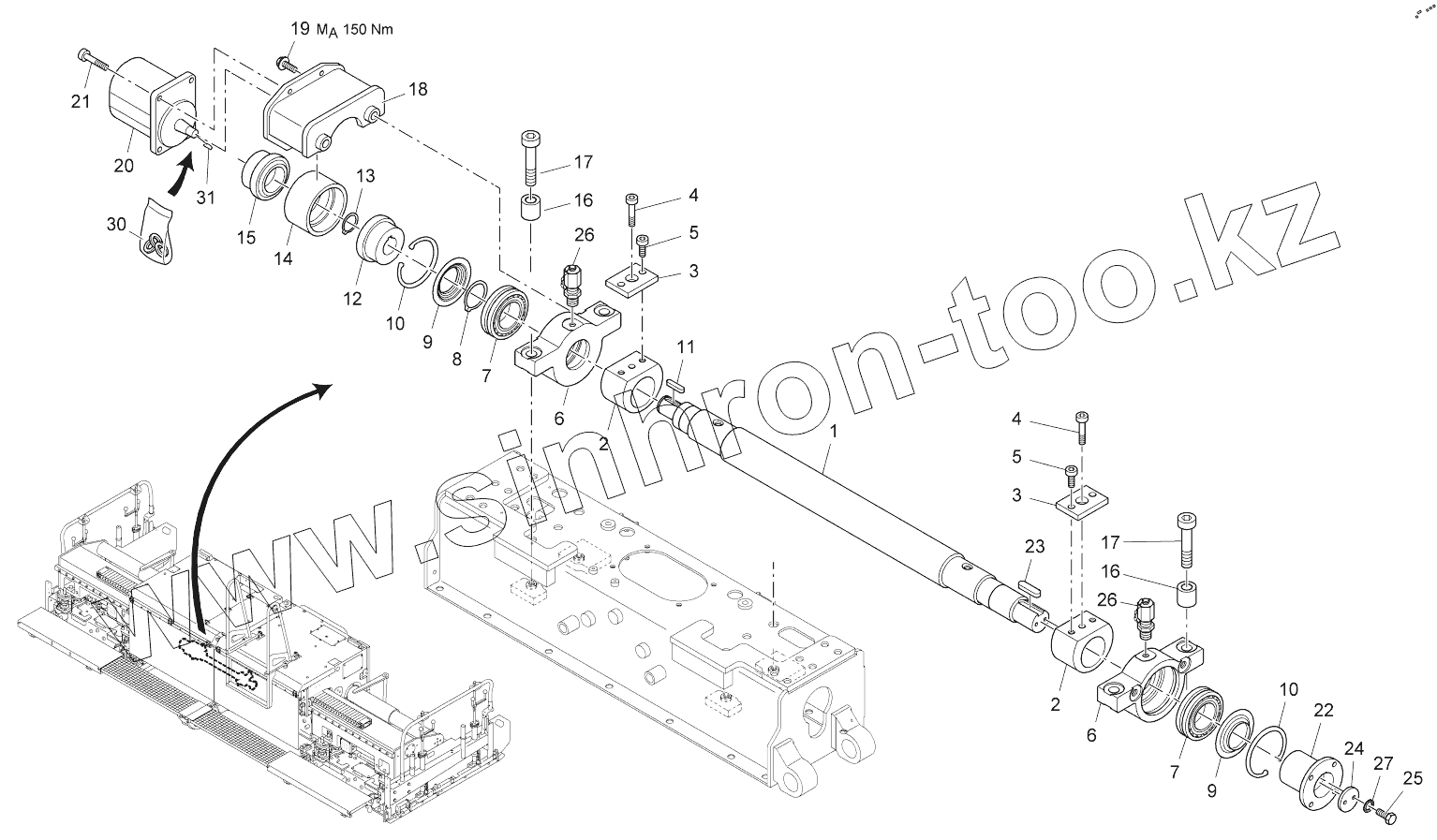

Каталог запасных частей к технике: VOGELE AB500-2 TV. VIBRATORS: BASIC SCREED, LEFT
1
2
2
3
3
4
4
5
5
6
6
7
7
8
9
9
10
10
11
12
13
14
15
16
16
17
17
18
19
20
21
22
23
24
25
26
26
27
30
31
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4622012493 | SHAFT | |
| 2 | 4605040028 | EXZENTRIC BOLT | |
| 3 | 4606504153 | FLAT STEEL | |
| 4 | 9510300912 | SCREW | |
| 5 | 9510250912 | SCREW | |
| 6 | 2034939 | BEARING HOUSING | |
| 7 | 9540100635 | SELF-ALIGNING ROLLER BEARING | |
| 8 | 9500450471 | SEEGER RING | |
| 9 | 4604132154 | COVER | |
| 10 | 9500850472 | SEEGER CIRCLIP RING | |
| 11 | 9508366885 | FEATHER KEY | |
| 12 | 4610222109 | COUPLING HUB | |
| 13 | 9500300471 | SEEGER RING | |
| 14 | 4610222108 | COUPLING SLEEVE | |
| 15 | 4610222110 | COUPLING HUB | |
| 16 | 4618042450 | WASHER | |
| 17 | 9516400912 | SCREW | |
| 18 | 2036095 | BRACKET | |
| 19 | 2000325 | SCREW | |
| 20 | 9629671000 | HYDRAULIC MOTOR | |
| 21 | 9508250912 | SCREW | |
| 22 | 4606172401 | FLANGE | |
| 23 | 9512456885 | FEATHER KEY | |
| 24 | 4618042772 | WASHER | |
| 25 | 9506200933 | SCREW | |
| 26 | 9603010057 | SCREW CONNECTION | |
| 27 | 9510646798 | FAN DISC | |
| 30 | 9629661001 | SET OF SEALS | |
| 31 | 9504066888 | DISK SPRING |
