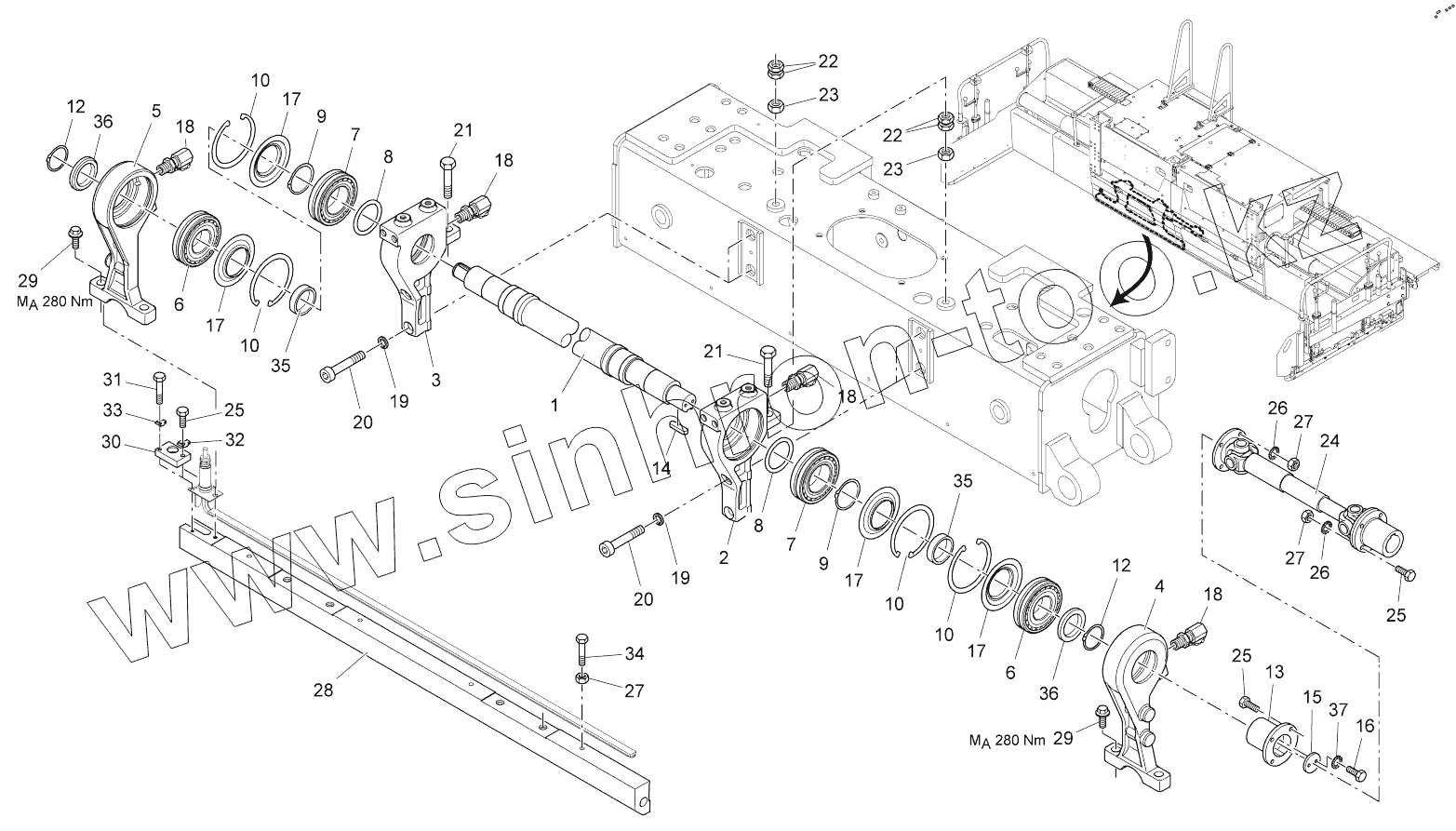

Каталог запасных частей к технике: VOGELE AB500-2 TV. TAMPER: BASIC SCREED, RIGHT
1
2
3
4
5
6
6
7
7
8
8
9
9
10
10
10
10
12
12
13
14
15
16
17
17
17
17
18
18
18
18
19
19
20
20
21
21
22
22
23
23
24
25
25
25
26
26
27
27
27
28
29
29
30
31
32
33
34
35
35
36
36
37
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2043559 | ECCENTRIC SHAFT | |
| 2 | 4611052066 | BEARING, LEFT SIDE | |
| 3 | 4611052067 | BEARING, RIGHT SIDE | |
| 4 | 4615042026 | CONNECTING ROD | |
| 5 | 4615042027 | CONNECTING ROD | |
| 6 | 9507100635 | SELF-ALIGNING ROLLER BEAR | |
| 7 | 9540120635 | SELF-ALIGNING ROLLER BEAR | |
| 8 | 9560500988 | SUPPORTING WASHER | |
| 9 | 9500600471 | SEEGER RING | |
| 10 | 9501120472 | SEEGER CIRCLIP RING | |
| 12 | 9500500471 | SEEGER RING | |
| 13 | 4606172401 | FLANGE | |
| 14 | 9512456885 | FEATHER KEY | |
| 15 | 4618042772 | WASHER | |
| 16 | 9506200933 | SCREW | |
| 17 | 4604132143 | COVER | |
| 18 | 9603010057 | SCREW CONNECTION | |
| 19 | 9500167980 | SPRING RING | |
| 20 | 9516426912 | SCREW | |
| 21 | 9516420933 | SCREW | |
| 22 | 9500160439 | NUT | |
| 23 | 9500160934 | NUT | |
| 24 | 4607180016 | CARDAN SHAFT | |
| 25 | 9508250933 | SCREW | |
| 26 | 9510846798 | SERRATED LOCK WASHER | |
| 27 | 9500080934 | NUT | |
| 28 | 2003834 | TAMPER BAR, RIGHT SIDE | |
| 29 | 9616340045 | SCREW | |
| 30 | 4608512648 | SUPPORT, RIGHT SIDE | |
| 31 | 9506250933 | SCREW | |
| 32 | 9500080093 | LOCKING SHEET | |
| 33 | 9500060093 | LOCKING PLATE | |
| 34 | 9508350933 | SCREW | |
| 35 | 4604172043 | RING | |
| 36 | 4604172044 | RING | |
| 37 | 9510646798 | FAN DISC |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
