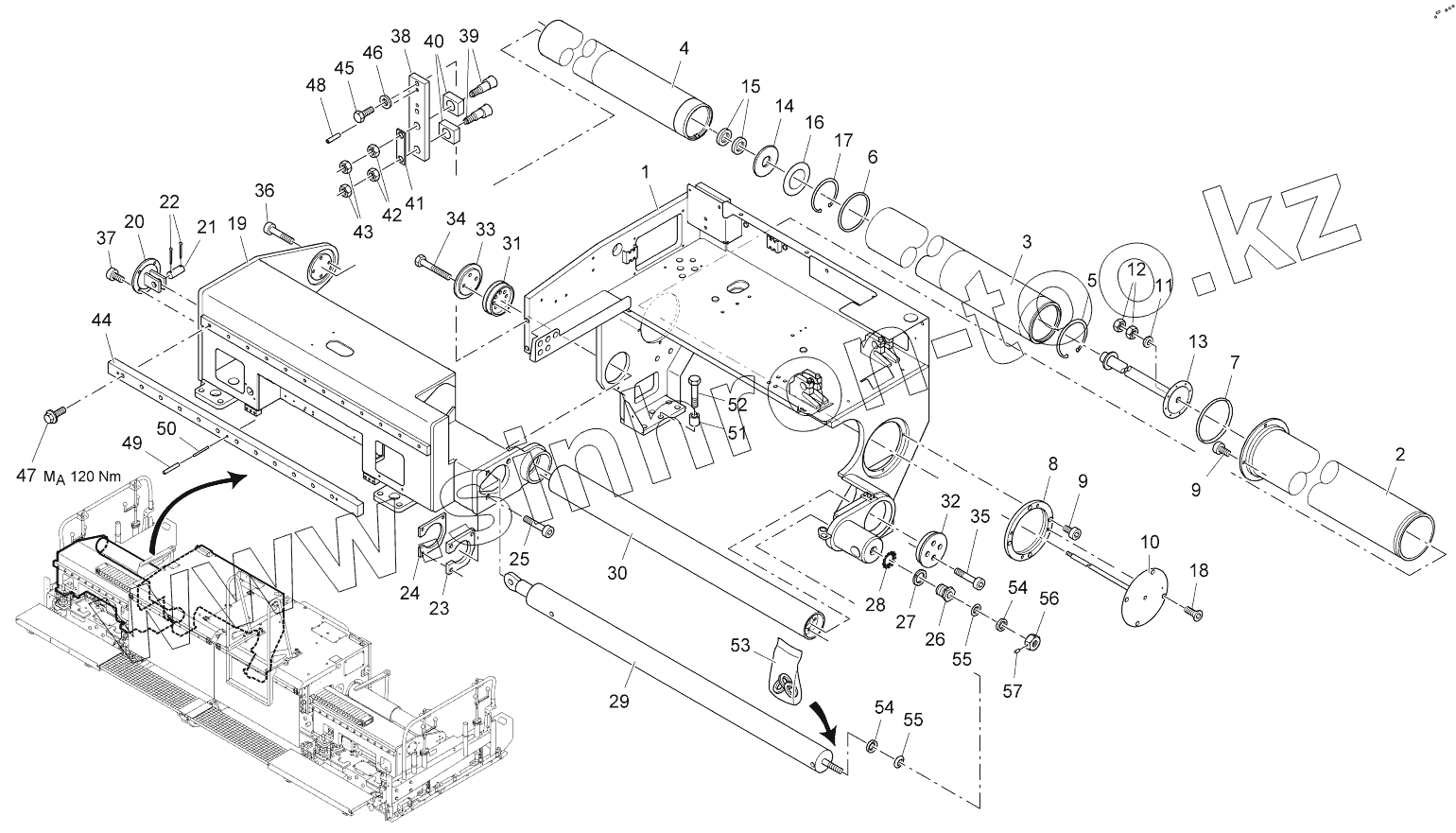

Каталог запасных частей к технике: VOGELE AB500-2 TV. SUSPENSION, LEFT SIDE, TV
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
54
55
55
56
57
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2033530 | SUSPENSION: BASIC SCREED | |
| 2 | 4617305477 | OUTER TUBE | |
| 3 | 4617303287 | INTERMEDIATE PIPE | |
| 4 | 4617303288 | INNER TUBE | |
| 5 | 9501500472 | SEEGER CIRCLIP RING | |
| 6 | 4604112068 | SCRAPER | |
| 7 | 4604112059 | SCRAPER | |
| 8 | 4606172162 | FLANGE | |
| 9 | 9510160912 | SCREW | |
| 10 | 4606123464 | GUIDANCE | |
| 11 | 4618042323 | WASHER | |
| 12 | 9500120934 | NUT | |
| 13 | 4606123465 | GUIDE TUBE | |
| 14 | 4618042361 | WASHER | |
| 15 | 9621145310 | NUT | |
| 16 | 4617212231 | RING | |
| 17 | 9501320472 | SEEGER CIRCLIP RING | |
| 18 | 9508167991 | SCREW | |
| 19 | 2034418 | SUSPENSION: LEFT SIDE | |
| 20 | 4608512730 | MOUNTING DEVICE | |
| 21 | 4602022255 | BOLT | |
| 22 | 9504310094 | SPLIT PIN | |
| 23 | 4604042020 | RUBBER PLATE | |
| 24 | 4602422633 | METAL PLATE | |
| 25 | 9512327984 | SCREW | |
| 26 | 4612032120 | NUT | |
| 27 | 9620070203 | GROOVE NUT | |
| 28 | 9600070202 | LOCKING PLATE | |
| 29 | 2121209 | HYDRAULIC CYLINDER | |
| 29 | 2026700 | HYDRAULIC CYLINDER | |
| 30 | 4617305481 | GUIDE TUBE | |
| 31 | 4604132619 | BEARING CAP | |
| 32 | 4604132620 | BEARING CAP | |
| 33 | 4618042802 | WASHER | |
| 34 | 9512407984 | SCREW | |
| 35 | 9512350912 | SCREW | |
| 36 | 9510340912 | SCREW | |
| 37 | 9510167984 | SCREW | |
| 38 | 4608512981 | SUPPORT | |
| 39 | 4602012123 | ECCENTRIC BOLT | |
| 40 | 4607252008 | SLIDE BLOCK | |
| 41 | 4602426360 | METAL PLATE | |
| 42 | 9520240934 | NUT | |
| 43 | 9520240439 | NUT | |
| 44 | 2009647 | GUIDE RAIL | |
| 45 | 9516350931 | SCREW | |
| 46 | 9550170125 | DISC | |
| 47 | 9612330045 | SCREW | |
| 48 | 9512341481 | TENSIONER PIN | |
| 49 | 9508341481 | TENSIONER PIN | |
| 50 | 9505341481 | TENSIONER PIN | |
| 51 | 4618042450 | WASHER | |
| 52 | 9516400931 | SCREW | |
| 53 | 2029111 | SET OF SEALS | |
| 54 | 9540236319 | CONICAL SOCKET | |
| 55 | 9530216319 | SPHERICAL WASHER | |
| 56 | 4612032269 | NUT | |
| 57 | 9506120914 | THREADED PIN |
