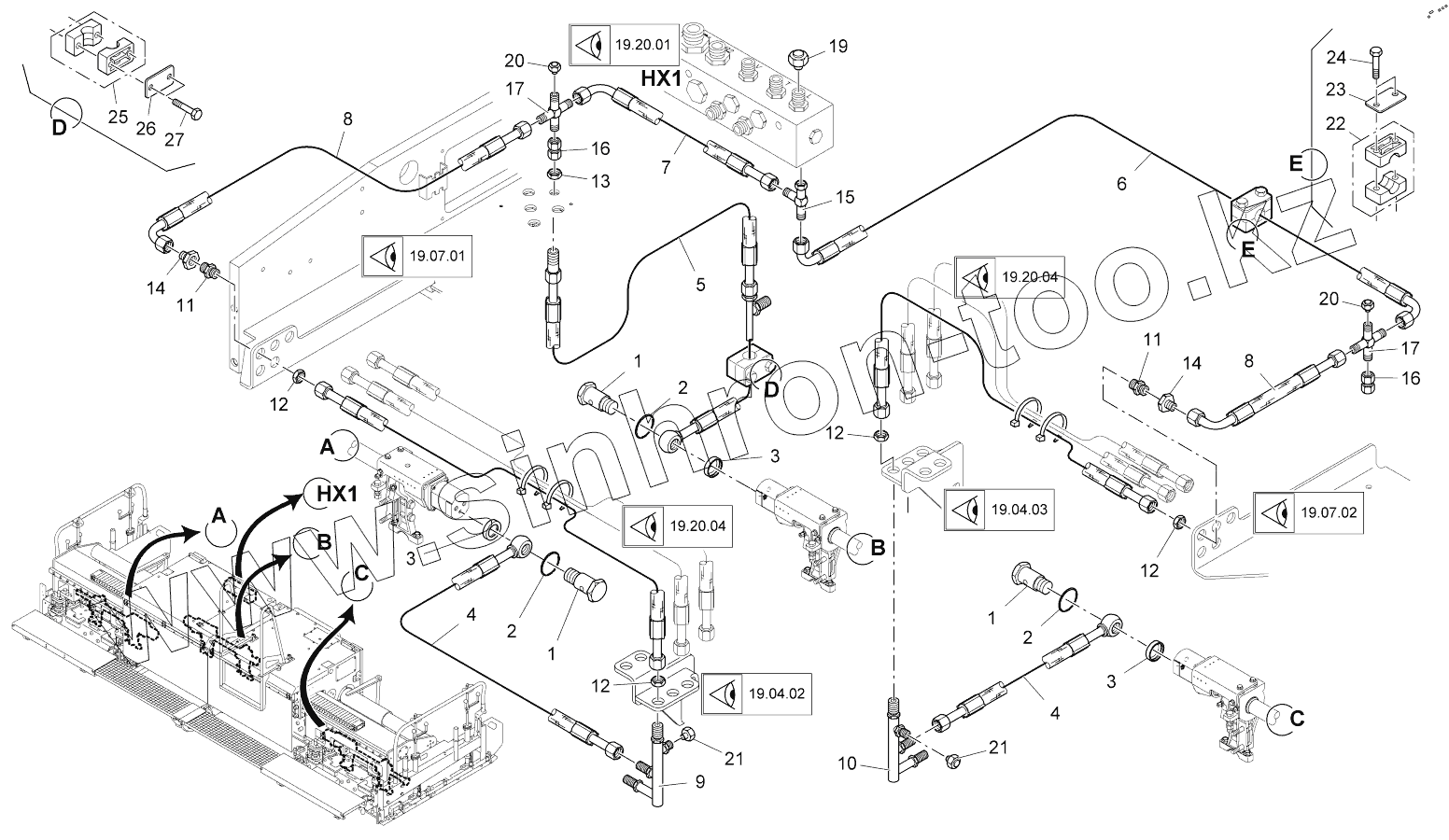

Каталог запасных частей к технике: VOGELE AB500-2 TV. LEAKAGE OIL: TAMPER TV
1
1
1
2
2
2
3
3
3
4
4
5
6
7
8
8
9
10
11
11
12
12
12
12
13
14
14
15
16
16
17
17
19
20
20
21
21
22
23
24
25
26
27
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 9512047643 | SCREW | |
| 2 | 9516317603 | SEAL RING | |
| 3 | 9694690058 | SEALING RING | |
| 4 | 4601200011 | PIPEWORK/HOSES: TAMPER | |
| 5 | 2034600 | PIPEWORK/HOSES: TAMPER | |
| 6 | 2035683 | FLEXIBLE TUBING | |
| 7 | 2035681 | FLEXIBLE TUBING | |
| 8 | 3430021085 | HOSE | |
| 9 | 4601200008 | LEAKAGE OIL PIPE | |
| 10 | 4601200007 | LEAKAGE OIL PIPE | |
| 11 | 9521503910 | SCREW CONNECTION | |
| 12 | 9630220010 | NUT | |
| 13 | 9630180010 | NUT | |
| 14 | 9618340060 | SCREW | |
| 15 | 9629120057 | SCREW CONNECTION | |
| 16 | 9601120057 | SCREWED JOINT | |
| 17 | 9521203951 | SCREWED JOINT | |
| 19 | 9638070057 | FILLER CAP | |
| 20 | 9638040057 | FILLER CAP | |
| 21 | 9638020057 | FILLER CAP | |
| 22 | 9650180185 | PAIR OF CLAMPING HALVES | |
| 23 | 9680020185 | TOP COVER | |
| 24 | 9506330933 | SCREW | |
| 25 | 9650120185 | CLAMPING HALF PAIR | |
| 26 | 9680010185 | TOP COVER | |
| 27 | 9506320933 | SCREW |
