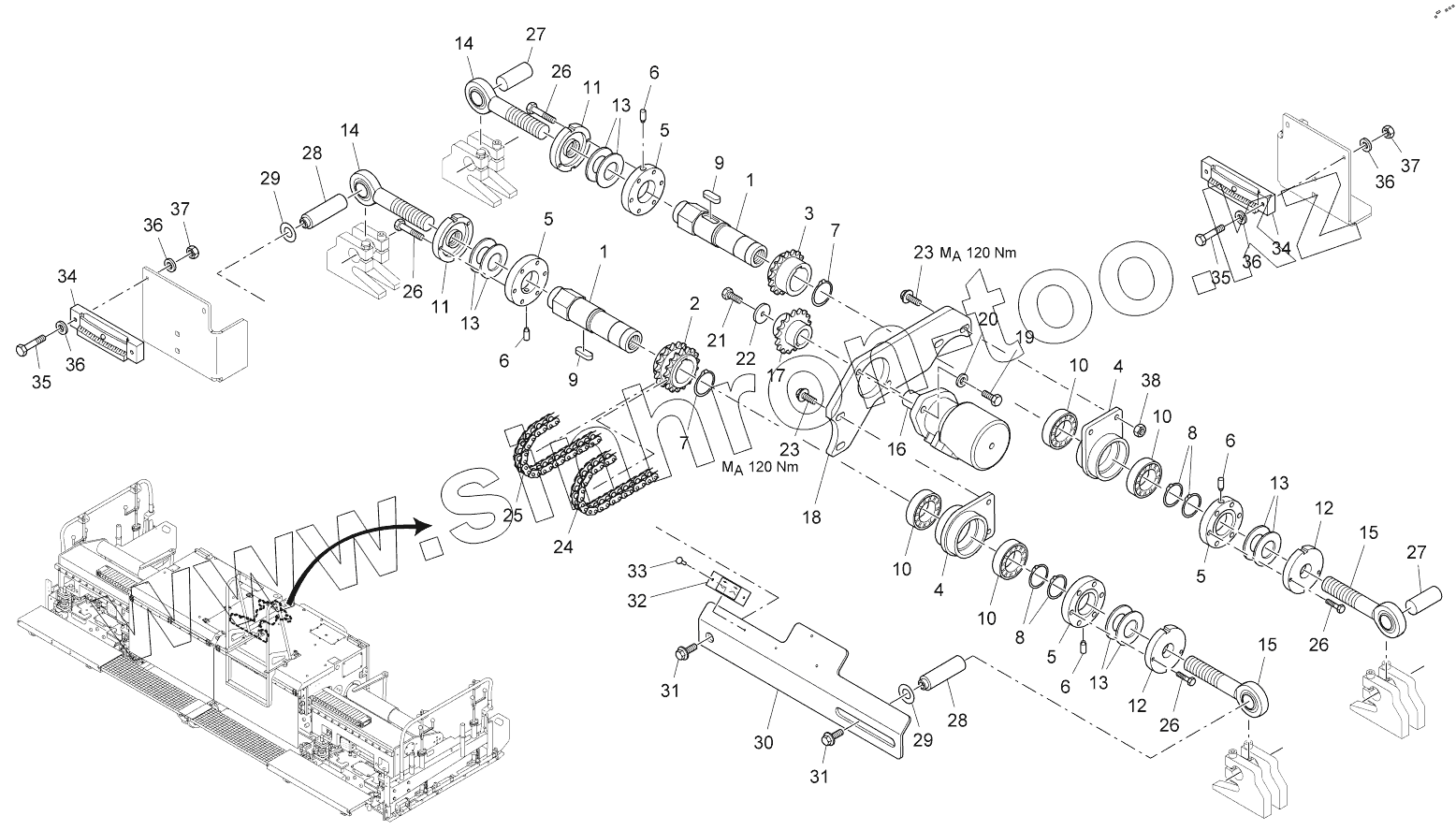

Каталог запасных частей к технике: VOGELE AB500-2 TV. HYDRAULIC CROWN ADJUSTMENT
1
1
2
3
4
4
5
5
5
5
6
6
6
6
7
7
8
8
9
9
10
10
10
10
11
11
12
12
13
13
13
13
14
14
15
15
16
17
18
19
20
21
22
23
23
24
25
26
26
26
26
27
27
28
28
29
29
30
31
31
32
33
34
34
35
35
36
36
36
36
37
37
38
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4612032257 | NUT | |
| 2 | 4610062252 | CHAIN WHEEL | |
| 3 | 4610062253 | CHAIN WHEEL | |
| 4 | 4611072013 | BEARING | |
| 5 | 4618042808 | WASHER | |
| 6 | 9510250915 | THREADED PIN | |
| 7 | 9500480471 | SEEGER CIRCLIP RING | |
| 8 | 9500450471 | SEEGER RING | |
| 9 | 9514406885 | FEATHER KEY | |
| 10 | 9508090625 | BALL BEARING | |
| 11 | 4612052001 | GROOVE NUT | |
| 12 | 4612052003 | GROOVE NUT | |
| 13 | 9510712093 | CUP SPRING | |
| 14 | 4607132057 | ARTICULATED HEAD | |
| 15 | 4607132058 | ARTICULATED HEAD | |
| 16 | 2026607 | HYDRAULIC MOTOR | |
| 17 | 2026594 | CHAIN WHEEL | |
| 18 | 2034265 | METAL PLATE | |
| 19 | 9512310933 | SCREW | |
| 20 | 9500130125 | WASHER | |
| 21 | 9508200933 | SCREW | |
| 22 | 4618042810 | WASHER | |
| 23 | 9612310045 | SCREW | |
| 24 | 2037533 | ROLLER CHAIN | |
| 25 | 3301040065 | ROLLER CHAIN | |
| 26 | 9508310933 | SCREW | |
| 27 | 4602022041 | BOLT | |
| 28 | 4602022617 | BOLT | |
| 29 | 9520402093 | CUP SPRING | |
| 30 | 4602426906 | METAL PLATE | |
| 31 | 9212256921 | SCREW | |
| 32 | 2008894 | STICKER | |
| 33 | 9603100083 | RIVET | |
| 34 | 4924220255 | SPIRIT LEVEL | |
| 35 | 9506320933 | SCREW | |
| 36 | 9500060125 | WASHER | |
| 37 | 9500060934 | NUT | |
| 38 | 9500120934 | NUT |
