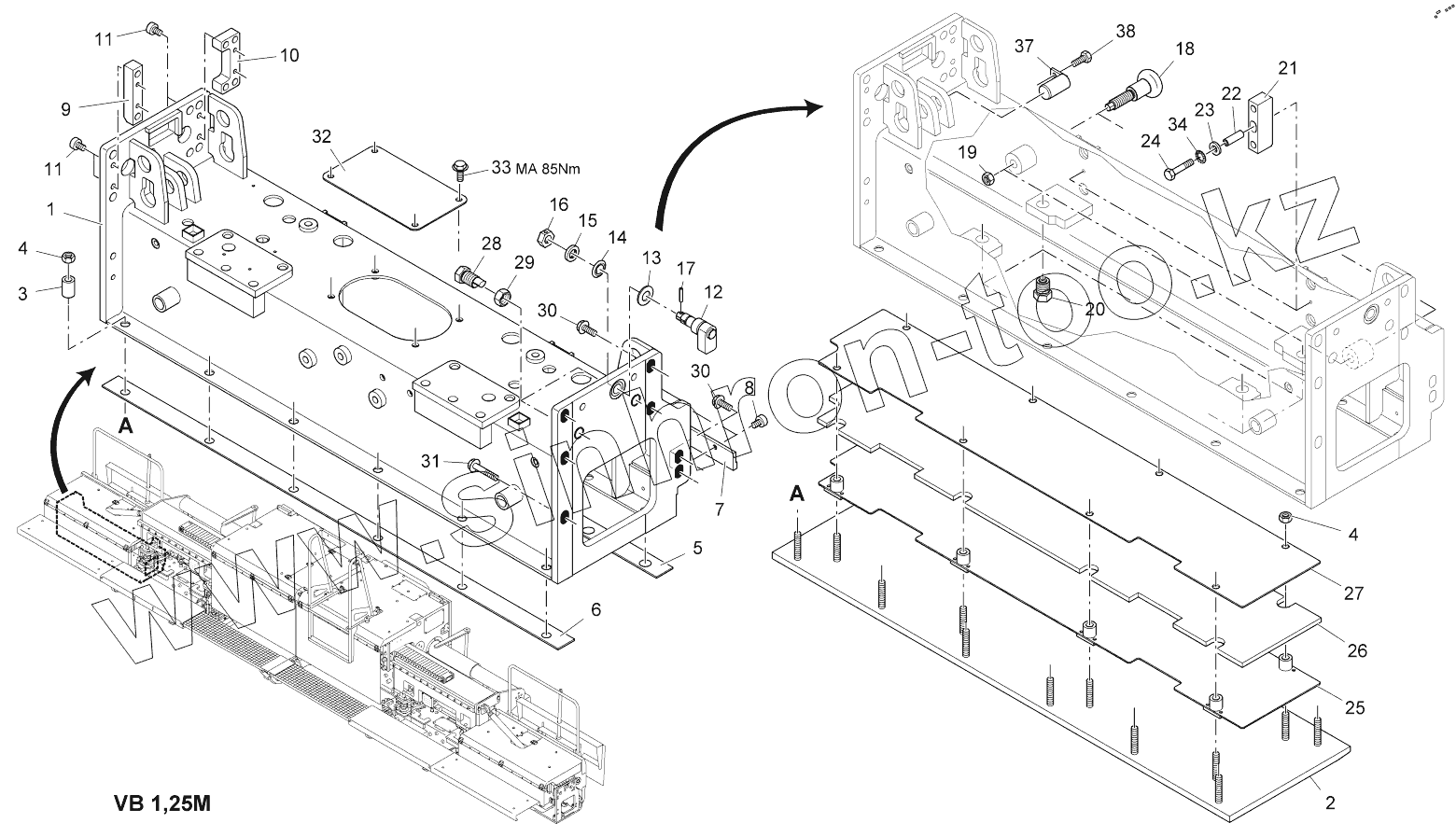

Каталог запасных частей к технике: VOGELE AB500-2 TV. FRAME, LEFT SIDE
1
2
3
4
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
31
32
33
34
37
38
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2037889 | FRAME, LEFT SIDE | |
| 2 | 2043248 | SCREED PLATE | |
| 3 | 4608112101 | SLEEVE | |
| 4 | 9610120095 | NUT | |
| 5 | 2043360 | INSULATING PLATE | |
| 6 | 4615032864 | INSULATING PLATE | |
| 7 | 4611353711 | WEARING BAR | |
| 8 | 9508127984 | SCREW | |
| 9 | 4615106680 | SQUARE STEEL | |
| 10 | 2036330 | METAL PLATE | |
| 11 | 9510207984 | SCREW | |
| 12 | 2037783 | SUPPORT, LEFT SIDE | |
| 13 | 9520402093 | CUP SPRING | |
| 14 | 9600040202 | LOCKING PLATE | |
| 15 | 9620040203 | GROOVE NUT | |
| 16 | 2037788 | METAL PLATE | |
| 17 | 9506301481 | TENSIONER PIN | |
| 18 | 4618242234 | SCREW | |
| 19 | 9500200934 | NUT | |
| 20 | 2035942 | SCREW | |
| 21 | 4606504127 | FLAT STEEL | |
| 22 | 4602202223 | BUSHING | |
| 23 | 9500090440 | WASHER | |
| 24 | 9508350931 | SCREW | |
| 25 | 2036852 | PLATE, LEFT SIDE | |
| 26 | 2036854 | INSULATION PLATE | |
| 27 | 2036850 | METAL PLATE | |
| 28 | 4618242236 | SCREW | |
| 29 | 4612032172 | NUT | |
| 30 | 9216366921 | SCREW | |
| 31 | 9216326921 | SCREW | |
| 32 | 2042594 | METAL PLATE | |
| 33 | 2000310 | SCREW | |
| 34 | 9510846798 | SERRATED LOCK WASHER | |
| 37 | 4602022061 | BOLT | |
| 38 | 9508200933 | SCREW |
