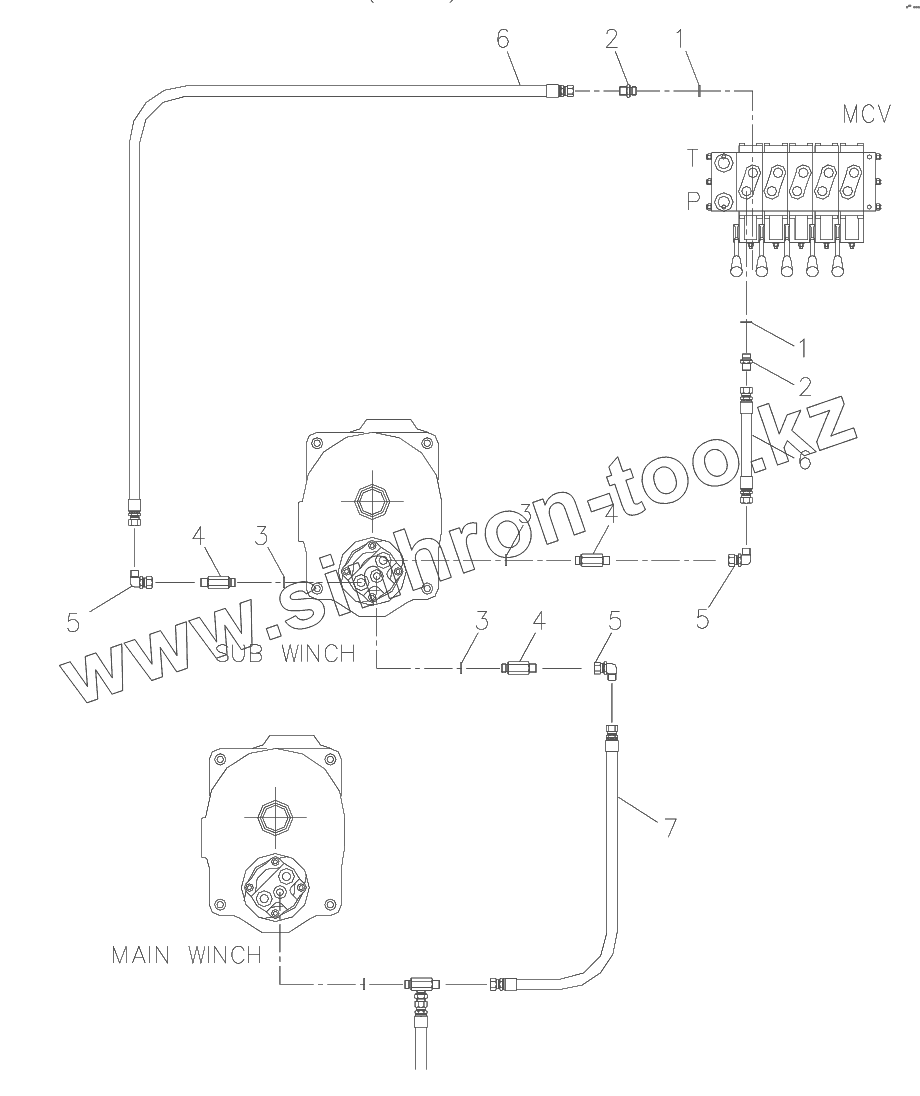

SUB WINCH PIPING (REVISED JULY 2004)
Каталог запасных частей к технике: Soosan SCS746L. SUB WINCH PIPING (REVISED JULY 2004)
